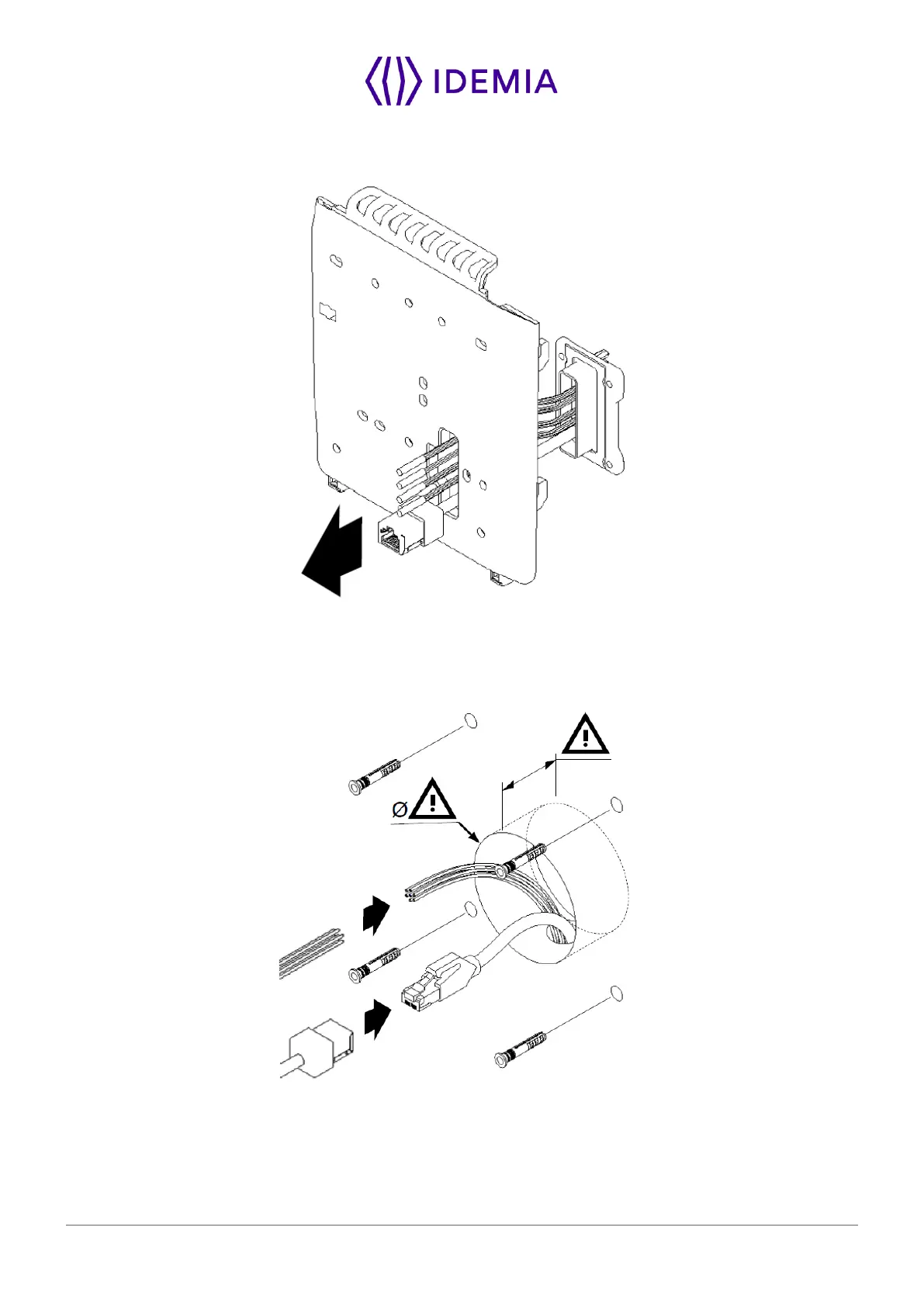

Fit the cables through the mounting plate:
Figure 11: Connection - Step 2
Then connect the cables:
Figure 12: Drilling template and cable connection
Before cabling the product, remove the connector by cutting cables in the middle of heat shrink tube.
Please refer to section 4 / for explanations of how cables/wires should be connected, according to wire
color code.
