Installation, Support, and Maintenance Guide 43
Evolution X7 Satellite Router
4. 1. Wrap the cable tie around the wires, and
tighten.
2. Insert the “three screw end” of the
terminal block plug into the half of the
strain relief clip. Be sure the two end
screw holes fit securely into the two
small protruding screw holders.
5. 1. Clip the other half of the strain relief clip
around the cable entry housing and
tighten the cable tie.
2. Insert the finished terminal block plug,
with the cable entry housing, into the
terminal block header in the power
supply.

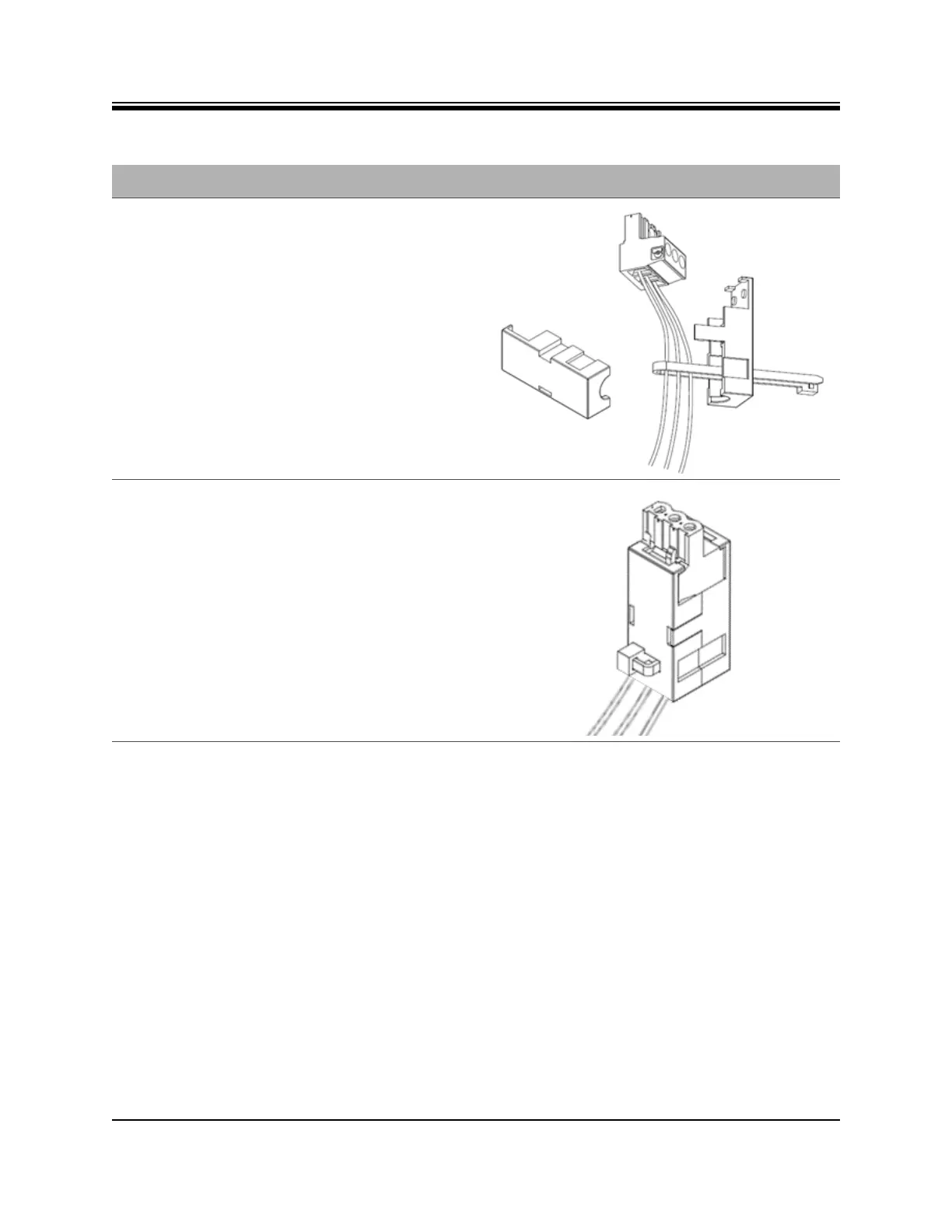

Table E-2. Power Module Power Cable Installation Instructions Detail
Step Instructions Diagram
