DM-F Series Monitor
Page 27
3.2.6 DisplayPort Connector (F12A ~ F24A Only)
The DisplayPort connector transmits a digital signal to compatible DisplayPort display
devices such as a TV or computer screen.
PIN DESCRIPTION PIN DESCRIPTION
1 ML_L3N 2 GND
3 ML_L3P 4 ML_L2N
5 GND 6 ML_L2P
7 ML_L1N 8 GND
9 ML_L1P 10 ML_L0N
11 GND 12 ML_L0P
13 GND 14 GND
15 C_DDI0_DP_AUXP 16 GND
17 C_DDI0_DP_AUXN 18 C_DDI0_DP_HPD
19 GND 20 VCC
21 GND 22 GND
23 GND 24 GND
Table 3-4: Display Port Connector Pinouts

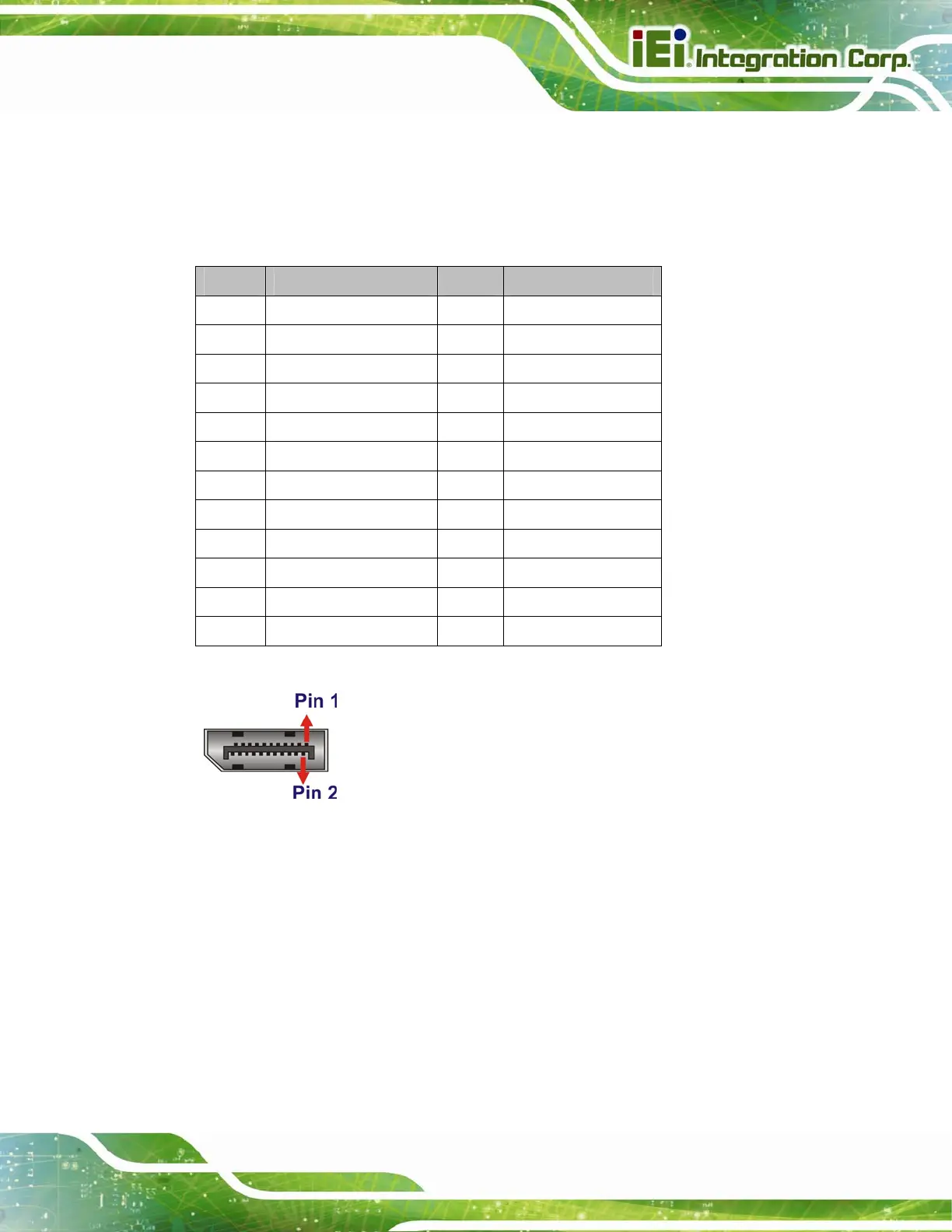

Figure 3-6: DisplayPort connector
