DM-F Series Monitor
Page 47
To mount the DM-F series LCD monitor onto a stand, please follow the steps below.
Step 1: Line up the threaded holes on the monitor rear panel with the screw holes on the
monitor stand mounting plate.
Step 2: Secure the monitor to the stand with the supplied retention screws (
5Figure 3-42).

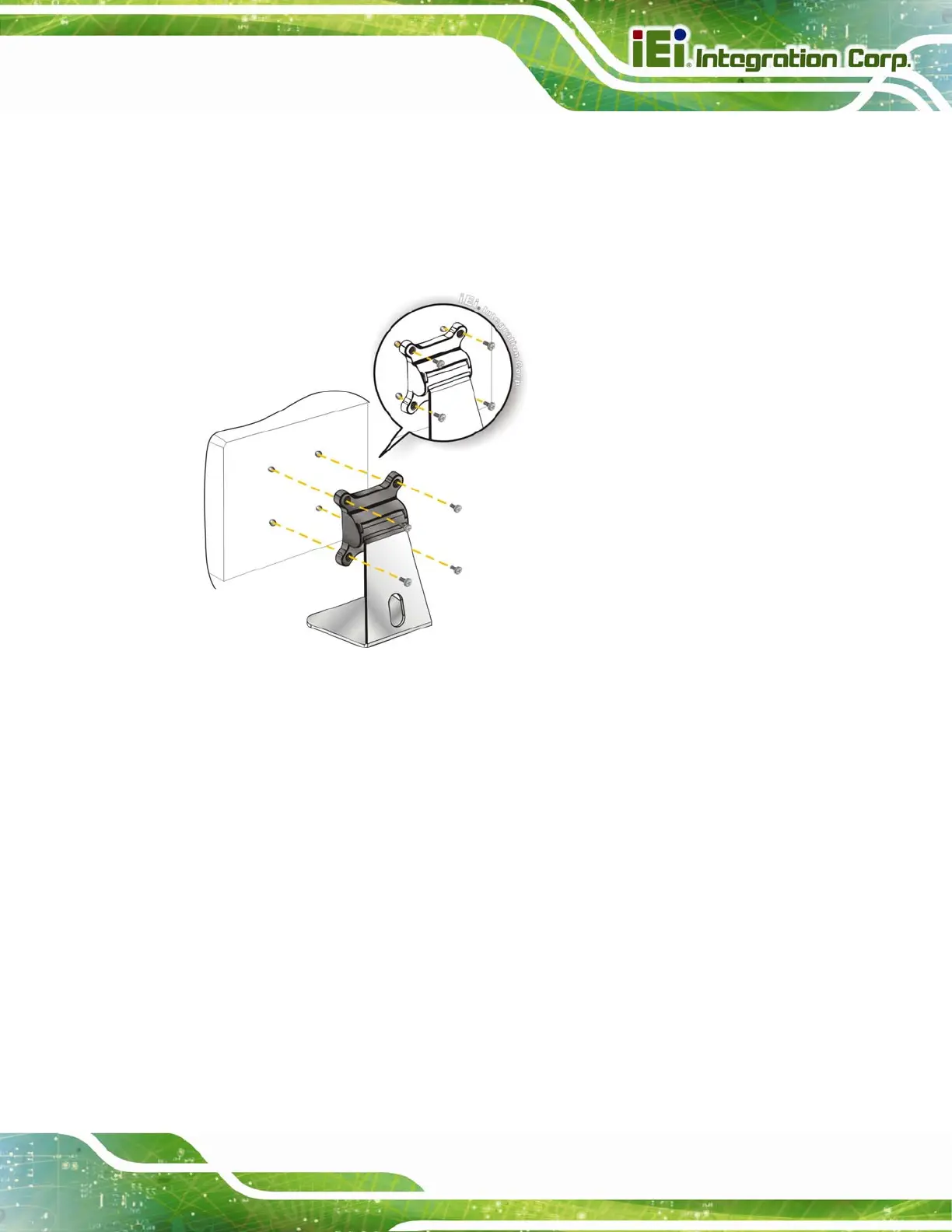

Figure 3-42: Monitor Stand Mounting
3.3.6 Arm Installation
The DM-F series LCD monitor has VESA standard mounting holes tapped into the rear
panel. The standard holes are M4 set at 75 mm x 75 mm or 100 mm x 100 mm apart
(Figure 3-40 and Figure 3-41). To mount the DM-F series
LCD monitor onto a monitor arm,
please follow the steps below.
Step 1: Line up the threaded holes on the monitor rear panel with the screw holes on the
monitor arm mounting plate.
Step 2: Secure the monitor to the arm with the supplied retention screws (Figure 3-43).
Step 0:
