DM-F Series Monitor
Page 69
6.1 AD Board Overview
The DM series LCD monitor AD board provides a wide variety of control interfaces. There
are two AD boards used for the DM series monitors: AV-6038 and AV-60381. Refer to
5Table 1-2 for a listing of DM series monitors and their associated AD board. The following
sections describe each AD board in detail.
6.2 AV-6038 AD Board
The connector locations of the AV-6038 are shown in Figure 6-1. The Pin 1 locations of
the on-board connectors are also indicated in the diagrams below. The connector pinouts
for these connectors are listed in the following sections.

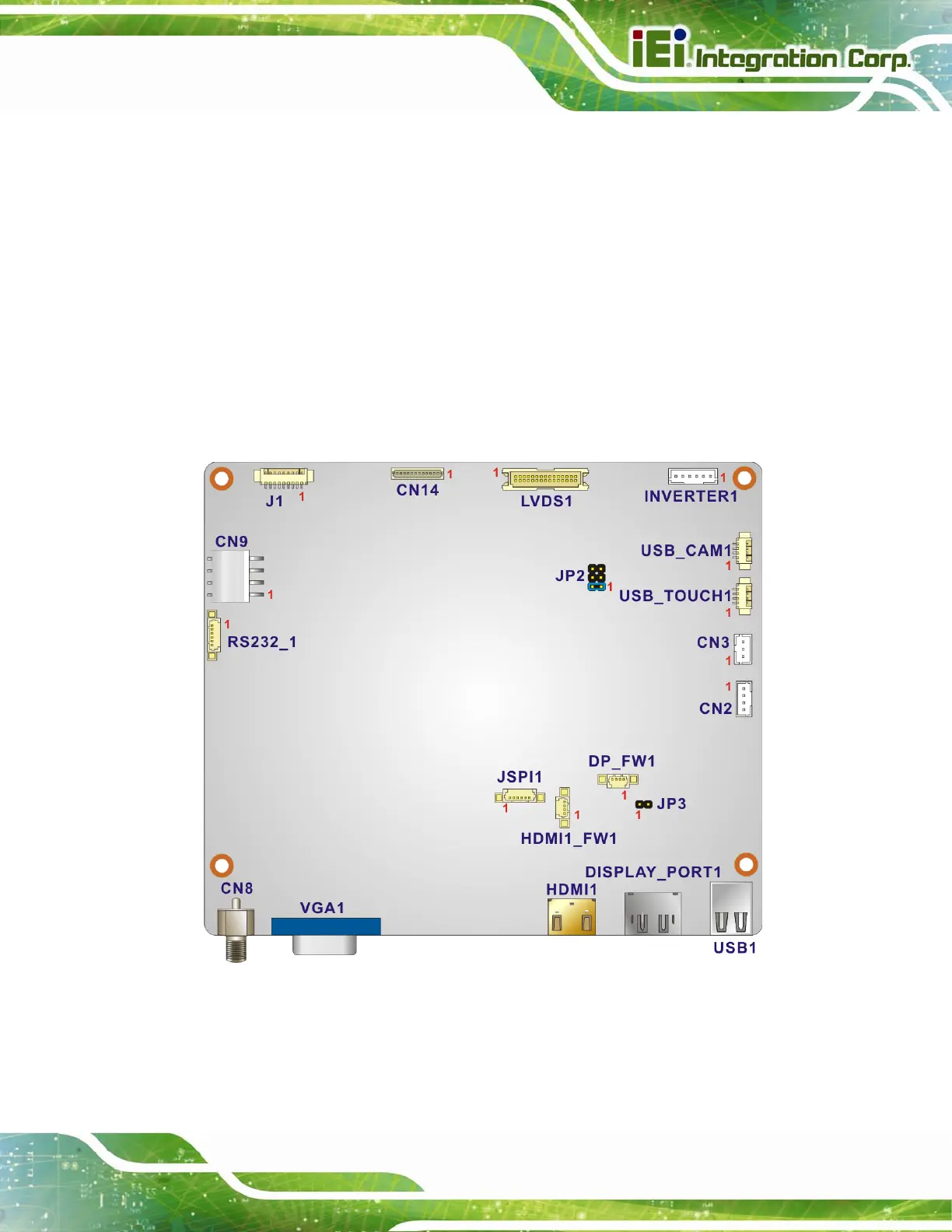

Figure 6-1: AV-6038 AD Board Layout Diagram
