DM-F Series Monitor
Page 39
3.3.2 Cabinet and Rack Installation (for F65A ~ F17A)
NOTE:
When purchasing a cabinet/rack installation bracket, make sure it is
compatible with both the monitor and the cabinet/rack into which the
monitor is installed.
The DM-F series LCD monitor can be installed into a cabinet or rack. The installation
procedures are similar to the panel mounting installation. To do this, please follow the
steps below:
Step 1: Secure the mounting clamps holders to the corresponding holes on the rear of
the monitor (Figure 3-30).
NOTE:
It is not required to install the clamp holders to the DM-F65A and
DM-F08A monitors for panel/rack mounting. After sliding the monitor
through the panel, simply insert the panel mounting clamps into the
pre-formed holes along the top, side and bottom panels of the
monitors.

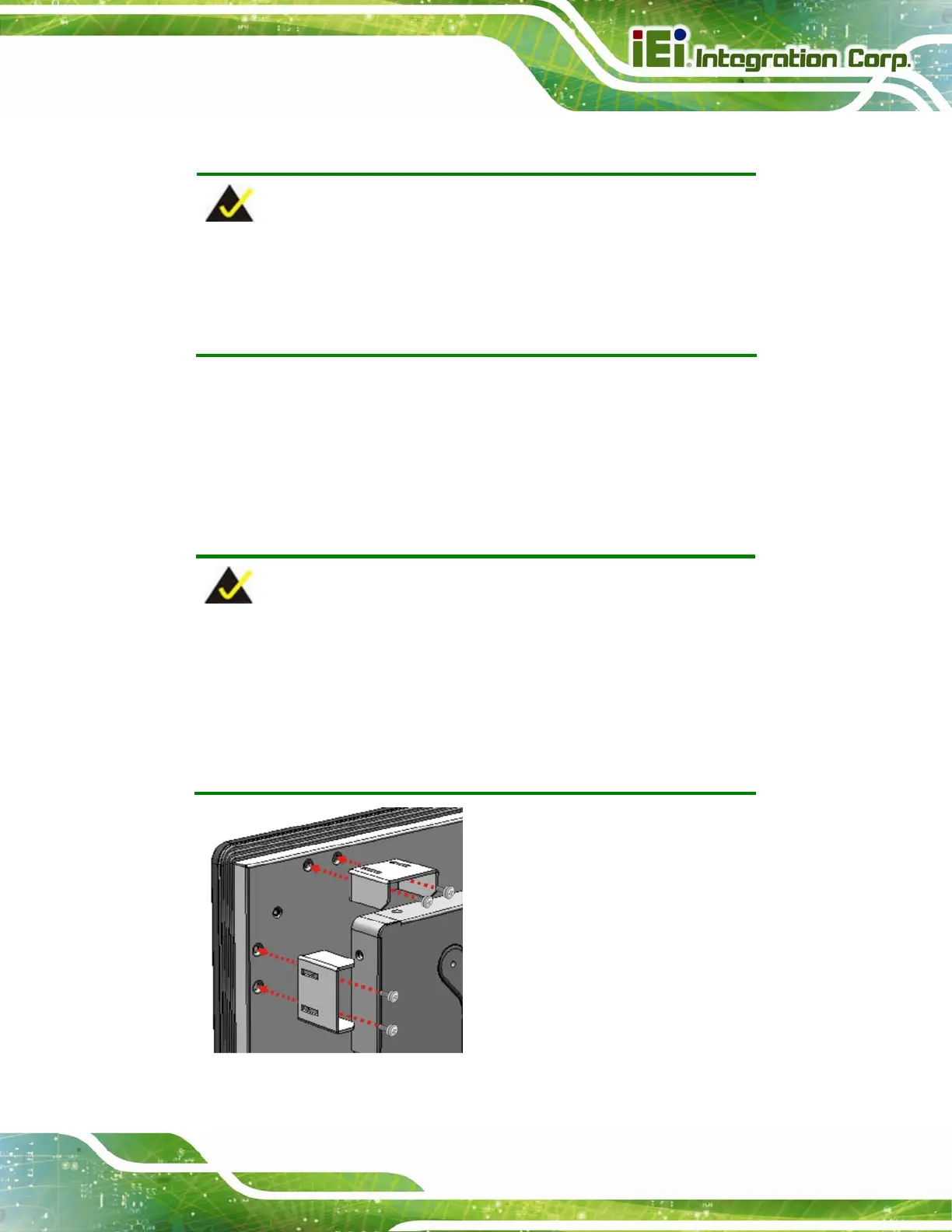

Figure 3-30: Secure the Mounting Clamp Holders
