PWM1000
8060
Unit type = function block (FB)
Unit is contained in the library ifm_CR0403_Vxxyyzz.LIB

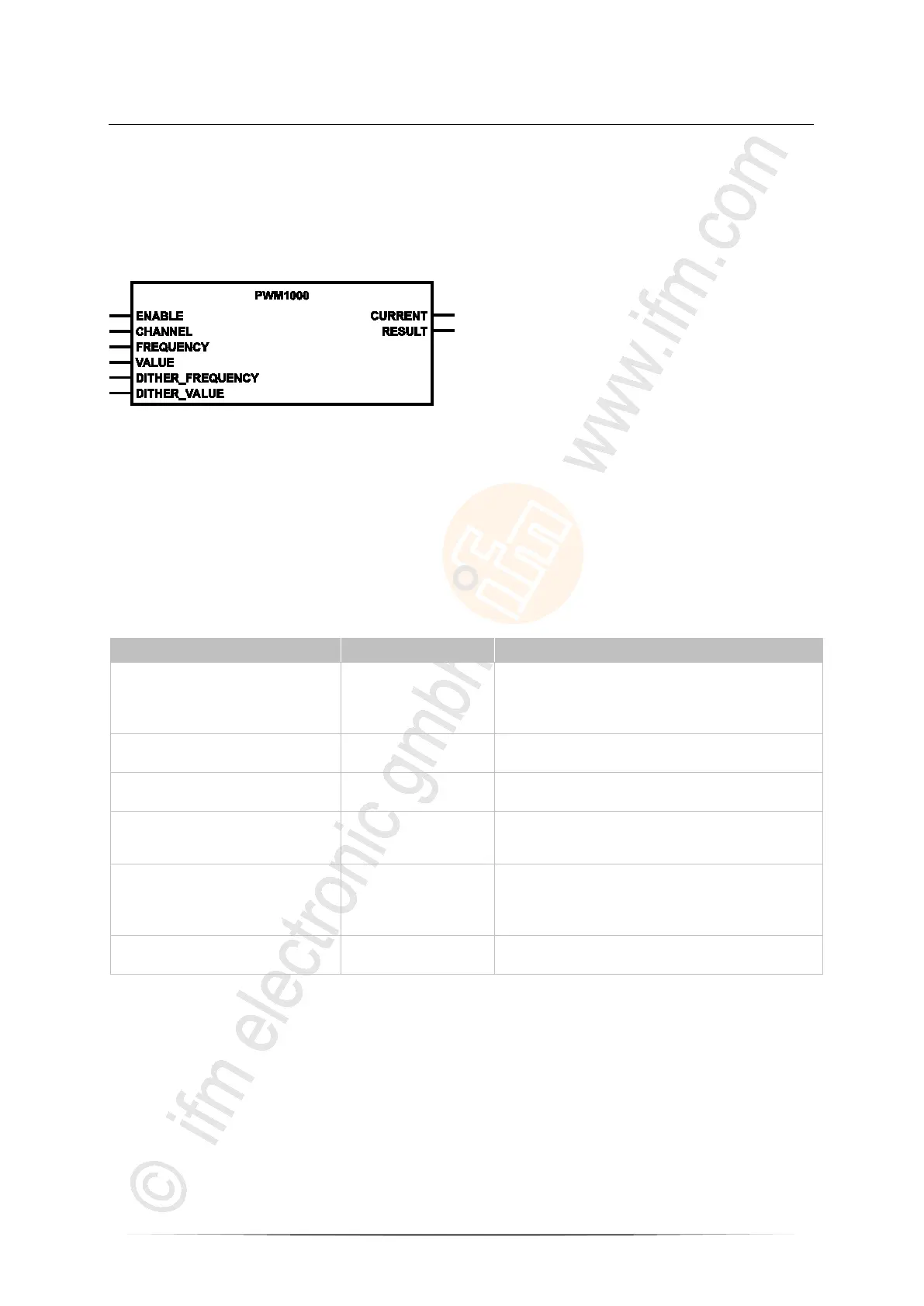

Symbol in CODESYS:
>
Description
8062
PWM1000 handles the initialisation and parameter setting of the PWM outputs.
The FB enables a simple use of the PWM FB in the device. For each channel an own PWM frequency,
the mark-to-space ratio and the dither can be set.
The PWM frequency FREQUENCY can be directly indicated in [Hz] and the mark-to-space ratio
VALUE in steps of 1 ‰.
>
Parameters of the inputs
17873
ENABLE BOOL TRUE: execute this function element
FALSE: unit is not executed
> initiated processes continue in the background
> FB outputs are not updated
CHANNEL BYTE Number of the PWM output channel (0...11)
0...11 for the outputs OUT0...OUT11
FREQUENCY WORD PWM frequency in [Hz]
allowed = 20...250 = 0x0014...0x00FA
VALUE WORD PWM value (mark-to-space ratio) in [‰]
allowed = 0...1 000 = 0x0000...0x03E8
Values > 1 000 are regarded as = 1 000
DITHER_FREQUENCY WORD dither frequency in [Hz]
value range = 0...FREQUENCY / 2
FREQUENCY / DITHER_FREQUENCY must be even-numbered!
The FB increases all other values to the next matching value.
DITHER_VALUE WORD peak-to-peak value of the dither in [‰]
permissible values = 0...1 000 = 0000...03E8
