12
Installation6
Installation location / environment6.1
Vertical installation from the top is preferred�•
Unit with single probe6.1.1
Forasafefunction,theunitrequiresalaunchingplate(→6.4).•
For optimum operation the unit should be installed as near as possible to •
the tank wall� Distance between the rod and the tank wall: minimum 40 mm,
maximum 300 mm�

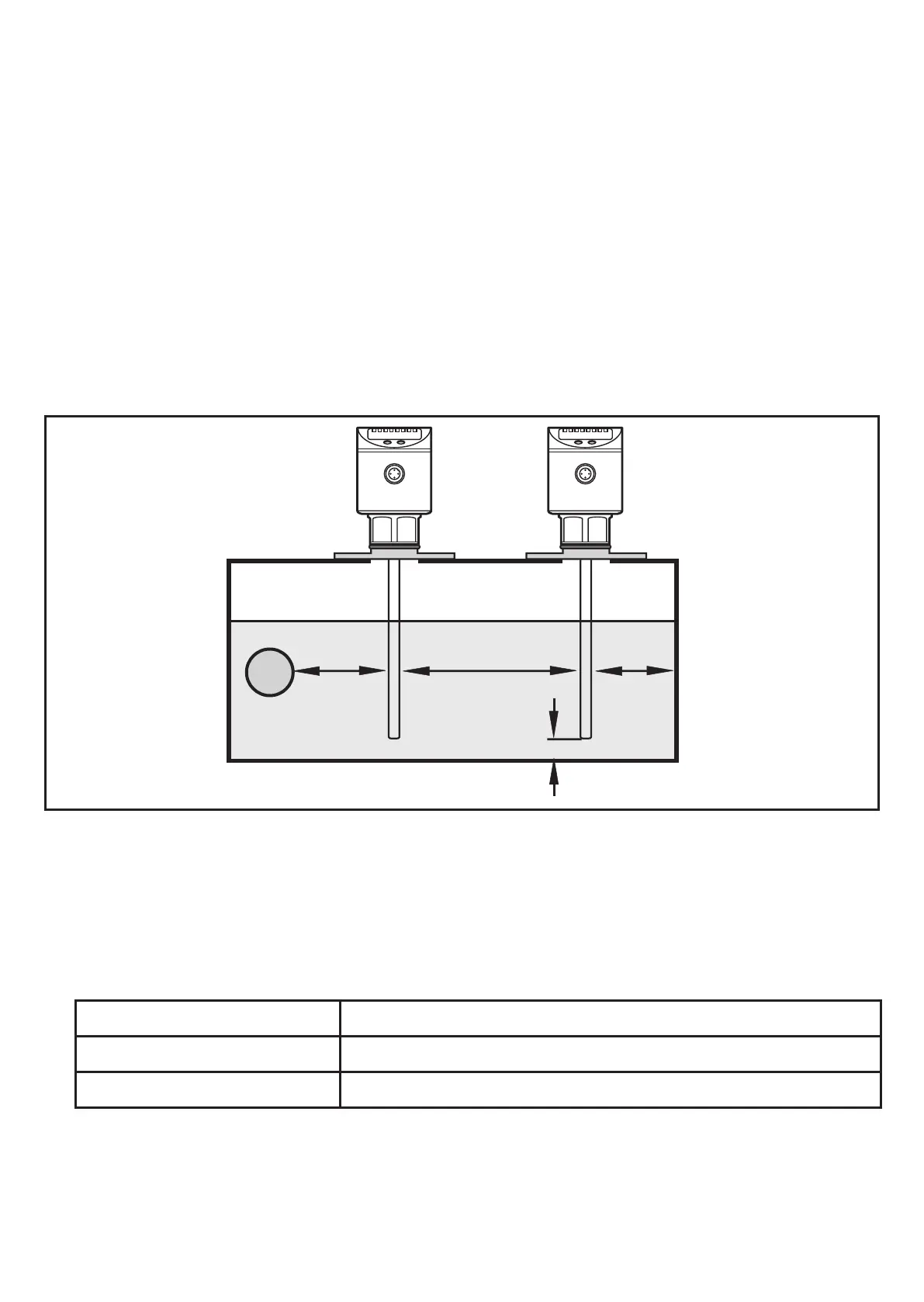

The following minimum distances between the rod and tank walls, objects in •
the tank (B), tank bottom and other level sensors must be adhered to:
For tank walls which are not straight, steps, supports or other structures in the •
tank a distance of 50 mm to the tank wall must be adhered to�
For rod lengths > 70 cm the rod can be considerably deflected by movement of •
the medium� To avoid contacting the tank wall or other structures in the tank in
such cases, the minimum distances should be increased� Reference values:
Rod length Distance to the tank wall or structures in the tank
70���100 cm 100 mm
100���160 cm 180 mm
If the medium is strongly polluted, there is the risk that a bridge forms between •
the rod and the tank wall or structures in the tank� To avoid incorrect meas-
urements: adhere to increased minimum distances depending on type and
intensity of the soiling�
