IFM IO-Link master-PROFINET AL1102 - IO-Link Ports

IO-Link Master with PROFINET Interface StandardLine 8 Ports IP 65 / IP 66 / IP 67
15
>
6.3 IO-Link ports
51958
The IO-Link ports of the AL1102 meet the requirements of the IO-Link specifications 1.0 to 1.1.2.
► Please note the information concerning IO-Link wiring!
► Cover unused sockets with M12 protective caps (art. no.: E73004).
 Tightening torque 0.6...0.8 Nm
>

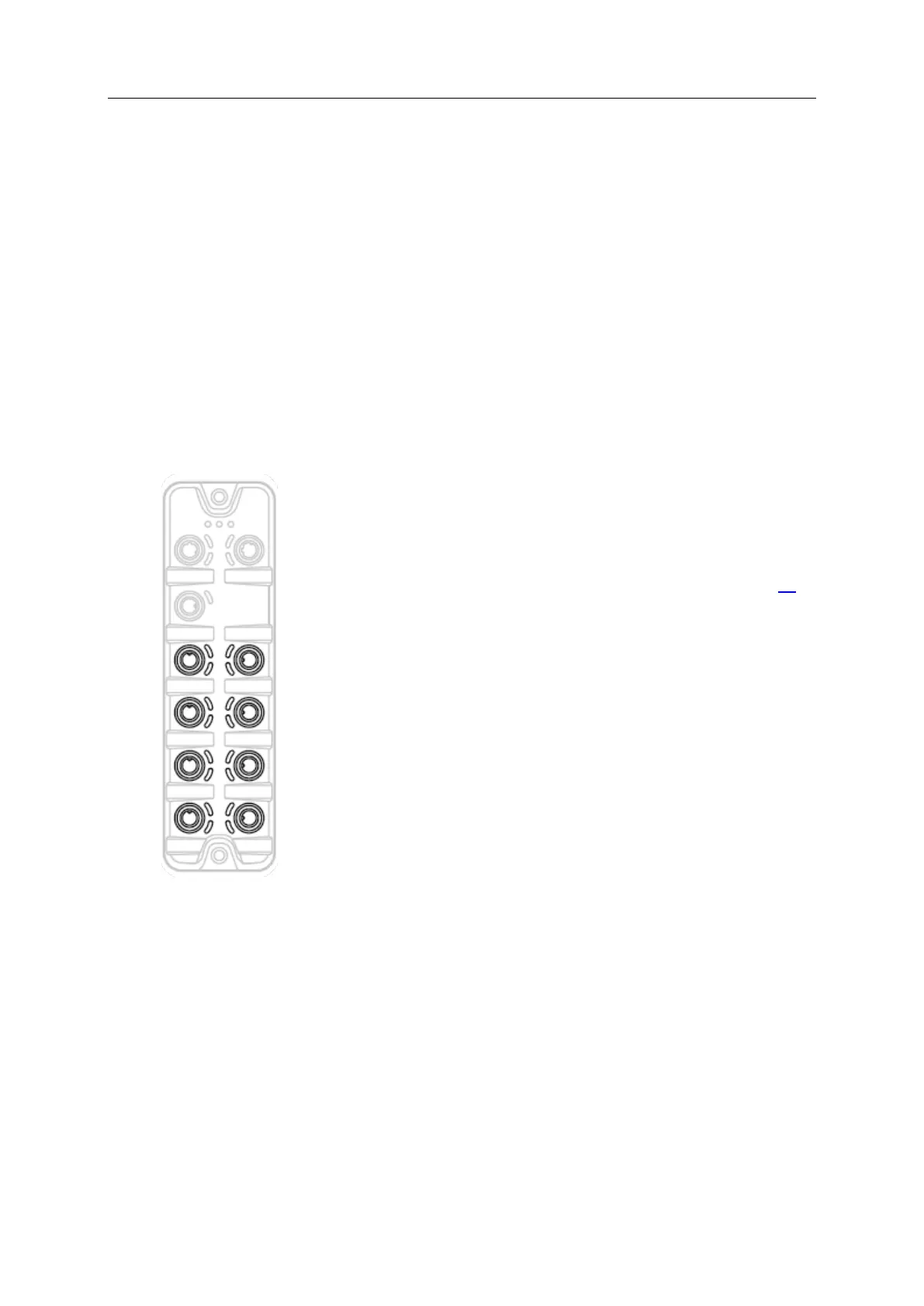

6.3.1 Connect IO-Link devices for Class A operation
51959
Wiring information:
 The connected IO-Link devices must be supplied exclusively via the IO-Link master.
 The additional digital inputs IO-Link ports X01...X08 (pin 2) have a type 2 behaviour according to
the standard EN61131-2. The connected electronics must be electrically suited for this.
► Connect the connectors of the IO-Link devices with the M12
sockets of the IO-Link ports X01...X08.
 Tightening torque: 0.6...0.8 Nm
 Maximum cable length per IO-Link port: 20 m
► To connect the devices, use M12 connectors with protection
rating IP 65 / IP 66 / IP 67 or higher (→ Accessories (→ S. 44)).
