5.4 Installation example using the process adapter E40195

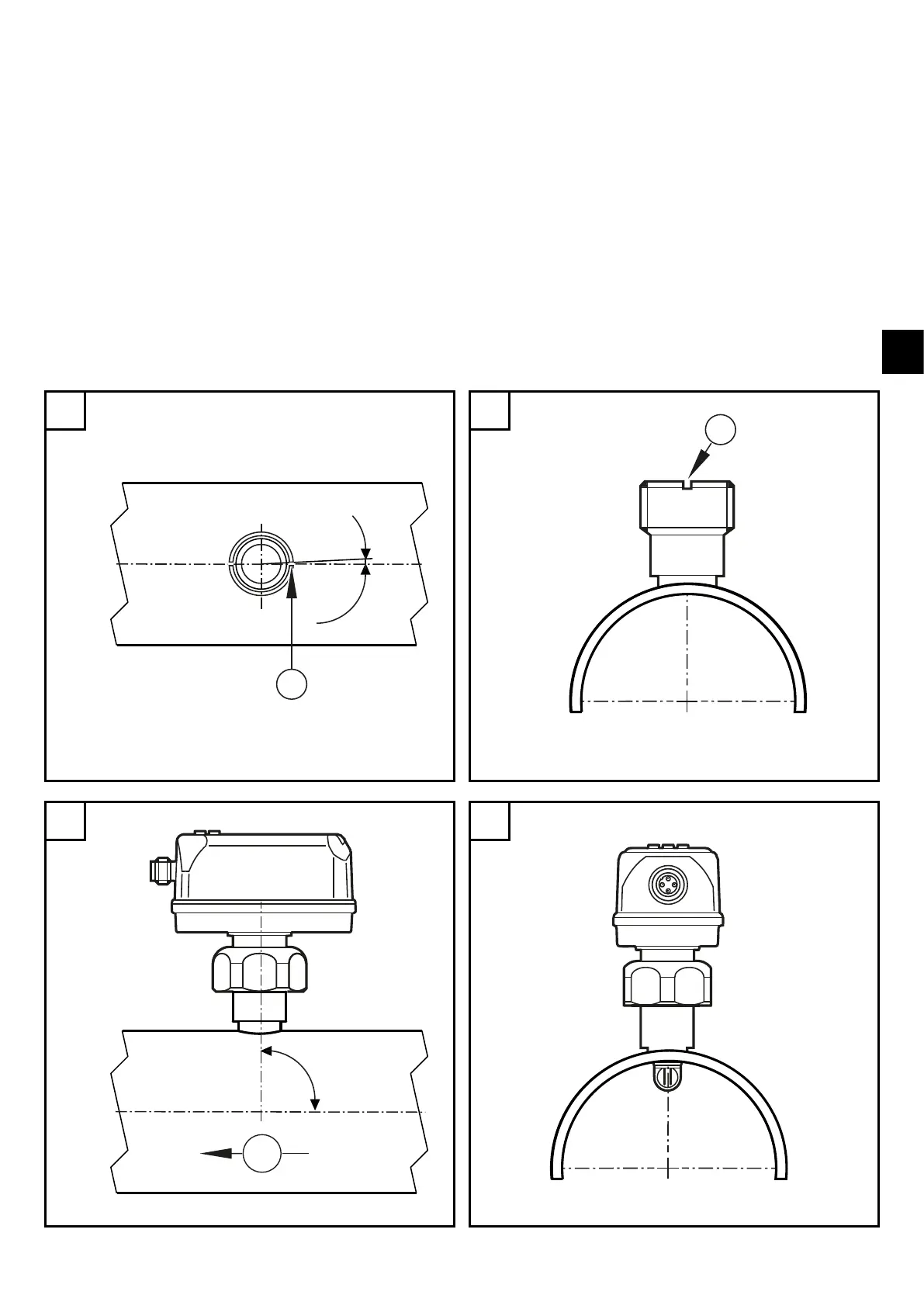

For an ideal alignment of the sensor's measuring probe to the direction of flow of
the medium (fig� 4), observe the following notes on welding of the E40195 process
adapter into the pipe:
 Drill a hole for the process adapter into the pipe and remove all burrs�
 Align the adapter with the alignment mark at a max� offset of ± 2° to the pipe
axis (fig� 1 and 2)�
 Ensure that the adapter does not extend into the pipe (fig� 2)�
 Install the adapter precisely vertically in the pipe (fig� 3)�
1
±
2°
1
2
1
1: Alignment mark
3
90°
F
4
