18
6 Electrical connection
The device must be connected by a qualified electrician� Voltage supply
according to EN 50178, SELV, PELV�
Disconnect power�

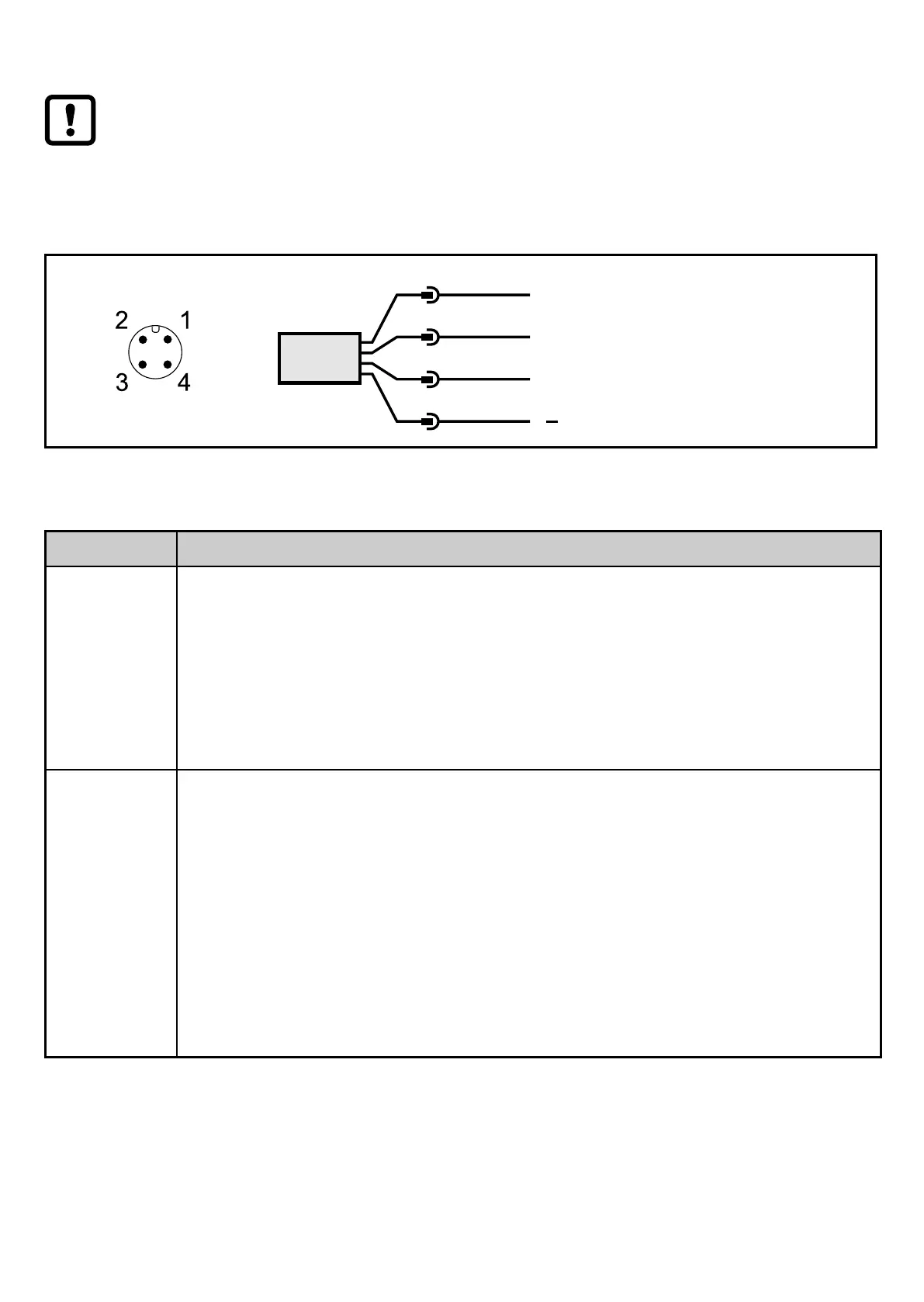

Connect the unit as follows:
BN
WH
BK
BU
4
1
3
2
OUT2
L
+
L
OUT1
Colours to DIN EN 60947-5-2
BK: black; BN: brown; BU: blue; WH: white
Pin Connection
4
(OUT1)
• switching signal for volumetric flow
• switching signal for temperature
• switching signal for pressure
• switching signal for preset counter
• pulse signal for quantity meter
• IO-Link
• OFF
2
(OUT2/InD)
• switching signal for volumetric flow
• switching signal for temperature
• switching signal for pressure
• switching signal for preset counter
• pulse signal for quantity meter
• analogue signal for volumetric flow
• analogue signal for temperature
• analogue signal for pressure
• input for external counter reset signal (InD)
• OFF
