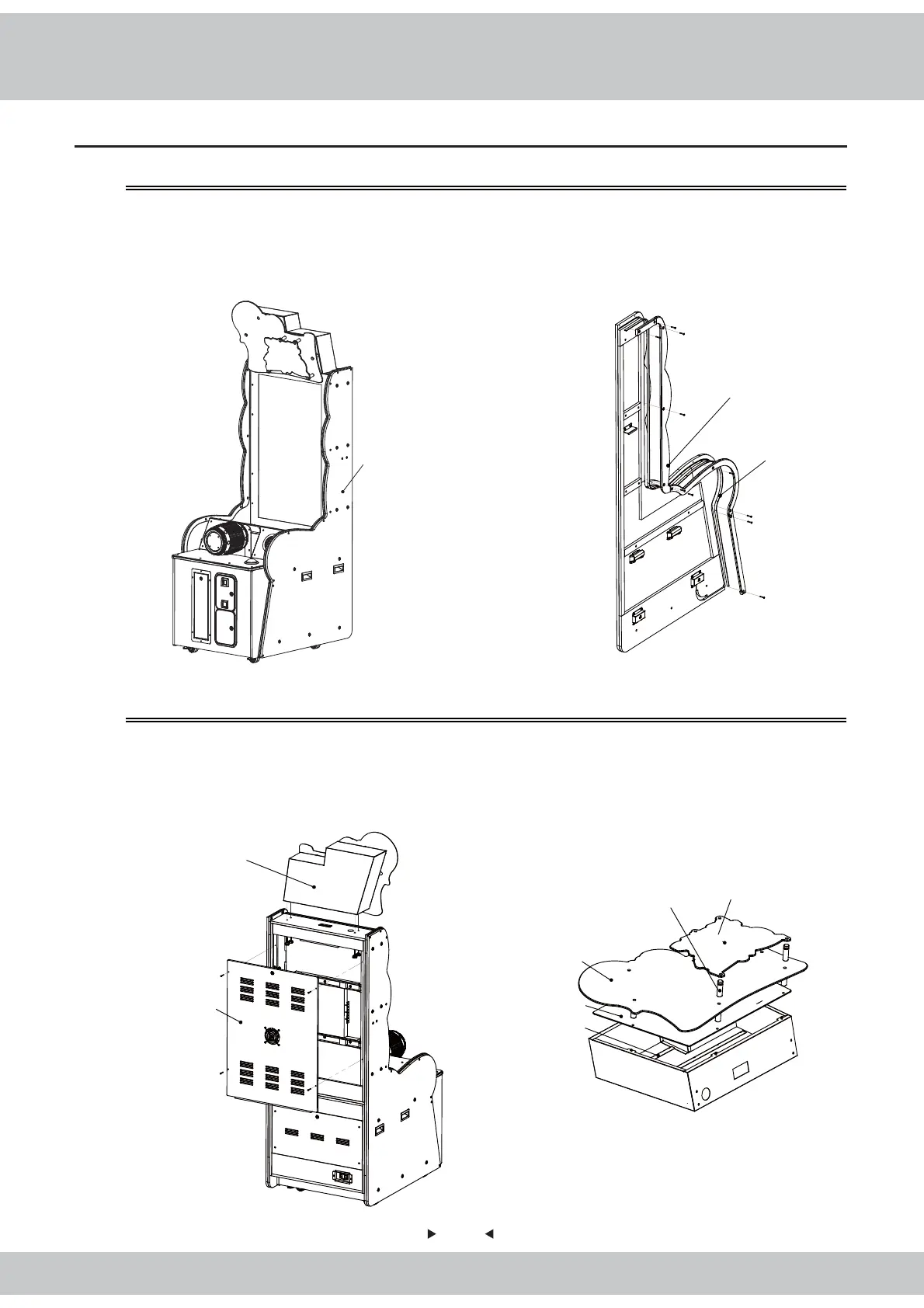

5.2.2 Replacement of light-bar on the light-box
1.Remove 11 screws from the side-board
assembly and remove the side-board
assembly;
2.Remove the screws on the side acryl
and remove the side acryl to replace
the light-bar. Reinstall in a reverse
order after replacement.
1.Remove 4 screws from the upper
access door. Open the access door
with the key. Remove the rubber-head
screws to remove the light box;
2.Remove the
AD(advertisement) nail .
Remove the acryl for game-machine
name, decorating parts on the light-box,
the acryl on the light-box in proper order,
and then replace the light-bar.
5.2.1 Replacement of light-bar on the side board
5.2 Part Replacement
Side board assembly
side acryl
Light-bar
Light box
Upper access
door
signboard arcylic
Light box pirate
decorations
signboard
lamp box acryl
Light-bar
AD(advertisement)
nail
