IGS Pirate Falls - LCD Assembly

46

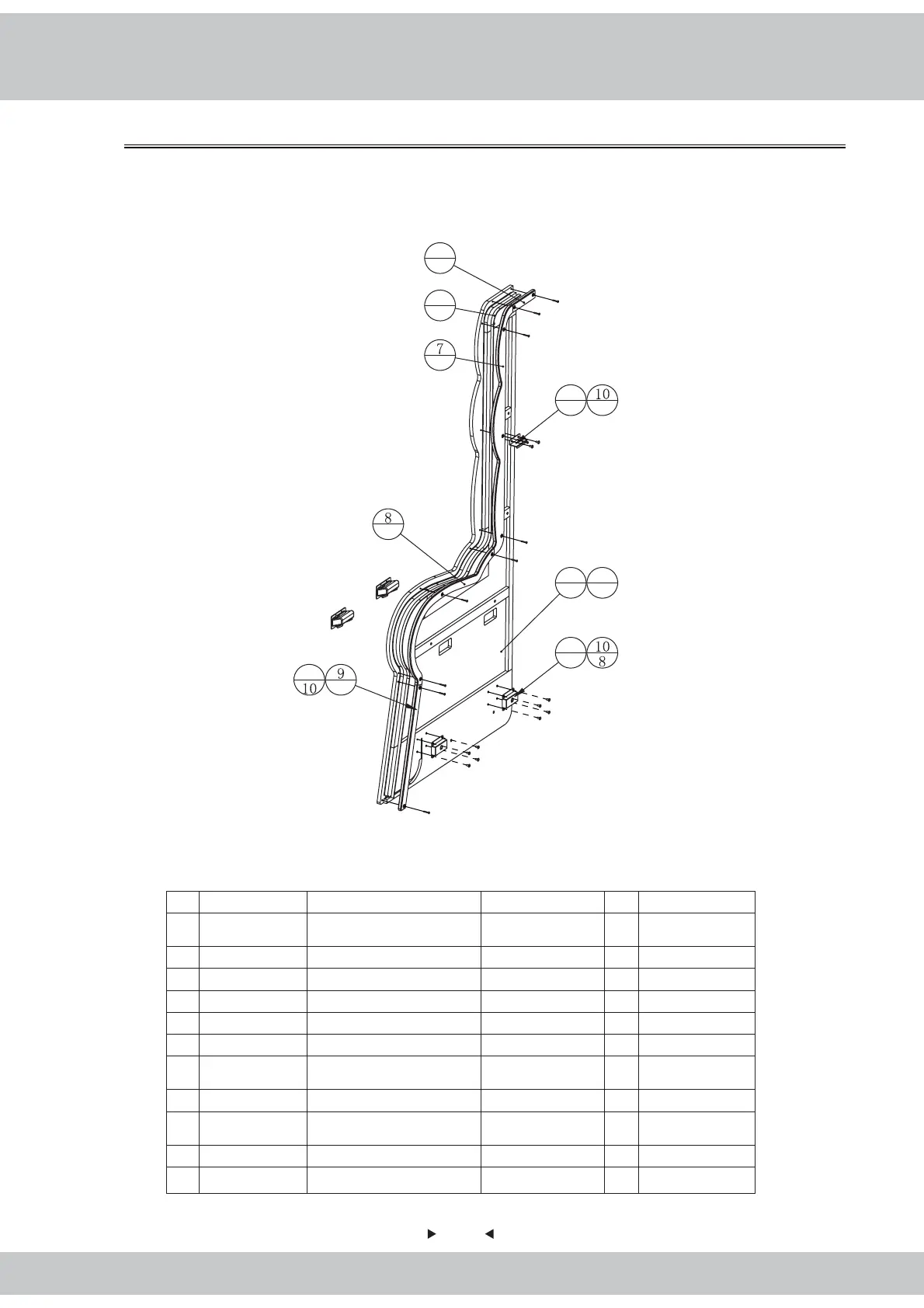

6.2.1.2 Left wooden-frame assembly(PT-0102000)
3
2
1
1
5
1
6
1
1
2
1
1
1
11
4
2
2
11 Hex Socket Cap Screws M4*25（chrome） 10 1.6.LS142022
10 Cross the big flat head screw M6*12（Black） 10 1.6.LS261021
9 PT-0102D04 Side acryl D PMMA-15.0T 1 1.7.IG31A00060
8 PT-0102D03 Side acryl C PMMA-15.0T 1 1.7.IG31A00050
7 PT-0102D02 Side acryl B PMMA-15.0T 1 1.7.IG31A00040
6 PT-0102D01 Side acryl A PMMA-15.0T 1 1.7.IG31A00030
5 UYG-0102A02 Broadside fixed iron SECC-2.0T 1 1.1.IG26C00130
4 Plastic clasp hands
White used for
wooden case
2 1.8.AA000020
3 UYG-0102A01 Light bar fixed iron SECC-1.5T 2 1.1.IG26C00120
2 5050 strip light (lpd6803chip)
DC12V RGB30
L=2700mm
1 1.4.ZM9E0528
1 PT-0102B01 Left side wooden frame MDF-15.0T 1 1.2.IG31A00030
No. Draw No. Name Material/Spec. Qty. Product Code
