IGS Pirate Falls - Replacement of Light-bar on Control Panel; Replacement of Light-bar on Barrel; Replacement of Decorating Light-bar

36

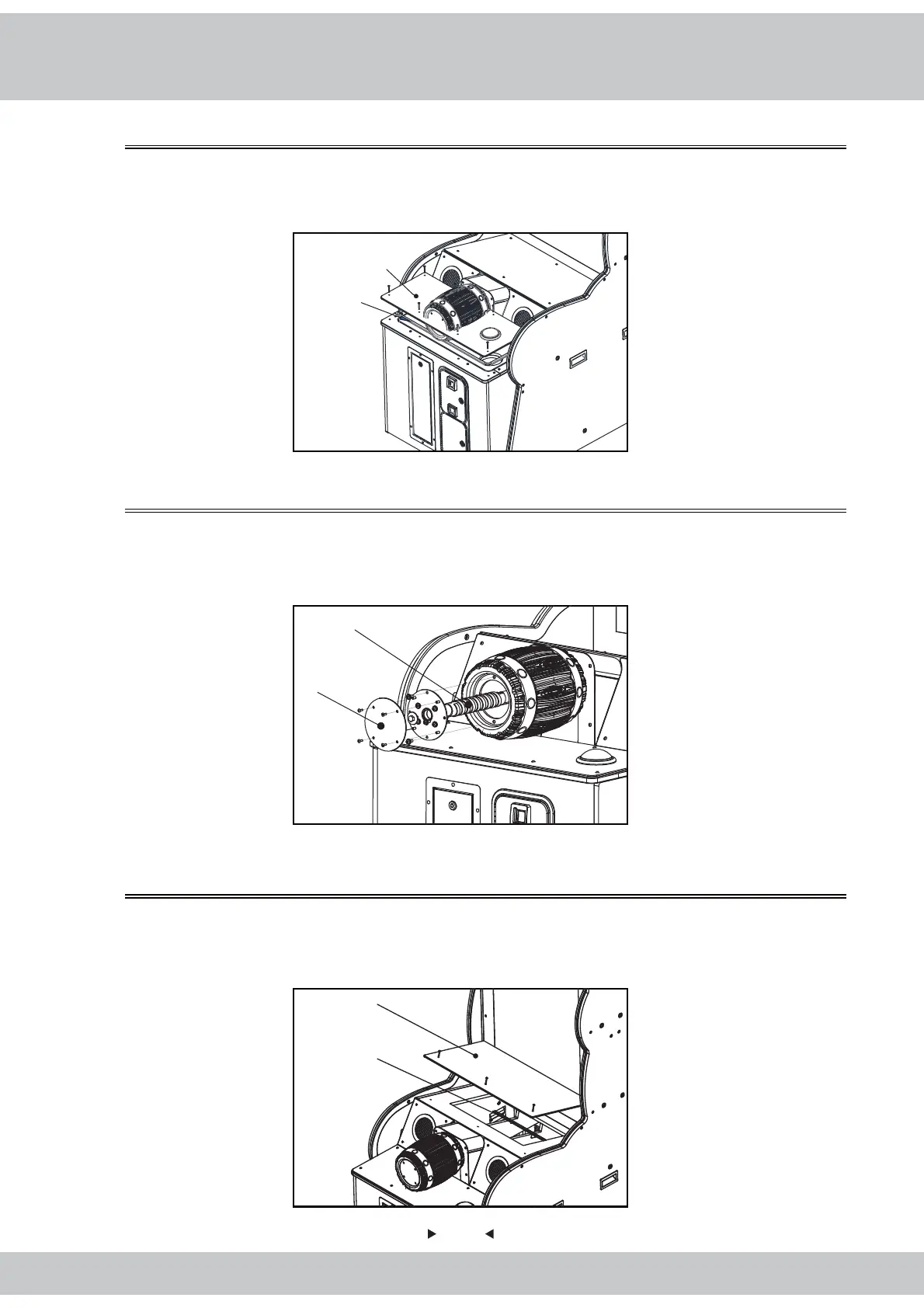

1.Remove 8 screws from the control panel and remove the control panel to replace the
light-bar;Reinstall in a reverse order after replacement.
5.2.3 Replacement of light-bar on control panel
Control-panel
button assembly
Light-bar.
1.Remove 4 screws on the cover board, open the cover board and remove the
corresponding screws to replace the light-bar;Reinstall in a reverse order after
replacement.
5.2.4 Replacement of light-bar on the barrel
1.Remove 4 screws on the cover board, open the cover board and remove the
corresponding screws to replace the light-bar;Reinstall in a reverse order after
replacement.
5.2.5 Replacement of the decorating light-bar
Light-bar
Cover board
Decorative
pressure
Light-bar
