IGS Pirate Falls - Ticket-Door Assembly

60

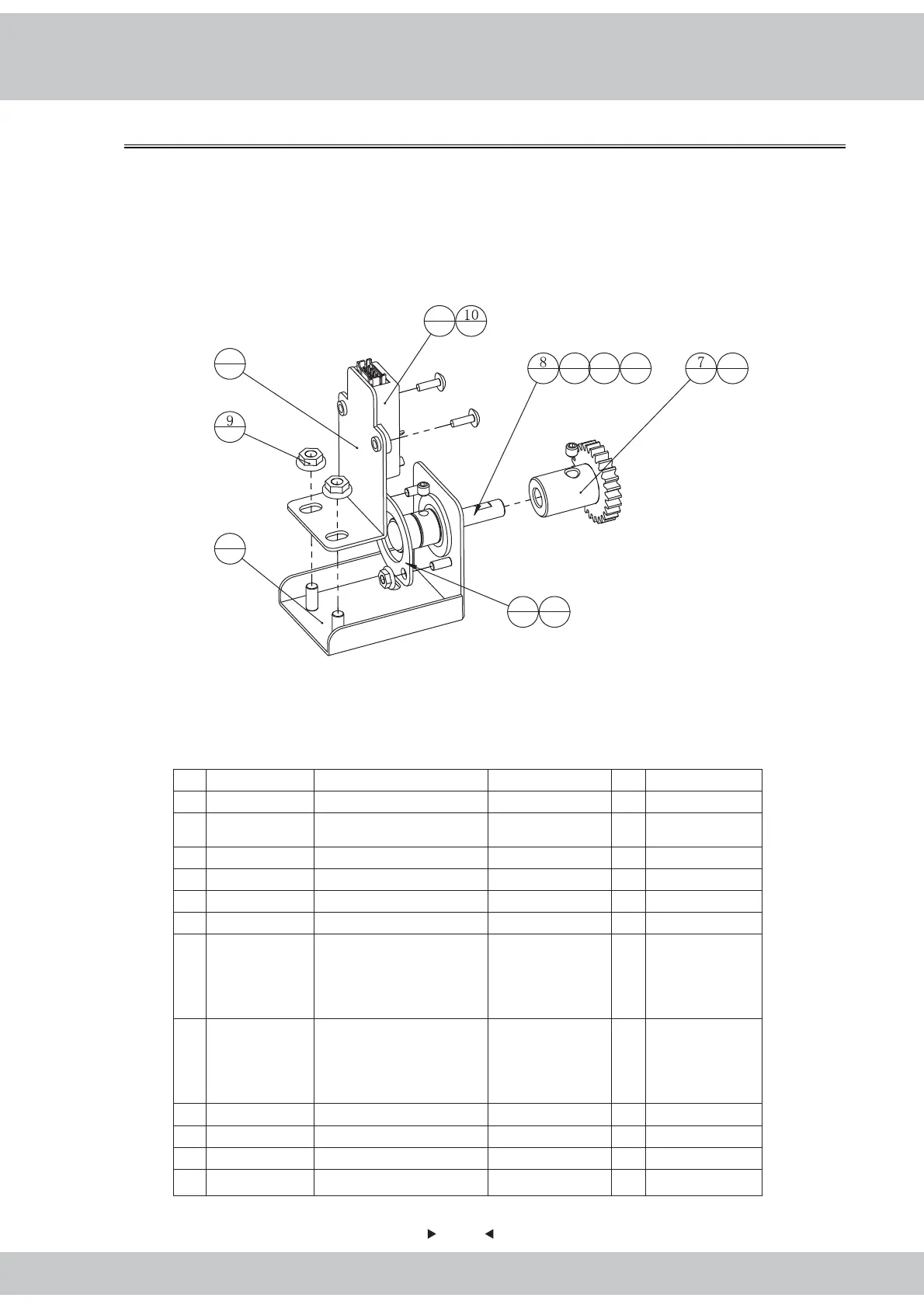

6.2.2.3 Sensor assembly(PT-0203000)
1
1
2
1
2
5
1
11
12
1
11
2
4
1
6
1
6
1
2
3
1
12 PT-0203A05 Bearing plate SECC-1.2T 1 1.1.IG31A00250
11 Hex head Cap Screw M3（Colour） 2 1.6.LM203013
10 Cross the big flat head screw M3*8（Black） 2 1.6.LS230081
9 Hex head Cap Screw M4（Colour） 2 1.6.LM204013
8 PT-0203A02 Inductor shaft Q235 1 1.1.IG31A00220
7 PT-0203A04 Gear Q235 1 1.1.IG31A00240
6 Socket Set Screw M4*4（chrome） 2 1.6.LST40002
5
Non-contact angle senson
assy
VR magnet fixed
seat+Themagnet,Ele
ctromagnetic VR
cover+ Induction
plate
1 1.3.IG19A00030#
4
Non-contact angle senson
assy
VR magnet fixed
seat+Themagnet,Ele
ctromagnetic VR
cover+ Induction
plate
1 1.3.IG19A00030#
3 Flange bearing FL698ZZ 1 1.4.ZC000061
2 PT-0203A03 Sensor seat SPCC-1.2T 1 1.1.IG31A00230
1 PT-0203A01 Magnet shaft seat SPCC-1.2T 1 1.1.IG31A00210
No. Draw No. Name Material/Spec. Qty. Product Code
