IGS Pirate Falls - Right Wooden-Frame Assembly

45

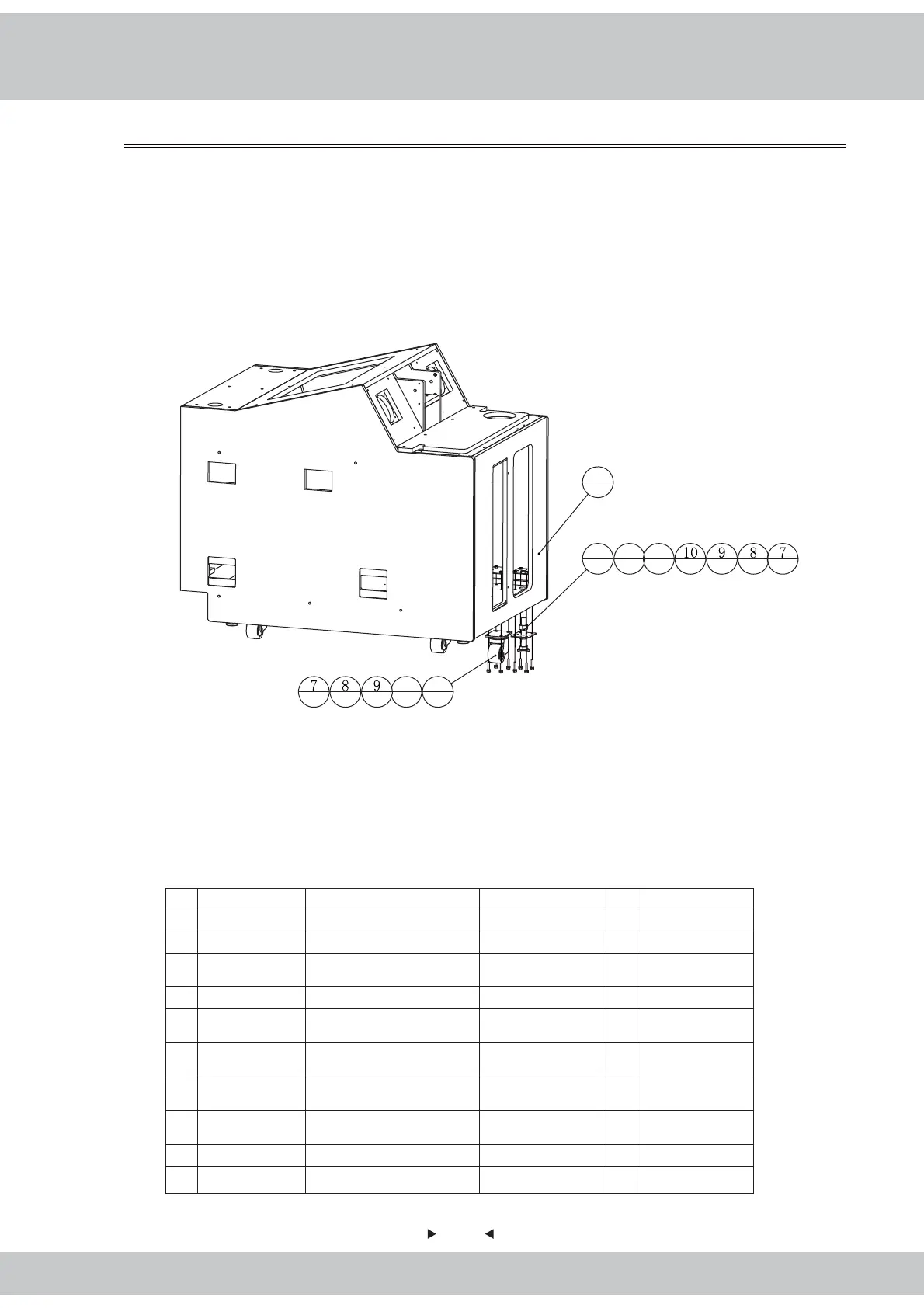

6.2.1.1 Wooden frame assembly(PT-0101000)
1
1
5
4
6
4
2
4
4
4
4
3
4
161616
16 16 16
10 Hexagon nuts M16（Colour） 4 1.6.LM116013
9 Hex Head Cap Screw(BS) M6*30（Black） 32 1.6.LSM63011
8 Spring washer M6（Black） 32 1.6.DP206011
7 Plain washers
φ6*φ12*2.0
（Black）
32 1.6.DP106021
6 Casters 2.5" 4 1.4.JL302520
5 LEG Adjuster
M16*Y100
（Colour）
4 1.6.LSV99013
4 WAH-0000A06 M16 anchor nut of fixed iron 1 SPCC-2.0T 4 1.1.AA09000010
3 WAH-0000A05
2.5" heavy rolling wheel fixed
iron
SPCC-2.0T 4 1.1.AA09000060
2 WAH-0000A04
2.5" light rolling wheel fixed
iron/anchor bolt fixed iron 2
SPCC-2.0T 4 1.1.AA09000050
1 PT-0101B01 Frame MDF-15.0T 1
No. Draw No. Name Material/Spec. Qty. Product Code
