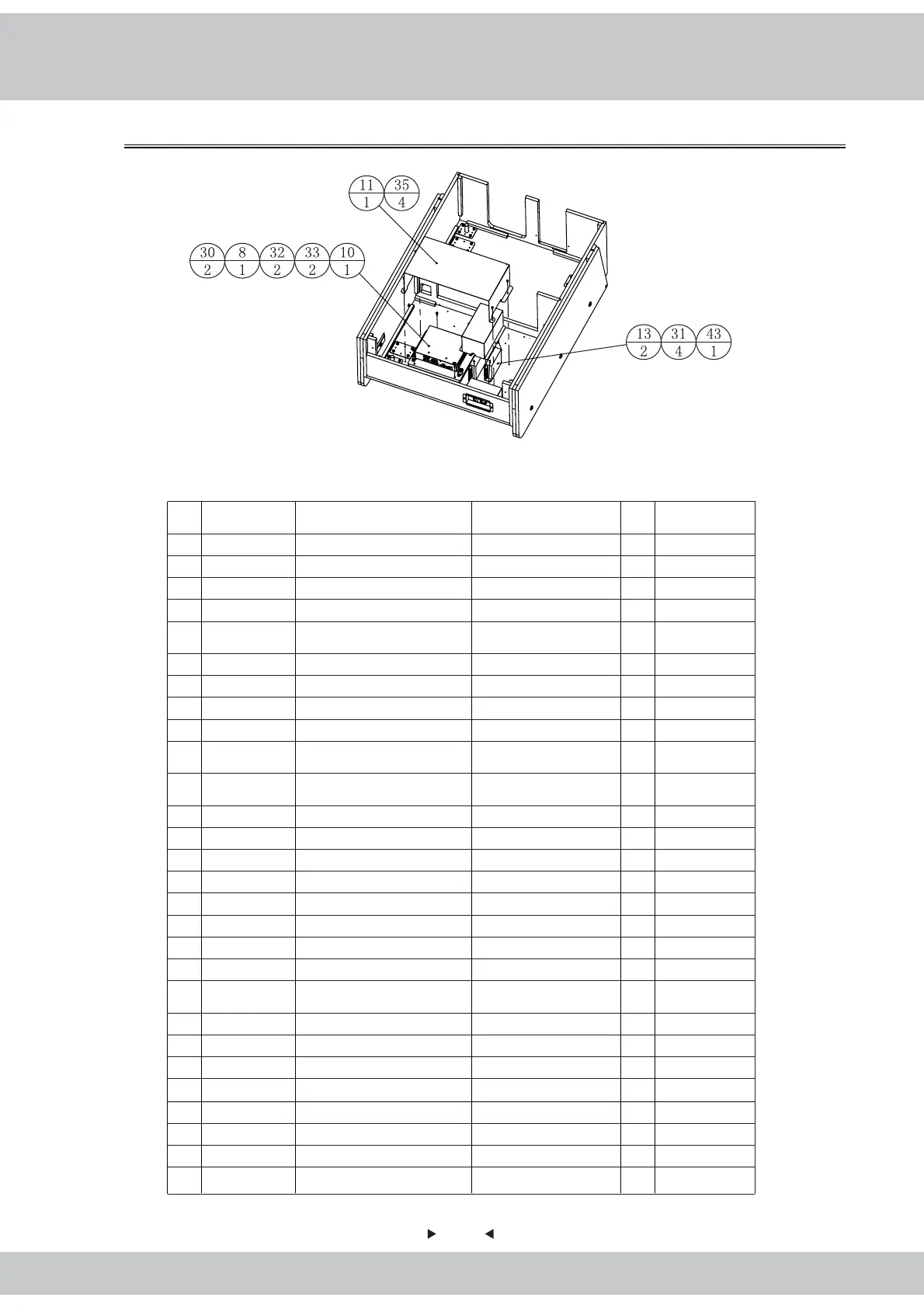

IGS Pirate Falls - Wooden Frame Assembly

43
28
Hex Head Cap Screw(BS)
M8*30（Black） 16 1.6.LSM83011
27
Plain washers
φ8*φ16*2.0（Black） 20 1.6.DP108011
26
Hex Head Cap Screw(BS)
M8*40（Black） 6 1.6.LSM84011
25
Spring washer
M8（Black） 26 1.6.DP208011
24
Plain washers
φ8*φ22*2.0（Black） 28 1.6.DP108031
23 PT-0112000
Control-panel button
assembly
1
22 PT-0111000 Decorative light-bar assembly 2
21 PT-0100D02 Console Side acryl B PMMA-15.0T 1 1.7.IG31A00020
20 PT-0100D01 Console Side acryl A PMMA-15. 2 1.7.IG31A00010
19 5050 strip light (lpd6803chip) DC12V RGB30 L=900mm 1 1.4.ZM9E0529
18 PT-0110000
Left loudspeaker mesh
assembly
1
17 PT-0109000
Right loudspeaker mesh
assembly
1
16 Speaker(as003) 4.5" 8Ω/20W 2 1.4.YS104560
15 PT-0100A03 Cover plate fixed bracket SPCC-1.2T 2 1.1.IG31A00040
14 PT-0100A02 Light box pressure plate SPCC-1.5T 1 1.1.IG31A00030
13 Power supply LRS-I00-12 2 1.4.DY170120
12 PT-0108000 Glass-frame assembly 1
11 UYG-0100D02 PVC cover B PVC-1.OT 1 1.7.IG26C00020
10 PT-0107000 Host assembly 1
9 PT-0105000 AC power-box assembly 1
8 UYG-0100AOl Pressure plate hardware
SECC-1.5T 1 1.1.IG26C00090
7 PT-0104000 LCD assembly 1
6 PT-0103000 Right wooden-frame assembly 1
5 PT-0102000 Left wooden-frame assembly 1
4 UYG-0000A02 lcd supports 2 SPCC-2.0T 2
3 UYG-0000A01 lcd supports 1 SPCC-2.0T 2
2 PT-0100B01 Screen wooden frame MDF-15.0T 1
1 PT-0101000 Frame assembly 1
No. Draw No. Name Material/Spec. Qty. Product Code
