39
AC Withstand parameters will now be loaded into the currently selected memory and
step. Press the “Enter” soft key to accept the parameters or press the “Esc” soft key
return to exit without saving.

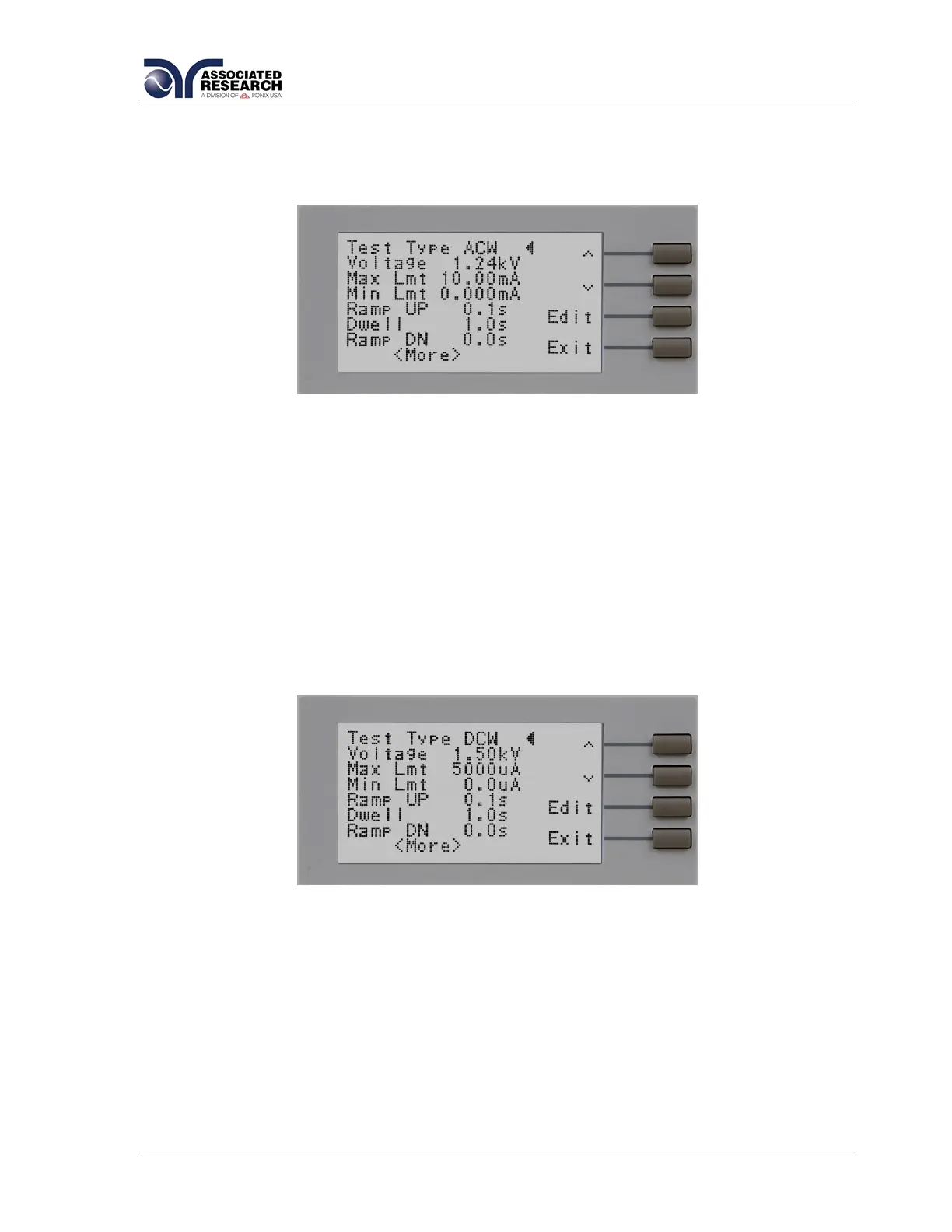

From the AC Withstand Parameter Review screens the following parameters may be
selected for editing: Voltage, Max-Limit, Min-Limit, Ramp Up, Dwell Time, Ramp
Down, Arc Sense, Frequency, Arc Detect (ON/OFF), Continuity selection (ON/OFF),
Continuity Max-Limit, Continuity Min-Limit, and Continuity Offset.
DC Withstand (Models 3765 and 3770)
From the Test Parameter Review screen scroll the cursor using “” and “” soft keys
to the Test Type parameter. Press the “Edit” soft key. Select the DC Withstand
parameter using the “+” and “-” soft keys and press the “Enter” soft key. The default
DC Withstand parameters will now be loaded into the currently selected memory and
step. Press the “Enter” soft key to accept the parameters or press the “Esc” soft key
to exit without saving.
From the DC Withstand Setting screen the following parameters may be controlled:
Voltage, Max-Limit, Min-Limit, Ramp Up, Dwell Time, Ramp Down, Arc Sense, Arc
Detect (ON/OFF), and Continuity (ON/OFF).
Offset
When the Continuity feature is turned ON, the Offset function may be used to
compensate for lead and test fixture resistance during the Continuity test. Using the
“” and “” soft keys scroll the cursor to the Offset parameter and press the “Edit” soft
key. You may now manually or automatically set an Offset value.
