43

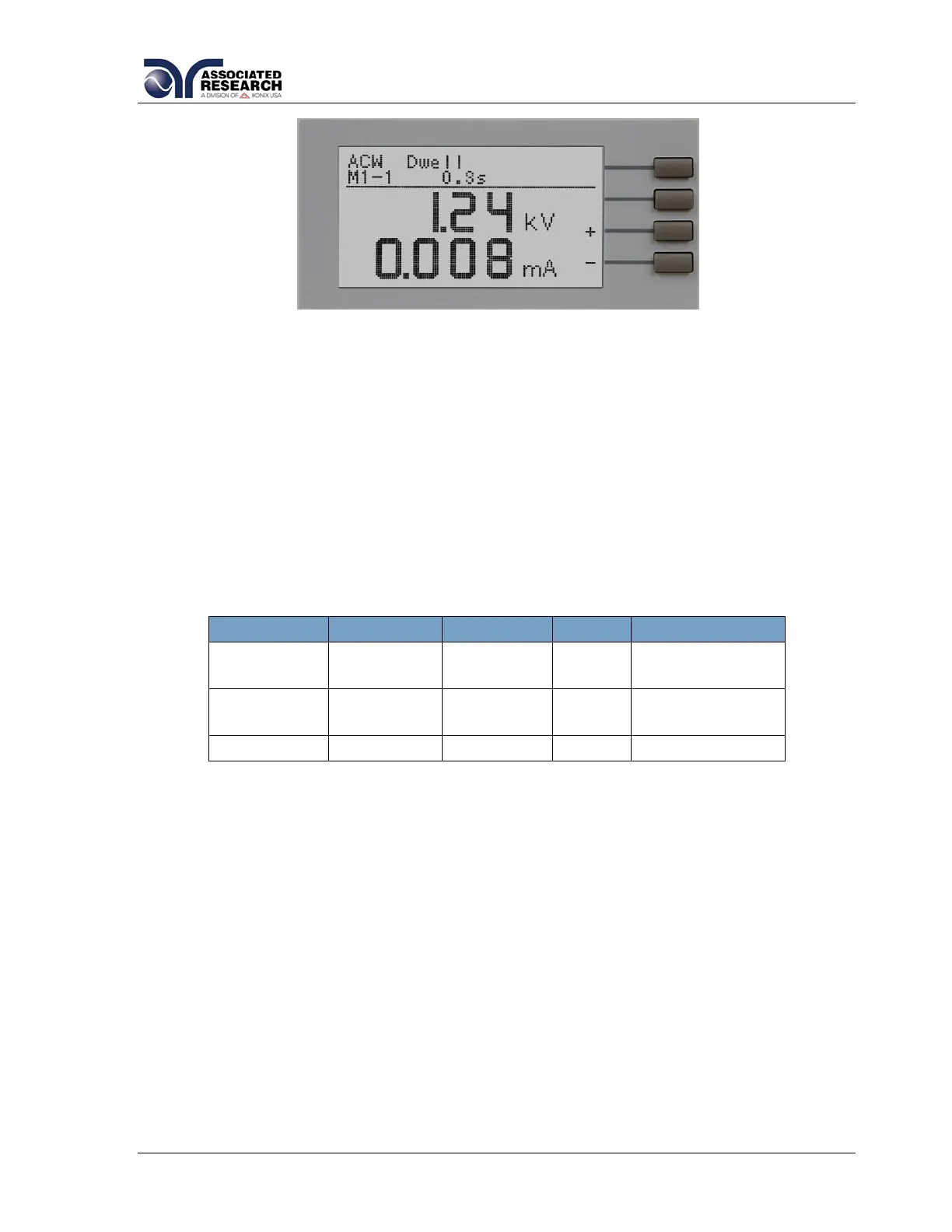

Pressing the “+” soft key will increase the output voltage and pressing the “-” soft key
will decrease the output voltage. Manual voltage adjustment temporarily overrides the
voltage setting and only remains in effect until the test is terminated by Pass, Fail, or
Abort conditions.
When the Lock parameter is ON in the System Menu, manual voltage adjustment is
disabled. You will not see the “+” and “-” soft key selections in this case.
5.3. Test Metering
Each test performed by the Hypot III contains a unique set of parameters and
therefore requires specialized metering for each test. The following table describes
the meters displayed for each of the different tests.
5.4. Results Screens
The Hypot III may be configured to display one of three different types of Results
screens (see section 4.2. Setup System for more information). To access the results
screen use one of the following methods:
Method 1, Hot key
Pressing the bottom soft key at the Perform Tests screen will display the Results
screen.
Method 2, Menu Selection
1. From the Perform Tests screen, press the “Menu” soft key. The Main Menu will
now be displayed.
2. From the Main Menu screen, press the “Menu” soft key. The Results, Test and
System selections will now be displayed.
3. From this screen, press the “Result” soft key. The Results screen will now be
displayed. The Results screen will appear as follows:
