5.1.3. Interlock Connector
Hypot III is equipped with a Remote Interlock feature. Remote Interlock utilizes a set
of closed contacts to enable the instrument’s output. If the Remote Interlock contacts
are open the output of the instrument will be disabled. To disable the Remote
Interlock feature connect the Interlock Key into the Signal Input port located on the
back of the tester.
5.2. Performing a Test
1. From the Main Menu, select the memory and step you wish to perform then press
the “Exit” soft key to return to the Perform Tests screen.

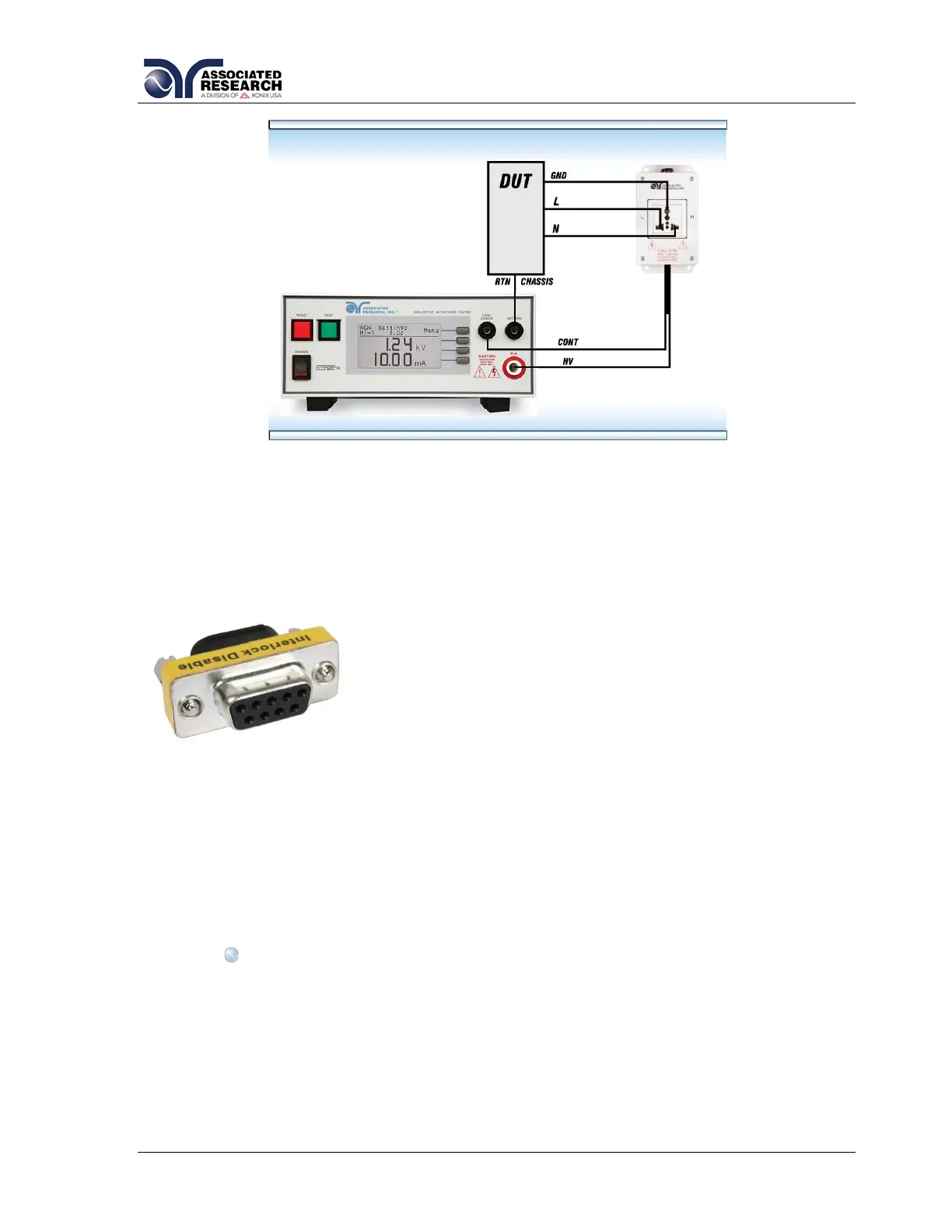

2. Attach the appropriate load or DUT to the instrument. Refer to section 5.1.
Instrument Connections for instrument connections.
3. Press the TEST button.
4. The instrument will now perform the test or sequence of connected tests.
NOTE: If the test is started from a step other than 01, it will always
return to the originally selected step when you push RESET or TEST
buttons.
Manual Voltage Adjustment
When Hypot III is performing a test, “+” and “-” soft key selections will appear. These
soft keys may be used to adjust the output voltage while performing a test.
To Next Page
