3.Downloading Data from Memory
Choose between the following download methods.
1. USB Data Download from Memory
1) Connect the gauge and computer receiv-
ing data with the USB cable.
2) Turn on the gauge and ZT Logger.

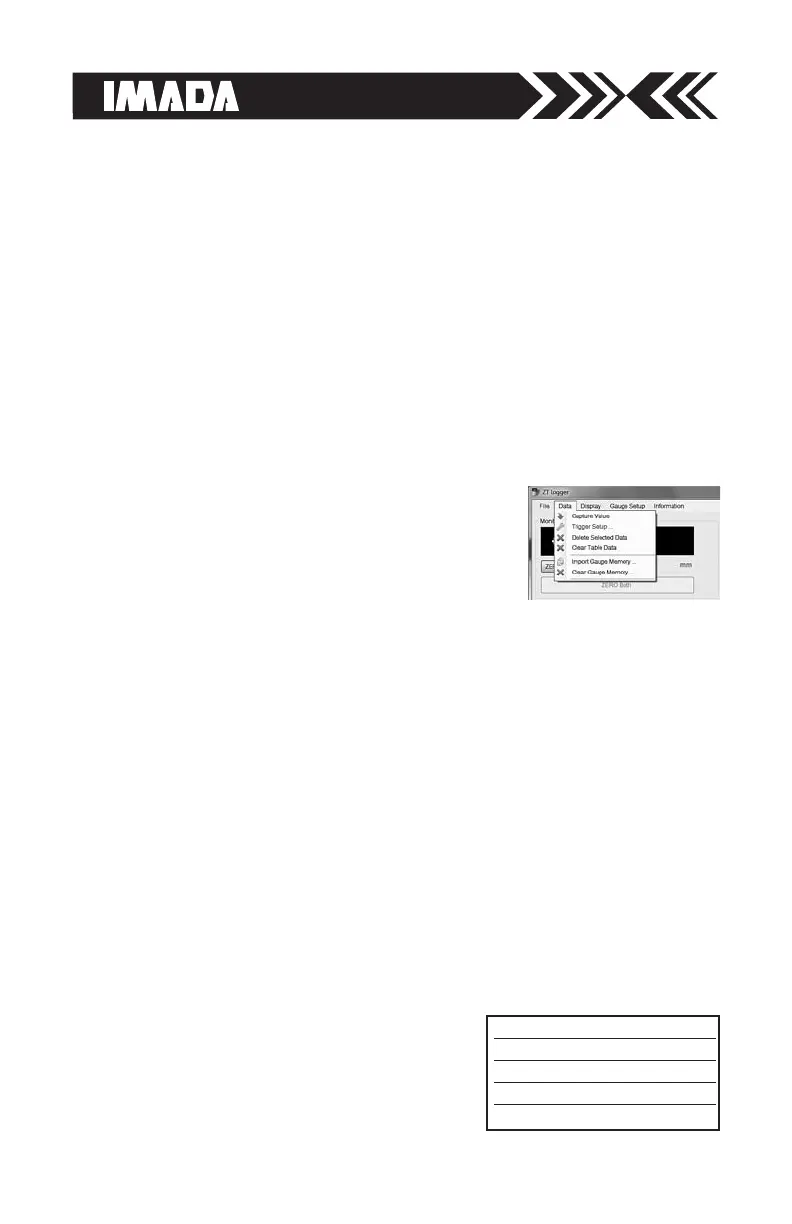

3) Under the Data menu, select Import
Gauge Memory. The gauge memory will fill the Data Table
which can be saved as a CSV file.
2. RS-232C Data Download from Memory
Connect the gauge and device receiving data with a CB-208 cable.
All functions can be duplicated remotely by using the RS-232C
interface. Commands must be sent in uppercase ASCII character
format followed by a carriage return [CR].
RS-232C Signal: 8 data, 1 stop, no parity. Baud Rate: 19,200 bps
Refer to the tables on pages 16-19 for ASCII commands.
3. Mitutoyo Digimatic Signal
Connect the CB-308 cable to the communications port and the
device receiving the data. Set up parameters as instructed from
the Mitutoyo processor manual.
4. ±2 VDC Analog Signal
Connect the CB-108 analog cable and
communications port receiving the
voltage signal. Voltage comes through
the D/A converter and resets to zero
when a tare function is performed.
Voltage ±2V
Update 2,000 times/sec
Zero offset 20mV maximum
Span error ±1%
Load Impedance 1KΩ or higher
Specifications
All Data Delete
1. Follow Recalling Stored Data steps 1-3, page 11.
2. Highlight Data Delete and press the right arrow key.
3. Press the up/down arrow keys and select All Data Delete.
4. Press the
MENU key to clear and a confirmation screen
appears. Press the
MENU key again to clear all the data.
5. Press the left arrow key until the door icon
# appears, then press
and hold
MENU two seconds to exit. Or press the left arrow
key and when ‘Exit Menu’ appears, press
MENU to exit.
