INTRODUCTION
Imada ZTS Series high performance, digital force gauges include all
the standard features: selectable real time and peak measuring
modes, selectable measuring units, lbf (ozf), kgf (gf), N, high/low set-
points with color-coded LED indicators for Go/No Go testing, 1,000
data memory, USB, RS-232 and Digimatic output.
Additionally, ZTS gauges incorporate user-friendly, multi-language
program menus, highly visible EL (electro luminescent) displays, ZT
Logger software which downloads gauge memory and can set all
gauge functions and actual 2,000 data/second processing and trans-
mission capability, not just the peak data.
1
PRECAUTIONS
1. WARNING!! Test samples and fixtures can break or shatter,
wear eye and body protection to avoid injury.
2. WARNING!! REGARDLESS of whether the unit is ON or OFF,
DO NOT exceed the capacity of the gauge. At 110% of the
rated capacity, the overload LED indicator flashes to warn.
NEVER exceed 200% of the rated capacity, or the load cell will
be damaged. Avoid shock load.
3. When mounting ZTS Series, use M4 mounting screws with a
maximum insertion depth of 5 mm into the gauge. For high
capacity gauges use the supplied mount-
ing hardware only.

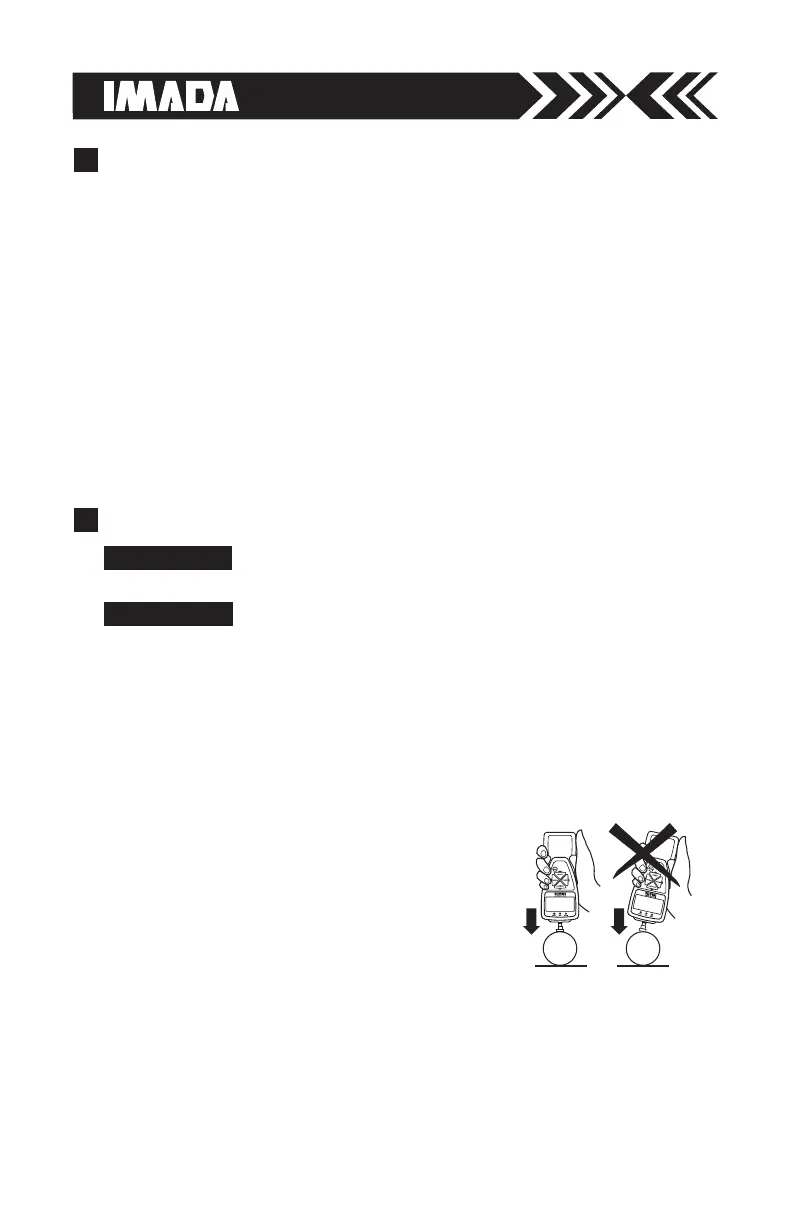

4. Measure in line tension and compression
forces only. DO NOT attempt to mea-
sure forces perpendicular to the measur-
ing shaft – damage to load cell and/or
shaft may result.
5. Hand tighten attachments only. DO NOT use tools.
6. Make sure this gauge and all peripherals are powered down
before attaching any cables.
7. DO NOT disassemble the gauge. Disassembly voids warranty.
