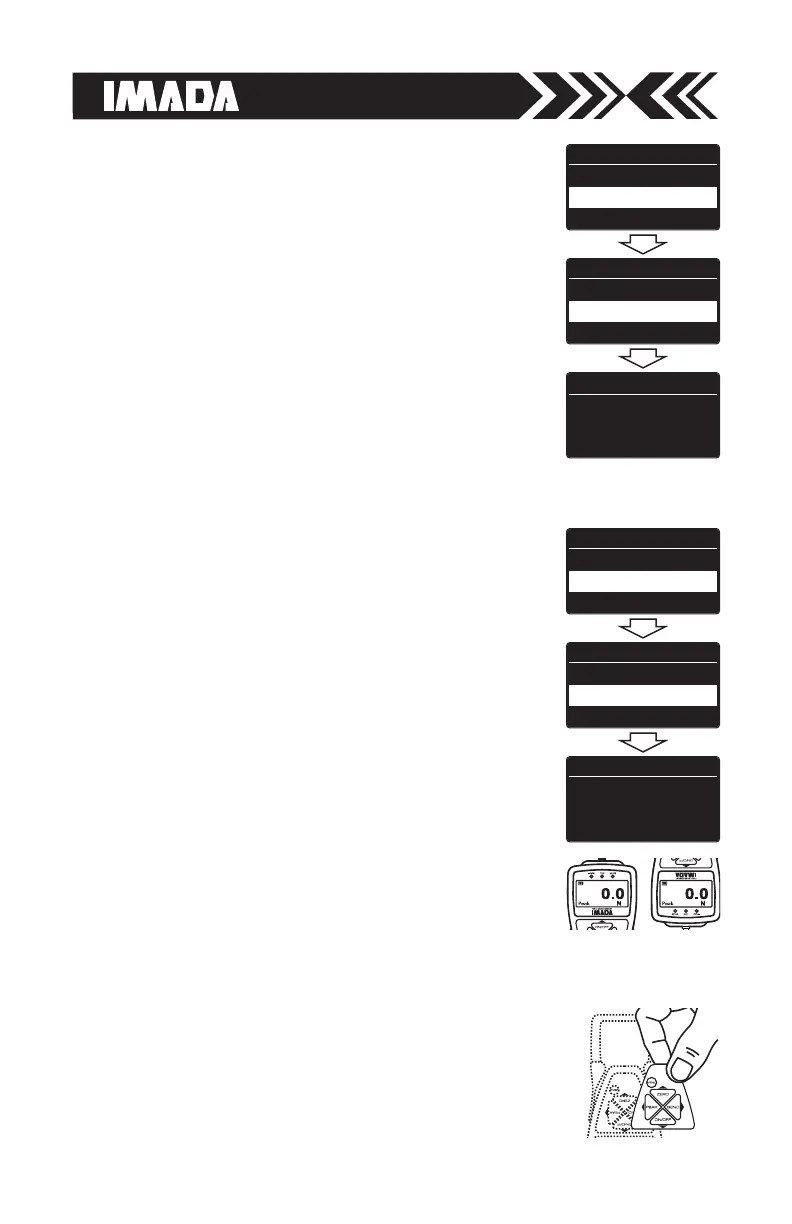

page 7
2.Selecting Units
1. Turn OFF the gauge. Press and hold MENU,
then press
ON/OFF to turn ON the gauge
and enter the Setup Menu. Units is highlighted,
press the right arrow key to select.
2. Force Units is highlighted, press the right
arrow key to select.
3. Press the up/down arrow keys to select Units
and press
MENU to input your selection.
4. Press the left arrow key until the door icon
#
appears, then press and hold MENU two sec-
onds to exit. Or press the left arrow key and
when ‘Exit Menu’ appears, press
MENU to exit.
3.Reversing the Display (optional)
Reverse the display for test stand mounting.
1. Press
ON/OFF to turn ON the gauge, then
press and hold
MENU two seconds to enter
the Program Menu. Press the down arrow key to
highlight Display Functions, then press the
right arrow key to select.
2. Press the up/down arrow keys to highlight
Reverse Display and press the right arrow key
to select.
3. Press the up/down arrow keys to select and
press
MENU to input your selection.
4. Press the left arrow key until the door icon
#
appears, then press and hold MENU two sec-
onds to exit. Or press the left arrow key and
when ‘Exit Menu’ appears, press
MENU to exit.
The selected display is retained as the default.
Units
< Force Units >
Force Units
{
N
<Back } Enter@
Setup Menu
Language
# Units >
+/- Indicator
Reverse Display
{
OFF
<Back } Enter@
Display Functions
Brightness
< Reverse Display >
Auto Shut Off
Program Menu
Sound
# Display Functions >
Date and Time
Permanent Test Stand Installation
If your force gauge is permanently installed to a test
stand, carefully adhere the enclosed reverse display
decal over the keypad to make it easier to read.
REVERSE
DISPLAY OFF
REVERSE
DISPLAY ON
