Imada ZTS Series User Manual

page 31

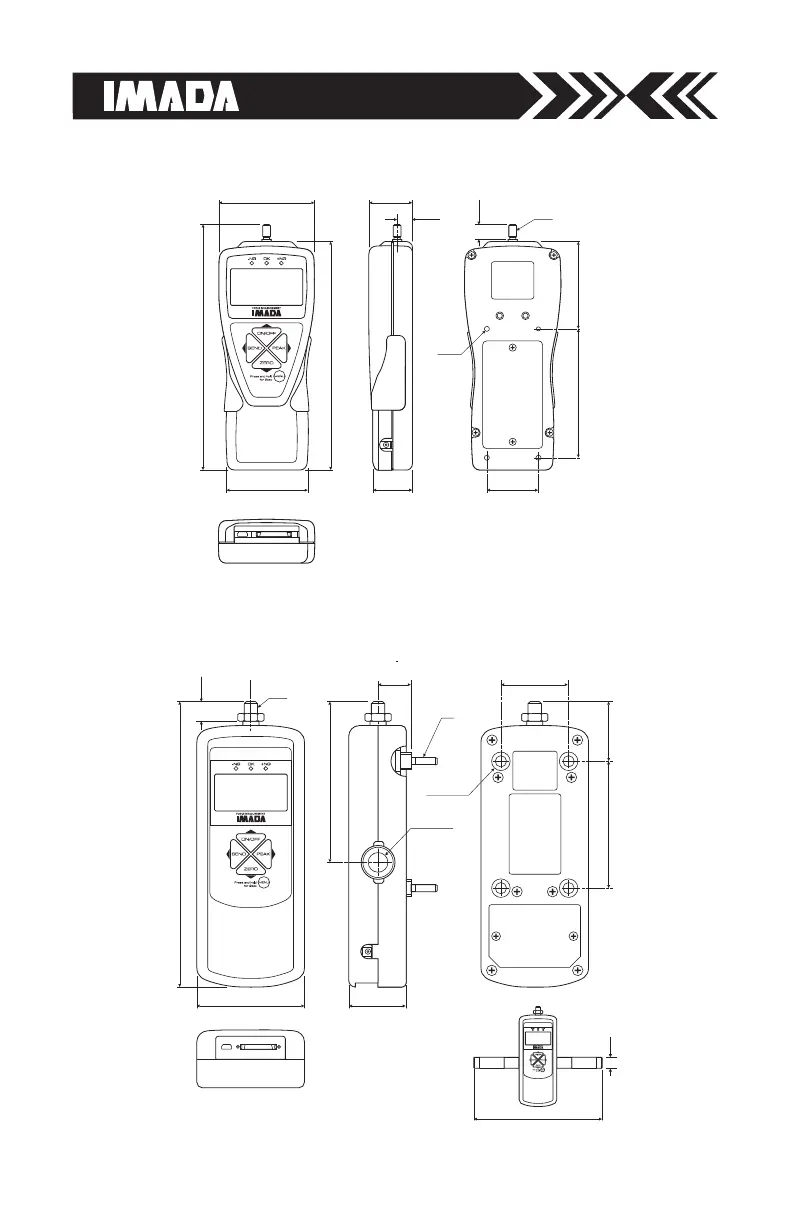

ZTS DIMENSIONS
ZTS HIGH CAPACITY DIMENSIONS
Models: ZTS-550 & ZTS-1100
44.5
(1.75")
83
(3.26")
M10
25
(.98")
B-8
4-M10 x 1
M16 x 1.5
52 (2.04")
46 (1.81")
98 (3.85")
221 (8.70")
124 (4.88")
15
(.59")
High Capacity with handles
283
(11.14")
25
(.98")
75 (2.95") 34
(1.33")
M6
4-M4
11.6
(.45")
31
(1.22")
64
(2.51")
40
(1.57")
12
(.47")
191 (7.51")
178 (7.00")
100 (3.93")
68 (2.67")
Measuring Shaft:
Up to 110 lbf: 10-32
220 lbf: M6

Imada ZTS Series Specifications

General

Display	LCD
Sampling Rate	2000 Hz
Measurement Units	N, kgf, lbf
Data Output	USB, RS-232
Power Supply	AC adapter or battery
Battery Life	Approx. 8 hours
Operating Temperature	0°C to 40°C
Storage Temperature	-10°C to 50°C (14°F to 122°F)
Accuracy	+/- 0.2% F.S.
