Imada ZTS Series User Manual

11 REFERENCE SECTION — MULTI DISPLAY 2/2
page 33
0.0
0.0
0.0
0.0
0.0

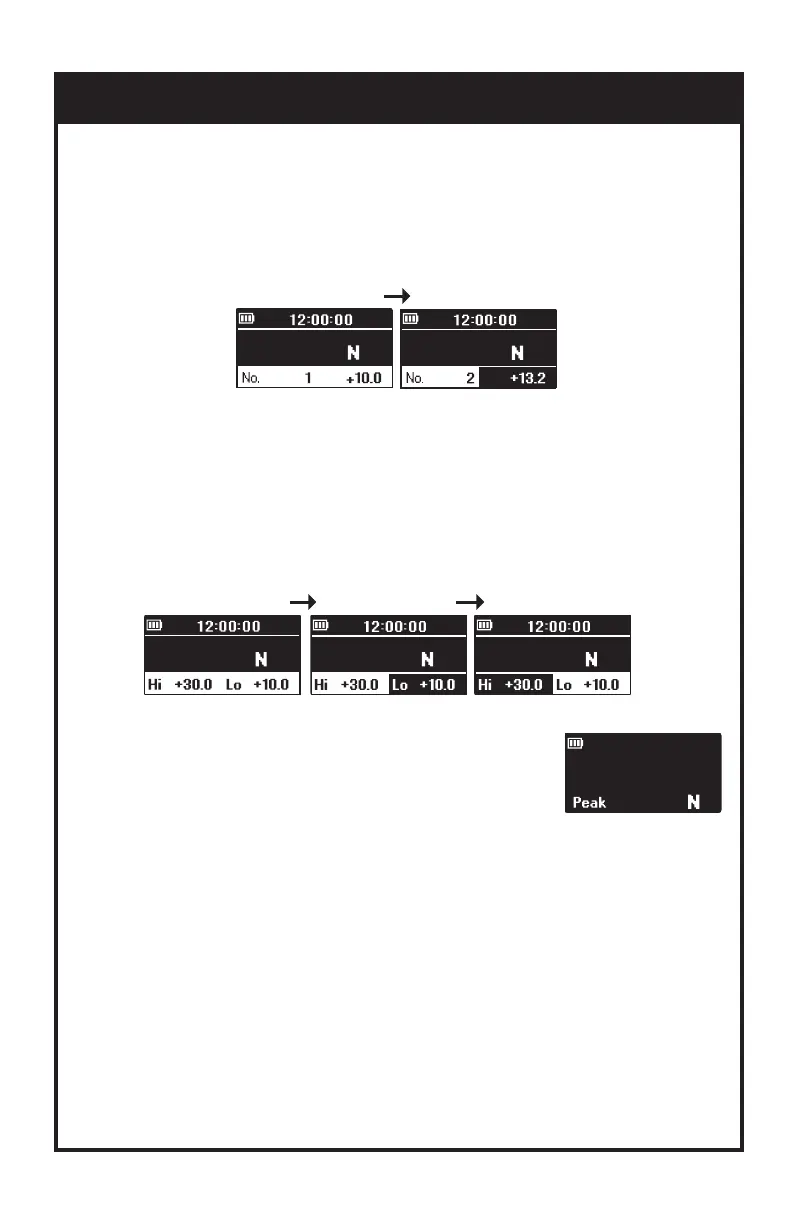

MEMORY NUMBER/VALUE NEXT STORED DATA
HIGH/LOW SETPOINTS CHANGE HIGH SETPOINT CHANGE LOW SETPOINT
Press (do not hold) MENU until high/low setpoints are highlighted.
Press
MENU again and high setpoint becomes highlighted. Press the
up (
ON/OFF) or down (ZERO) arrow keys to change the value.
Press
MENU again to highlight the low setpoint and the up or
down arrow keys to change the value. Press the
MENU key to exit.
Multi display highlighting must be off for proper gauge operation.
Selecting Single Display
Displays force value, unit, and peak indicator.
1. Press
ON/OFF to turn ON the gauge.
2. Press and hold the
MENU key two seconds to enter the
Program Menu.
3. Press the up (
ON/OFF) or down (ZERO) arrow keys to high-
light Display Functions then press the right arrow key to select.
4. Press the up or down arrow keys to highlight Display Format
then press the right arrow key (
PEAK), to select.
4. Press the up or down arrow keys to select Single Display and
press the
MENU key to input your selection.
5. Press the left arrow key until the door icon
# appears, then press
and hold
MENU two seconds to exit. Or press the left arrow
key and when ‘Exit Menu’ appears, press
MENU to exit.
0.0
When memory number/value are highlighted, press (do not hold)
the
MENU key and the data location number becomes highlighted.
Press the up (
ON/OFF) or down (ZERO) arrow keys to view other
locations and values if more than one are stored. If no data is stored
‘–’ appears. Press the
MENU key to highlight high/low setpoints.

Imada ZTS Series Specifications

General

Display	LCD
Sampling Rate	2000 Hz
Measurement Units	N, kgf, lbf
Data Output	USB, RS-232
Power Supply	AC adapter or battery
Battery Life	Approx. 8 hours
Operating Temperature	0°C to 40°C
Storage Temperature	-10°C to 50°C (14°F to 122°F)
Accuracy	+/- 0.2% F.S.
