Immergas AUDAX PRO 4 V2 - Installing the Outdoor Unit; Mount of Outdoor Unit

10 11
12 13
660
880
310 340
364
620
940
328 344
384
20 mm
AUDAX PRO 4-6 V2 AUDAX PRO 9 V2
16

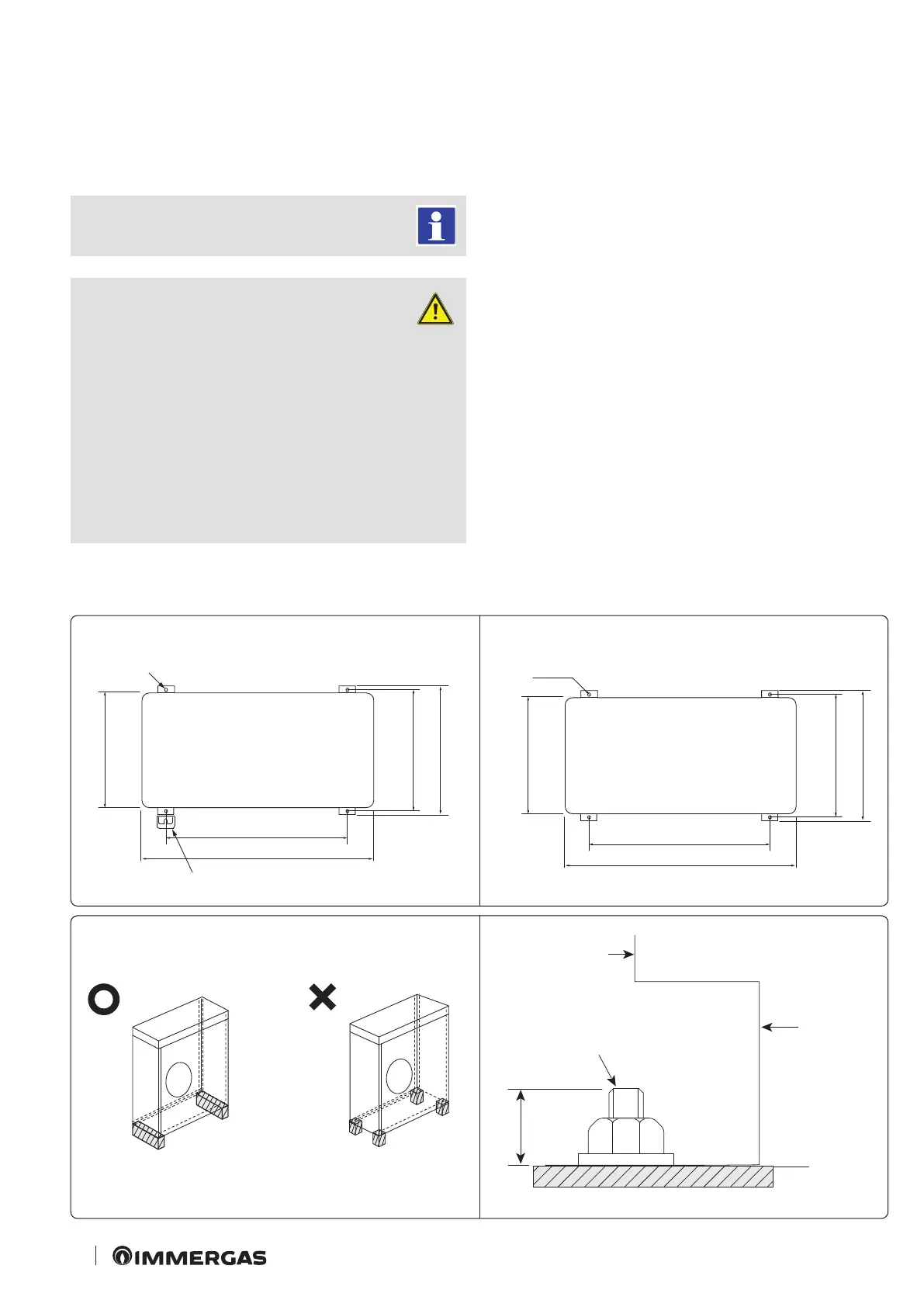

4.12 INSTALLING THE OUTDOOR UNIT.
e outdoor unit must be installed on a rigid and stable base to
prevent any increase in noise or vibration. In particular if the
outdoor unit needs to be installed in a position exposed to strong
winds or at a certain height, it must be appropriately secured to
the structure which supports it (oor or wall).
e anchor bolt must be at least 20 mm from the base
surface.
ATTENTION:
- when tightening the anchor bolt,
tighten the rubber washer so that
the connection part of the bolt to the
outdoor unit is not subject to corrosion.
- Make a discharge hole around the base for
drainage of the outdoor unit.
- If the outdoor unit is installed on the roof,
you must check the resistance of the ceiling
and waterproof the unit.
4.13 MOUNT OF OUTDOOR UNIT.
Outdoor unit installed on the wall with mount.
- Make sure that the wall is capable of bearing the weight of the
mount and of the outdoor unit.
- Install the mount as near as possible to the column.
- Install an adequate gasket to reduce noise and residual vibration
transferred from the outdoor unit to the wall.
(Unit: mm) (Unit: mm)
Anchor bolt hole
Rubber feet
Anchor bolt hole
Outdoor
unit
Anchor bolt
Base
surface
Mount of
outdoor
unit
