Immergas AUDAX PRO 4 V2 - Power Cable Connection Diagram

24
N
L
22
ATTENTION:
- the power cable must be connected to
the relative terminal and secured with
a clip.
- Power imbalance must not exceed 2%
of the rated voltage.
- If the imbalance is higher, the life of the
capacitor could be shortened. If the power
imbalance exceeds 4 % the supply power,
the indoor unit protection trips, the unit
stops and the error mode is indicated.
- To protect the product against water and
blows, the power cable and the connection
cable of the indoor and outdoor units must
be laid in conduits. (With an adequate pro-
tection rating IP and choice of materials for
the application made)
- Check that the main power connection is
performed by means of a switch which dis-
connects all the poles, with a contact opening
of at least 3 mm.
- e devices disconnected from the electric
mains must be completely disconnected in
the overvoltage category condition.
- Maintain a distance of 50 mm or more be-
tween the power cable and the communica-
tion cables.

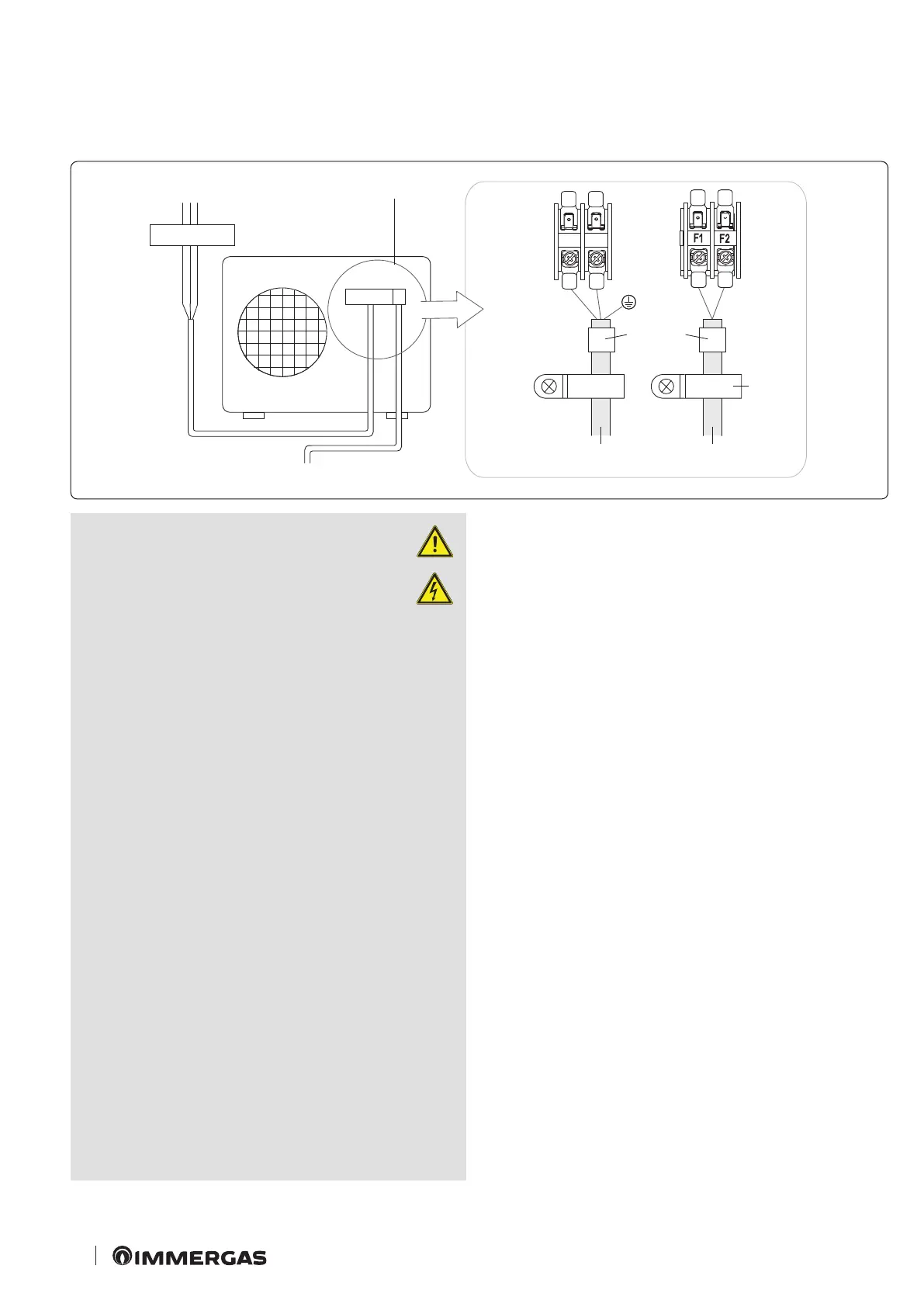

6.4 POWER CABLE CONNECTION DIAGRAM.
When using an earth leakage breaker (ELB) for a single phase
system.
Switch
Power supply
Electric components box
Clip
Clip for
cables
Communication
cable
Network cable
Indoor unit
