Chapter 4 Parts 103
Miscellaneous

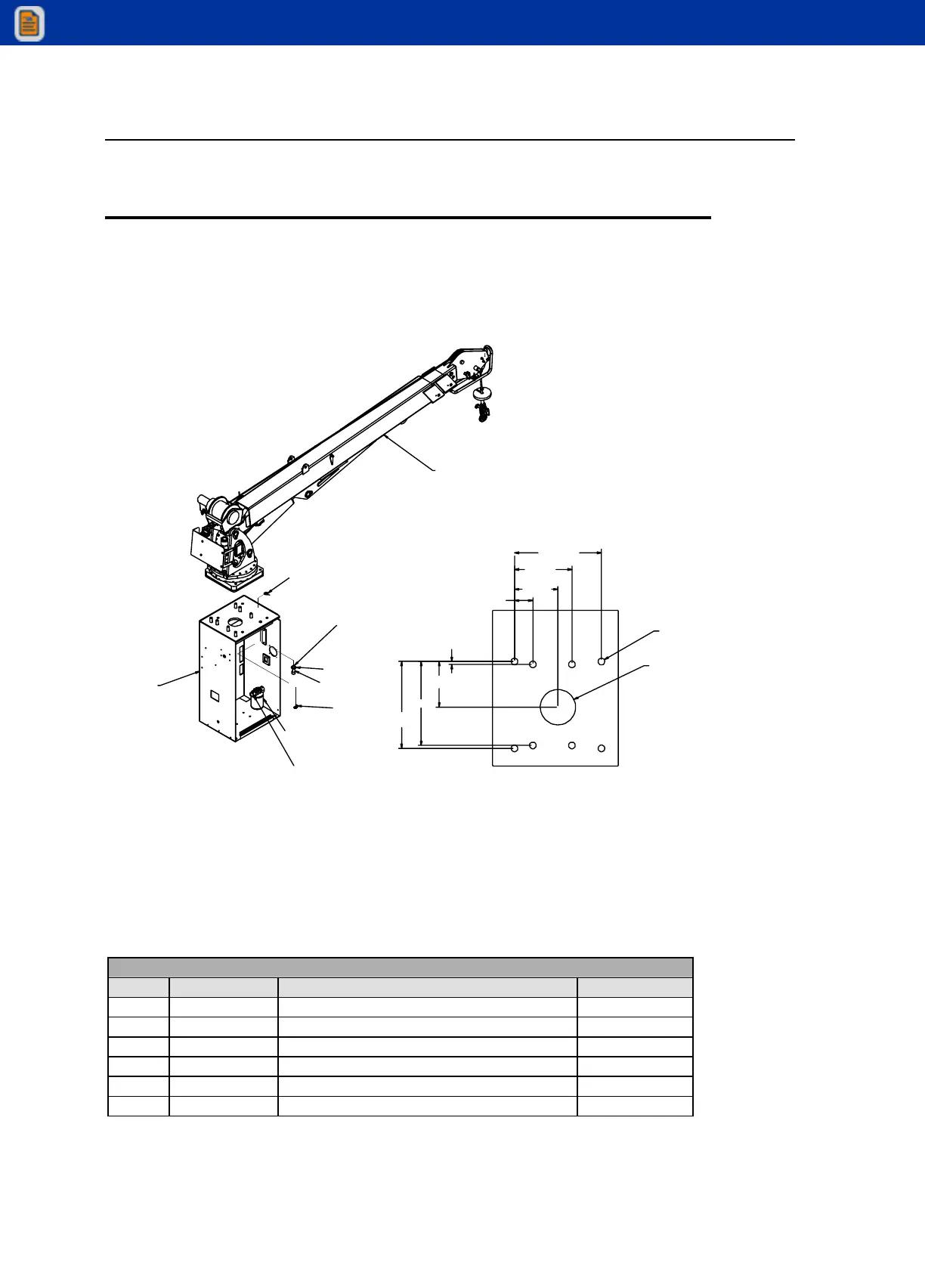

Installation Kit (93719174)
2
1
4
3
5, 6
CRANE (REF)
TORQUE TO
680 FT-LB
PLUMB HYDRAULIC
FILTER INTO
RETURN LINE
CRANE
MOUNTING
BOX (REF)
8 HOLES
(1.13" DIA.)
THROUGH
6.0" DIA. HOLE
THROUGH
MOUNTING HOLES AS VIEWED
FROM TOP OF CRANE
BACK OF CRANE
14.75"
9.75"
7.38"
3.13"
0.50"
7.75"
14.25"
14.75"
NOTES:
1 Install item #1 with tethered remote system. Not required for radio remote system.
2 Item #2, boom level indicator, is designed to tell the crane operator if the crane base is level. Install boom level
indicator on the crane box or other visible location.
93719174 PARTS LIST
ITEM PART # DESCRIPTION QUANTITY
1. 60127880 BRKT-CABLE TETHER 1
2. 72042097 BOOM LEVEL INDICATOR 1
3. 72063066 WASHER 1.00 FLAT HI STR 8
4. 72601748 CAP SCREW, SOCK HD 0.495" 8
5. 73052091 FILTER-HYD RET 10MIC 1.25 NPTF 1
6. 73052092 ELEMENT-HYD FILTER 10MIC(SPIN) 1
NEW 20050103
