88 Model 5525-6025-6625 Parts & Specifications Manual Part # 99903688
Controls

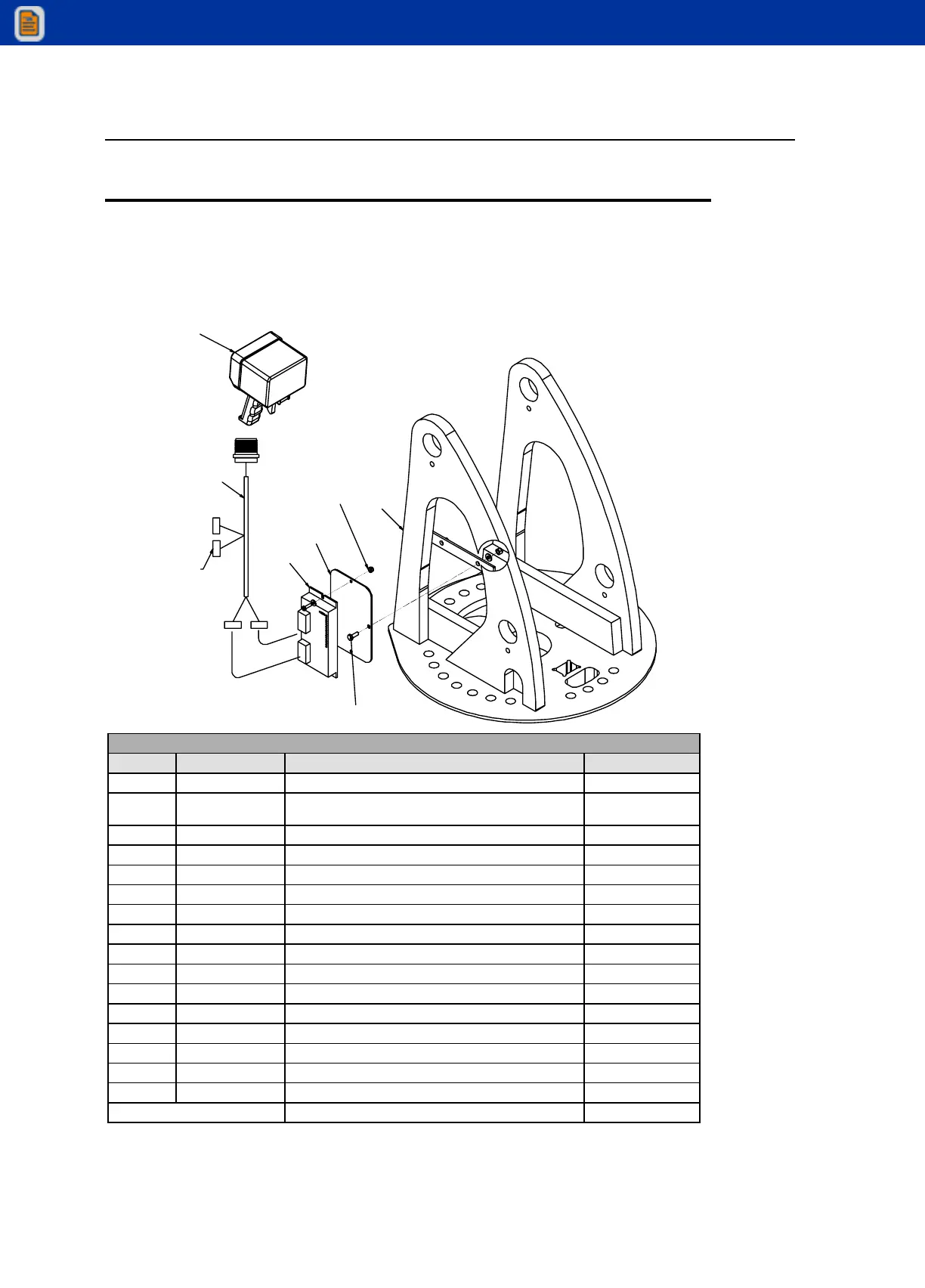

Controls Installation, Tethered (Kit 90719399/Dwg. 99903697)
1
14
15
16
12
ROUTE HARNESS
THROUGH CRANE
BASE. MOUNT
WITH PARTS
4,12-15.
CONNECT TO
HARNESS
(FROM
VALVEBANK)
6,7,8(2 PLCS)
3,4,5 (2 PLCS)
90719399 TETHERED CONTROLS PARTS LIST
ITEM PART # DESCRIPTION QUANTITY
1. N/A MAST WLDMNT 1
2. 51719412 HARDWARE KIT - TELE CRANE, TETH
CONTROLS (INCL 3-11)
REF
3. 72601827 CAP SCR-SS .25-20X .75 HH GR5 2
4. 72063166 WASHER-SS .25 R WRT18-8 .62OD 2
5. 72062194 NUT-SS .25-20 NYLOC 2
6. 72060636 SCR-MACH#10-24X .75 RDH PH Z 2
7. 72062106 NUT 10-24 HEX NYLOCK 2
8. 72063000 WASHER .19 W FLAT ANSI B27.2Z 2
9. 77044645 NUT-DEUTSCH 24 SHELL112263-90 1
10. 77044646 WASHER-LOCK DEUTSCH 112264 1
11. 72601330 CAP SCR-SS .25-20X 1.00 HH 2
12. 51719470 HANDLE ASSEMBLY 1
13. 60119299 BRACKET-MTG 1
14. 60128881 BRACKET-CONTROLLER 1
15. 71411554 TETHER LOGIC MODULE 1
16. 77441164 HARNESS-TETHER 1
REV. B 20050513
