IMT 5525 - Winch Drum Weldment (52719305) (Used through 4-15-05)

74 Model 5525-6025-6625 Parts & Specifications Manual Part # 99903688

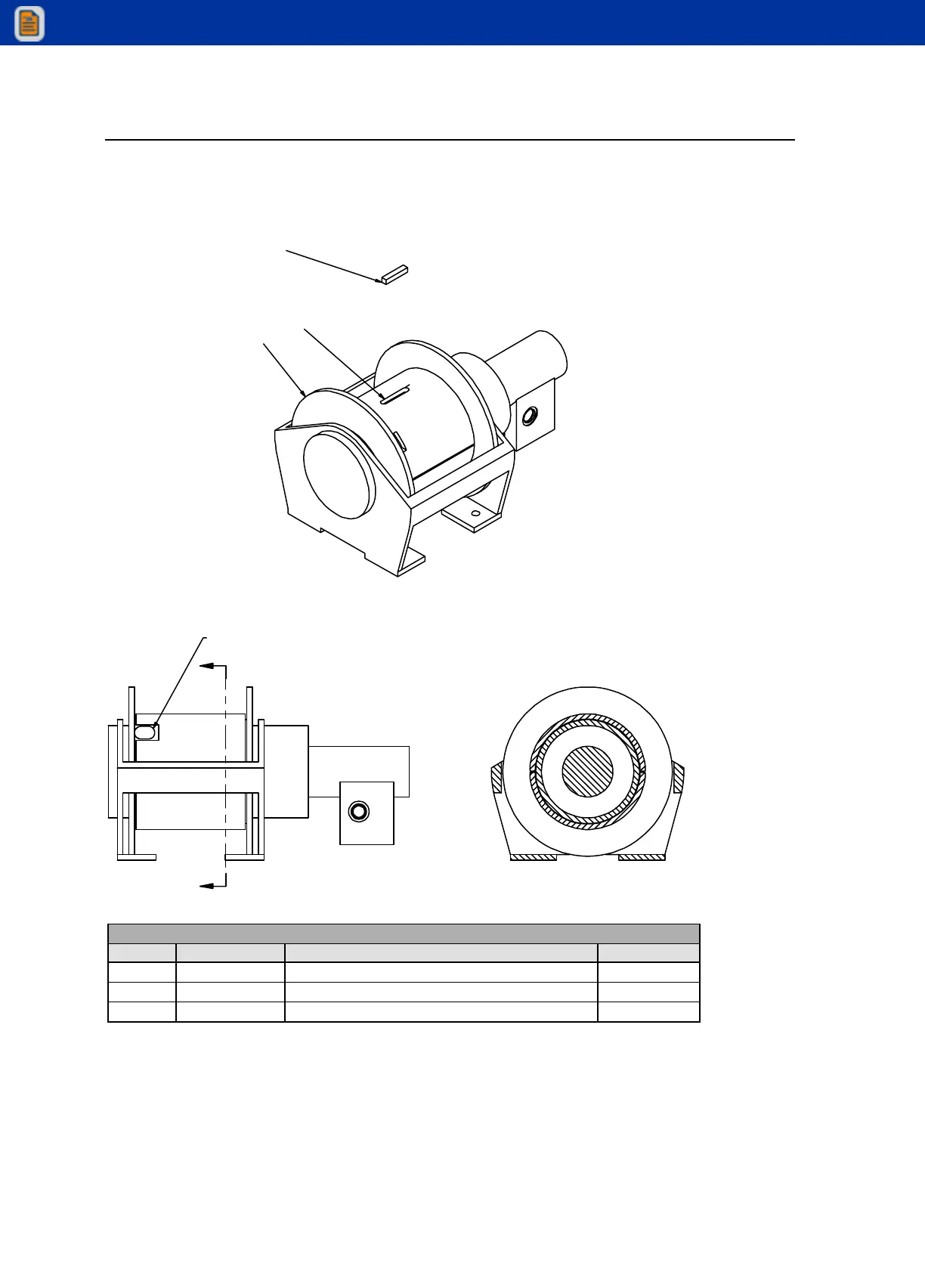

Winch Drum Weldment (52719305) (Used through 4-15-05)
SECTION A-A
SCALE 0.44:1
A
A
3
1
2
CABLE SLOT ON DRUM
52719305 PARTS LIST
ITEM PART # DESCRIPTION QUANTITY
1. 70570761 WINCH, 5500 LB 1
2. 60128178 SLEEVE, WINCH DRUM 1
3. 60128184 KEY 1
NEW 20040207
