IMT 5525 User Manual

Chapter 4 Parts 41

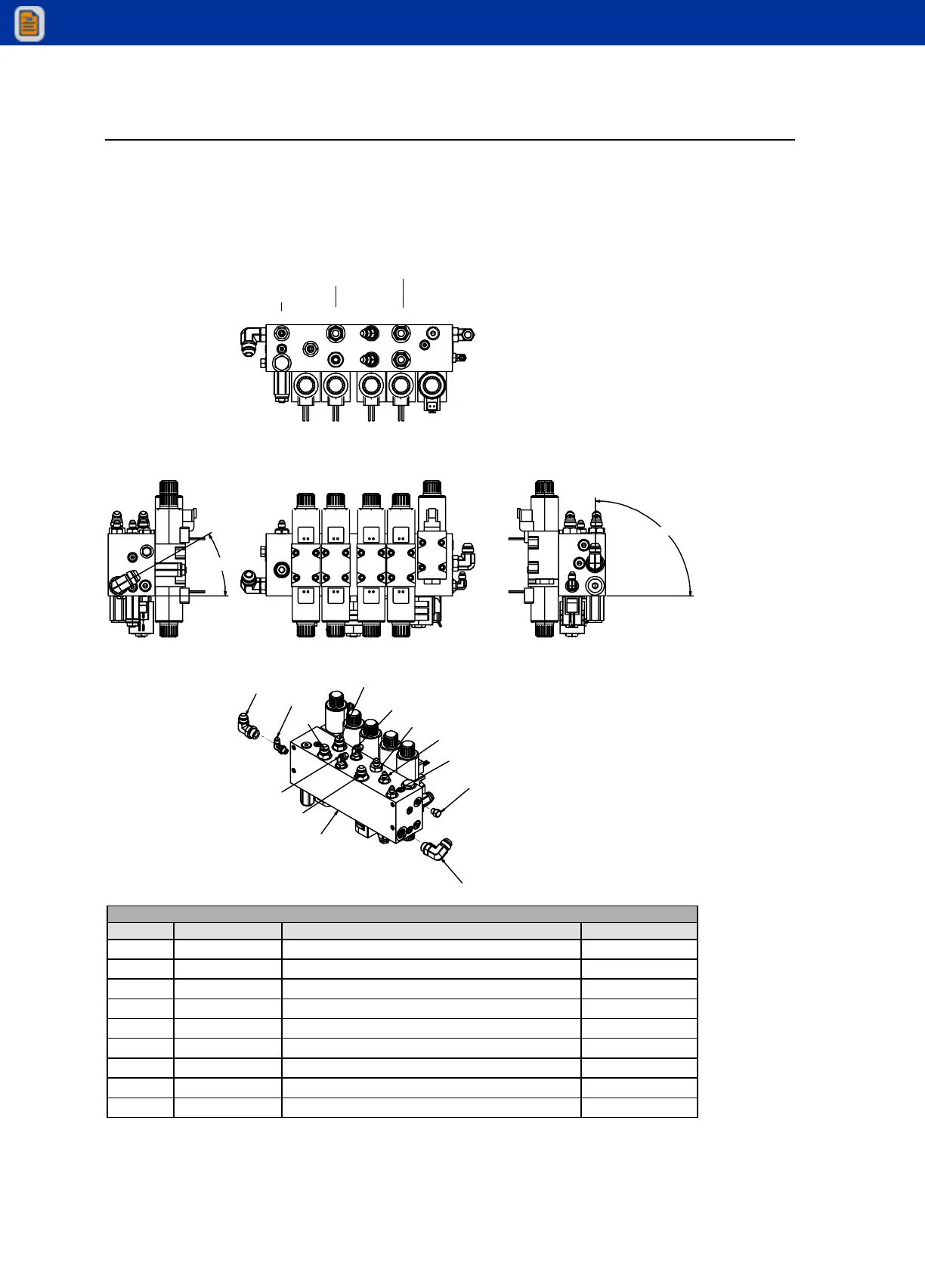

Valve Body Assembly (51719127) (Primary Configuration)
IN
UP
OUT
DNDN
UP
8
7
9
1
2
6
6
3
3
5
6
4
4
30°
90°
RETURN
PRESSURE
WINCH BRAKE
ROTATION
WINCH
LOWER
CYL
EXT
CYL
CCW
CW
51719127 PARTS LIST
ITEM PART # DESCRIPTION QUANTITY
1. 72053758 ELBOW-M STR/90/M JIC 4 4 1
2. 72053763 ELBOW-M STR/90/M JIC 8 8 1
3. 72053776 ELBOW-M STR/45/M JIC 6 6 2
4. 72532353 ADPTR-M STR/M JIC 6 4 2
5. 72532356 ADPTR-M STR/M JIC 8 6 1
6. 72532358 ADPTR-M STR/M JIC 8 8 3
7. 72532522 PLUG-STR HEX HD STL .44 1
8. 72533507 ELBOW-M STR/90/M JIC 8 10 1
9. 73733947 VALVE BANK ASM 1
NEW 20050328
