Chapter 4 Parts 97

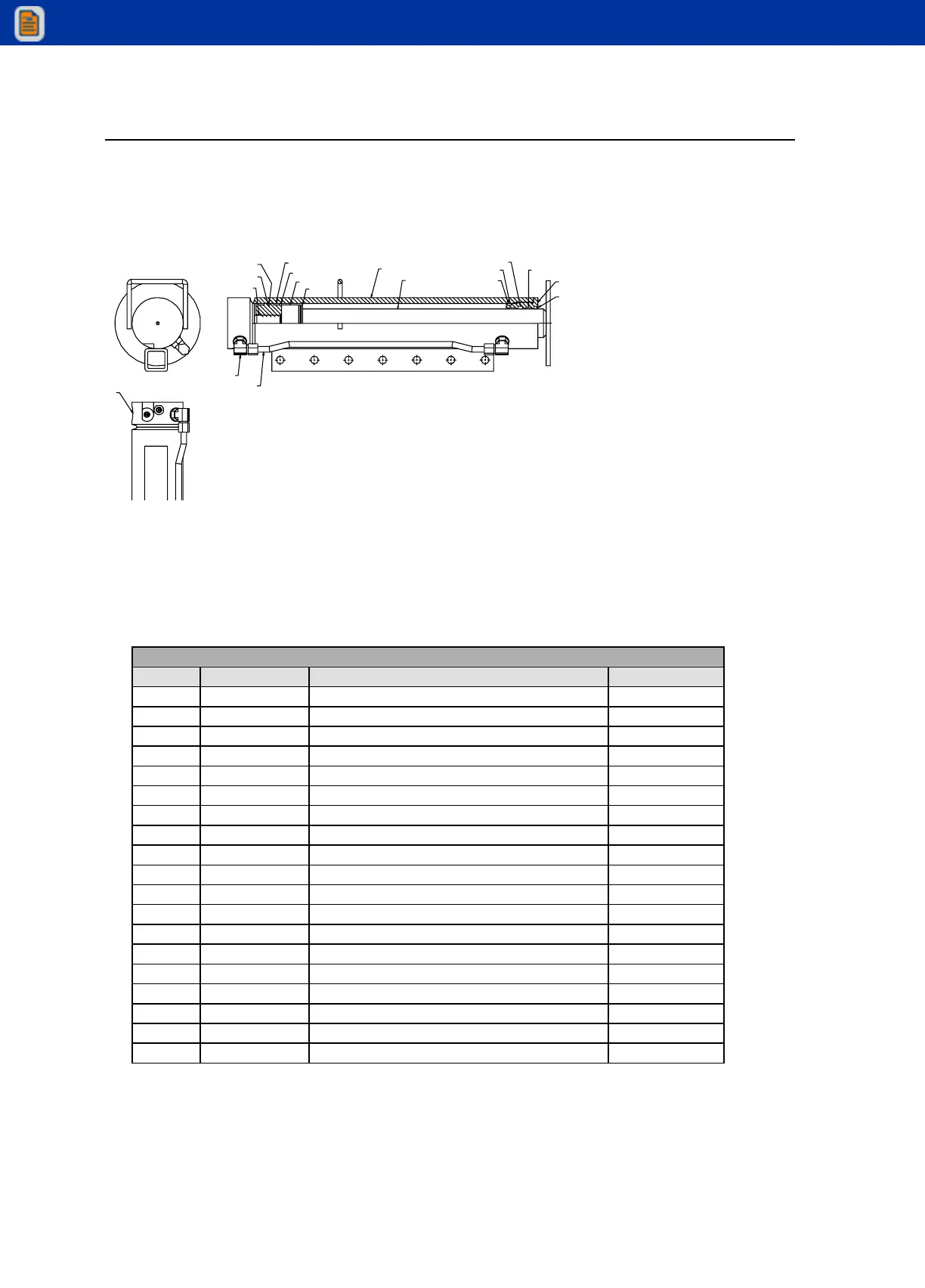

Cylinder, Power Down (3B205010)
4
3(2)
5
15
17
14
11
9
8
13(2)
7
19
16
1
2
10(2)
6
12
NOTES:
1 TO REDUCE DOWNTIME, REPLACE ALL COMPONENTS OF THE SEAL KIT WHENEVER THE CYLINDER IS
DISASSEMBLED.
2 APPLY “LUBRIPLATE #630-2” MEDIUM HEAVY,MULTI-PURPOSE LUBRICANT OR EQUIVALENT TO ALL
PISTON AND HEAD GLANDS, LOCK RING AND ROD THREADS BEFORE ASSEMBLY.
3 USE ANTI-SEIZE LUBRICATING COMPOUND OR EQUIVALENT BETWEEN THE HEAD AND THE CASE
WHEN ASSEMBLING THE CYLINDER.
3B205010 PARTS LIST
ITEM PART # DESCRIPTION QUANTITY
1. 4B205010 CASE ASY 1
2. 4G048870 ROD ASY 1
3. 72053763 ELL #8MSTR #8MJIC 90° 1
4. 73054681 CHECK VALVE 1
5. 5P288970 PORT TUBE 1
6. 6HD35025 HEAD 1
7. 6ID35125 PISTON 1
8. 7Q072338 O-RING 1REF
9. 7Q10P338 BACKUP RING 1REF
10. 7T2NX427 WEAR RING 2REF
11. 7R546025 U-CUP SEAL 1REF
12. 7R14P025 ROD WIPER 1REF
13. 7T2NX435 PISTON RING 2REF
14. 7T61N125 NYLON LOCK RING 1REF
15. 7T66P035 PISTON SEAL 1REF
16. 6A025025 WAFER LOCK 1REF
17. 7Q072151 O-RING 1REF
18. 9D142020 SEAL KIT (INCL. 8-17) 1
19. 6C015025 STOP TUBE 1
REV. A 20040115
