Chapter 4 Parts 61

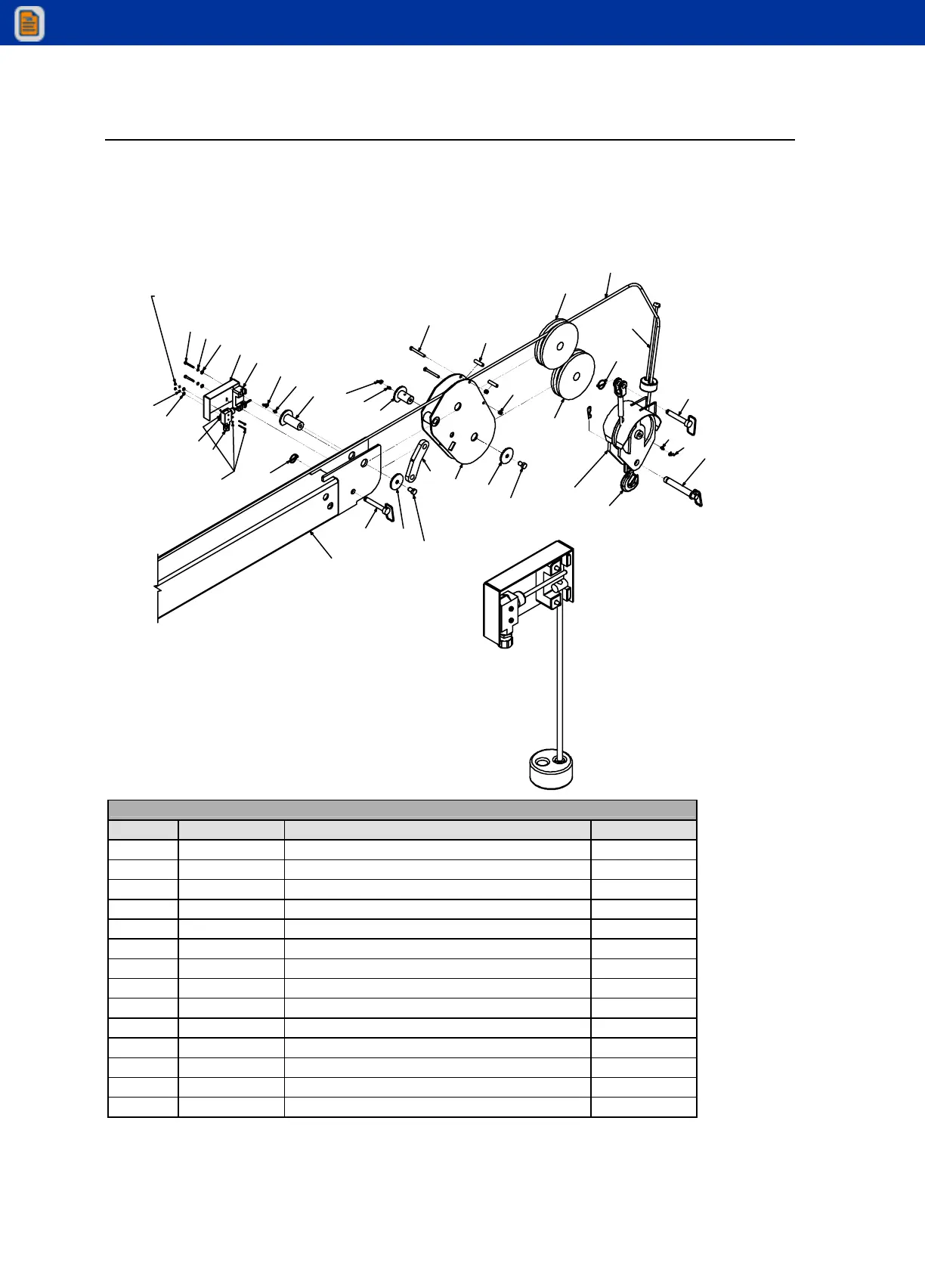

Flip Sheave Assembly (99904248)
1
16
23
22
21
17
15
20
27
12
4
11
10
6
5
3
12
27
7
9
13
6
5
2
8
8
18
11
14
10
12
27
26
25
19
24
29
28
DOUBLE LINE
CONFIGURATION SHOWN
SUPPLIED WITH
ITEM #15, SWITCH
SUPPLIED
WITH ITEM #15,
SWITCH
SWITCH
DETAIL
99904248 PARTS LIST
ITEM PART # DESCRIPTION QUANTITY
1. 52720362 BOOM-2nd STAGE EXT WLDMT 1
2. 52709455 SHEAVE-WLDMT (FLIP) 1
3. 52707730 PIN-TYPE M 1.50X 2.50 1
4. 52709438 PIN-TYPE M 1.50X 3.50 1
5. 72060147 CAP SCR .62-11X 1.00 HH GR5 Z 2
6. 60109337 RETAINER PLT-PIN 3.00 DIA 2
7. 60102596 SPACER- .38 BLK PIPE X 2.00 2
8. 60030255 SHEAVE- 9.00 NYLATRON GSM 2
9. 72062103 NUT .38-16 HEX NYLOCK 2
10. 72661514 PIN- .75X 4.50 LG 2
11. 72661543 PIN-QUICK 316-10QP 2
12. 72053508 ZERK-NPT .12 3
13. 60130291 LINK-FLIP SHEAVE 1
14. 70580143 CABLE ASM 1
