36 Model 5525-6025-6625 Parts & Specifications Manual Part # 99903688

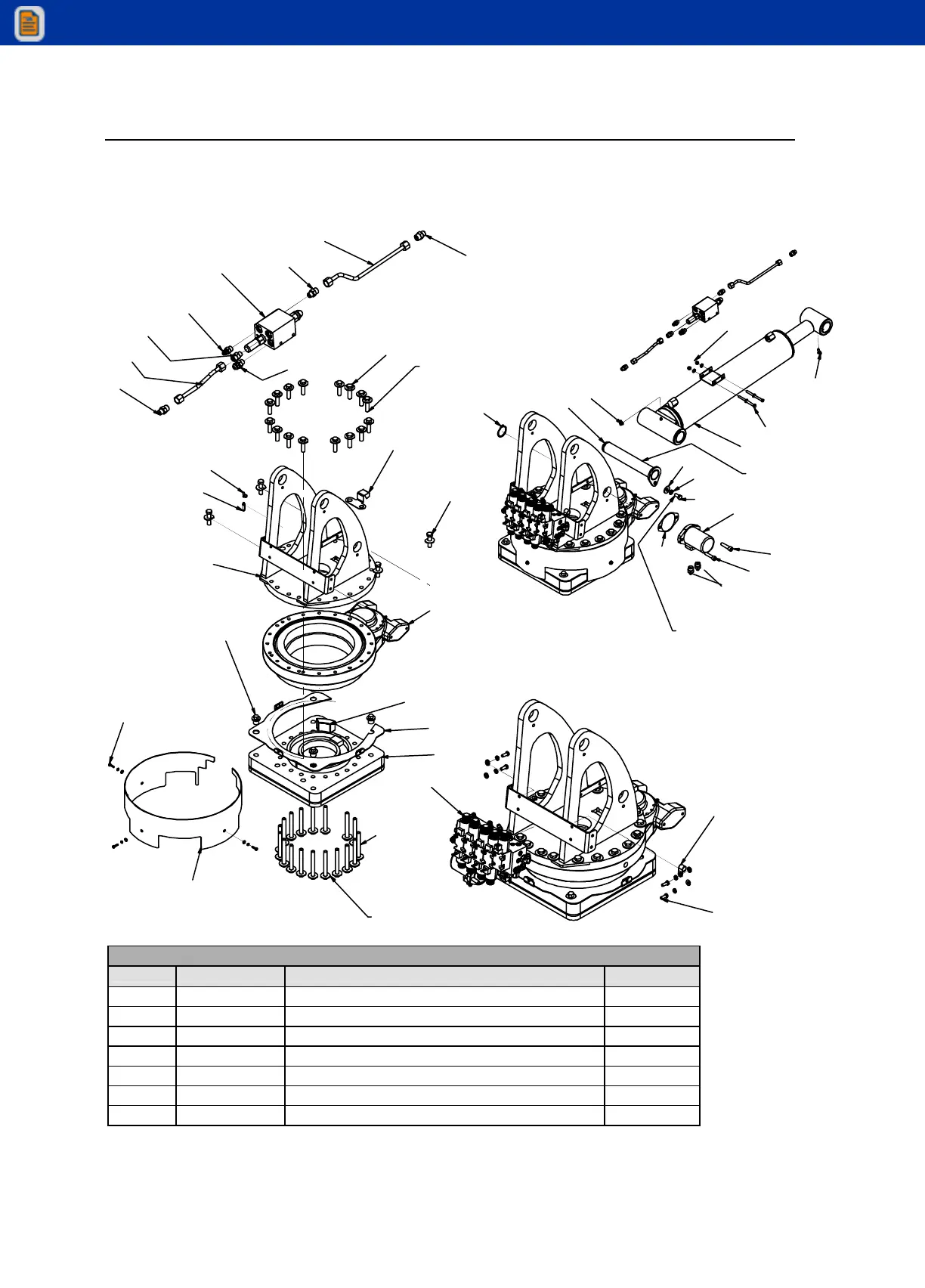

Base & Mast Assembly (99903694) (Alternate Configuration)
16
16
14
28
26
20
21
41
43
8
13
21
9
36
42
12
39
37
38
39
11
33
15
4
7
6
5
16
17
3
39
39
29,30,31
(3 PCS)
TORQUE TO
160 FT-LB
27,35
(18 PCS)
19,24,25
(4 PCS)
USE BLUE
THREAD LOCK
10 (4 PCS)
27,34
(16 PCS)
TORQUE TO
160 FT-LB
USE ANTI-SEEZ
32,34
(4 PCS)
18,22(2)
40
23
(4 PCS)
BASE & MAST ASSEMBLY PARTS LIST (99903694)
ITEM PART # DESCRIPTION QUANTITY
1. 51719410 KIT-HRDWR (ITEMS 16-36) 1
2. 91719430 HOSE KIT (ITEMS 37-40) 1
3. 51719469 VALVE BODY ASY W/FITTINGS 1
4. 52718741 PIN 1
5. 52719409 BASE WLDMNT 1
6. 52719411 MAST WLDMNT 1
7. 52719441 GEAR GUARD WLDMNT 1
To Next Page
