26 Model 5525-6025-6625 Parts & Specifications Manual Part # 99903688

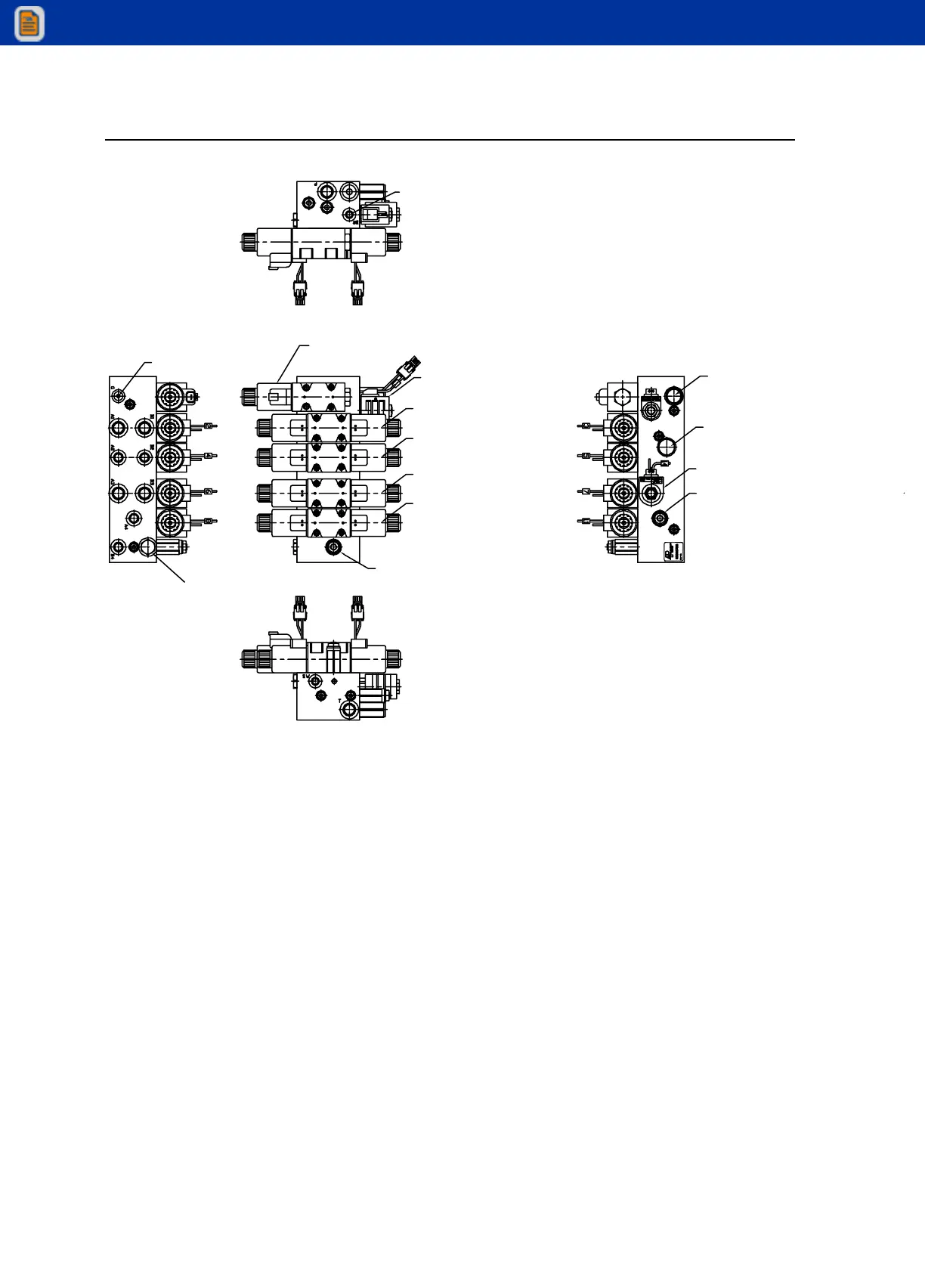

Valve F- Winch Brake Vent V alve
Cartridge Torque - 30 ft-lb
Coil Nut Torque - 15 - 45 in-lb
Valve B- Winch On/Of f V alve
Capscrew Torque - 50 in-lb
Valve C- Extend On/Off Valve
Capscrew Torque - 50 in-lb
Valve D- Lif t On/Of f V alve
Capscrew Torque - 50 in-lb
Valve E- Swing On/Off Valve
Capscrew Torque - 50 in-lb
Valve 1- Sw ing Counterbalance Valve
Cartridge Torque 30 ft-lb
ValveG-MainReliefValve
Cartridge Torque 30 ft-lb
Valve H- High Speed Valve
Cartridge Torque - 30 ft-lb
Coil Nut Torque - 6 ft-lb
Valve I- Sw ing Counterbalance Valve
Cartridge Torque - 30 ft-lb
Cavity Plug (f or option)
Cartridge Torque - 30 ft-lb
Valve A- Proportional Valve
Capscrew Torque - 50 in-lb
Valve J- Sw ing Brake Shuttle Valve
Cartridge Torque - 30 ft-lb
Inlet Gauge Port
Winch Brake Vent Port
