Chapter 4 Parts
81

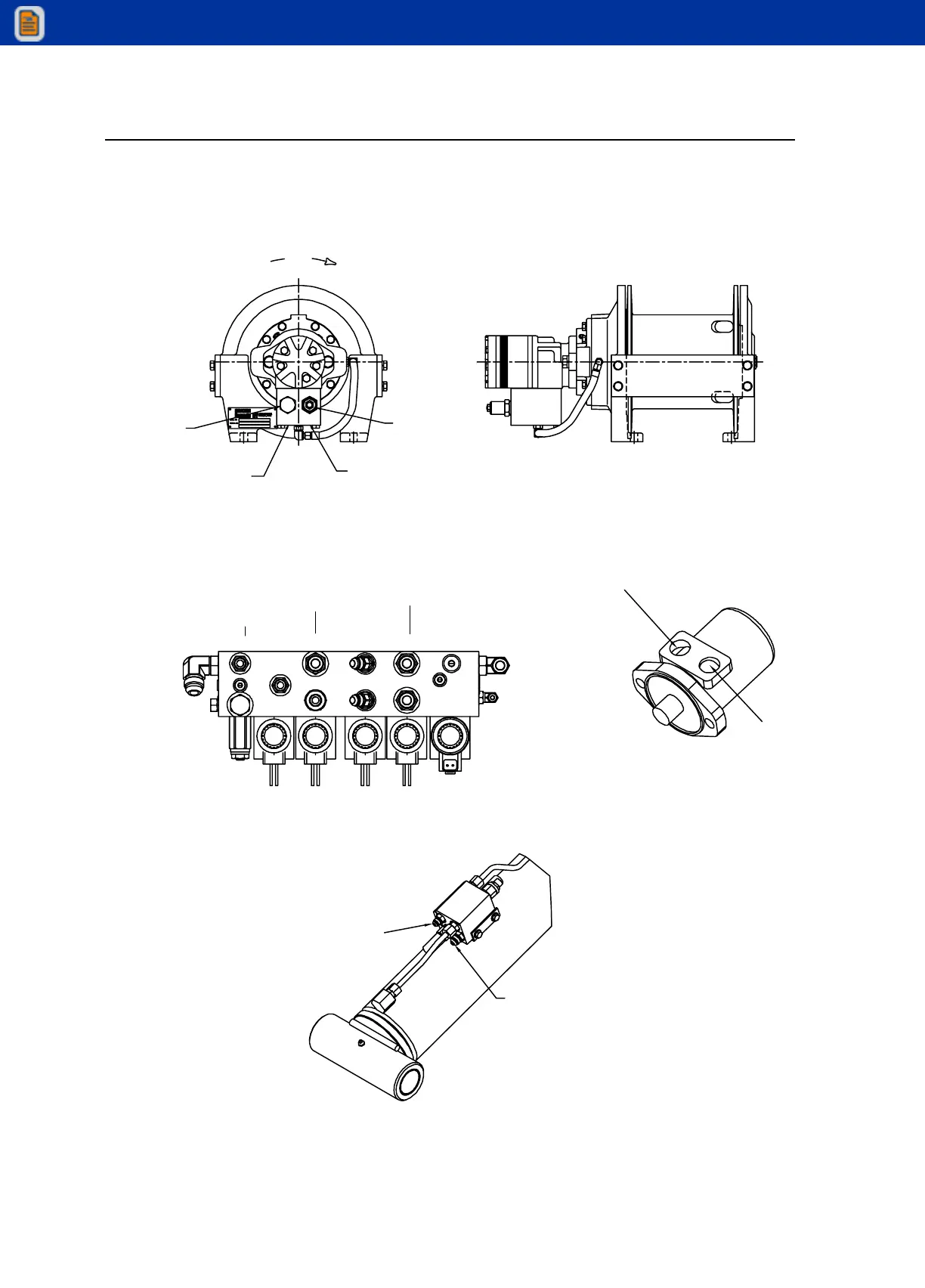

99903699 DRAWING
IN
UP OUT UP
DN
DN
RETURN
PRESSURE
WINCH
BRAKE
ROTATION
WINCH
LOWER
CYL
CCW
VAL
VE
BAN
K
ASSEMBL
Y
TO
P
V
I
E
W
UP
P
ORT
DOW
N
PO
R
T
LOW
ER
CY
L
INDE
R
PO
R
T
B
PO
R
T
A
HY
DRA
ULIC
MOT
OR
U
P
P
O
RT
(V1)
SAE-
1
0
O
R
B
(7/
8-14
T
HD
)
D
OWN
POR
T
(V2)
SAE-
1
0
O
R
B
(7/
8-14
T
HD)
HOIS
T
PO CHECK
COUNTER-
BALANCE
VALVE
EXT
CYL
CW
View thousands of Crane Specifications on FreeCraneSpecs.com
View thousands of Crane Specifications on FreeCraneSpecs.com
82
84
Table of Contents
Default Chapter
3
Table of Contents
3
Revisions
5
Introduction
7
Specifications
9
General Specifications
10
System Specifications
11
Geometric Configuration, 5525-6025-6625
13
Capacity Chart, 5525
14
Capacity Chart, 6025
15
Capacity Chart, 6625
16
Reduced Capacity Lift Charts
17
Stability Confirmation Process
18
Crane Reference
21
5525-6025-6625 Assemblies & Grease Zerk Locations
22
Recommended Spare Parts List
23
Crane Installation
24
Hydraulic Installation
25
Crane Control
26
Control Valve Hydraulic Layout & Torque Values
27
Control Valve Troubleshooting Chart
29
Parts
31
Parts Information
32
Primary and Alternate Base Configurations
34
Base & Mast Assemblies
36
Base & Mast Assembly (99903692) (Primary Configuration)
36
Base & Mast Assembly (99903694) (Alternate Configuration)
38
Gear Rotator (71056608) (Alternate Configuration)
40
Valve, Counterbalance (73540094)
42
Valve Body Assembly (51719127) (Primary Configuration)
43
Valve Body Assembly (51719469) (Alternate Configuration)
44
Valvebank (73733947)
45
Gear Rotator (71056577)
47
Cylinder, Lower, 5525 (71411457)
49
Cylinder, Lower, 6025 (71410929)
51
Cylinder, Lower, 6625 (71411458)
53
Boom Assemblies & Cylinders
55
Boom Assembly (99903756) (Eff. 12-20-06)
55
Boom Assembly (99903624) (through 12-19-05)
59
Flip Sheave Assembly (99904248)
63
Crane Reach Retrofit Kits
65
Cylinder Assembly, Extension (71410928)
66
Cord Reel Assembly (51713168)
68
Crane & Winch Assemblies
69
Crane & Winch Assembly (99903693) (Primary Configuration)
69
Crane & Winch Assembly (99903695) (Alternate Configuration)
72
Winch (70570761) (Used through 4-15-05)
74
Winch Drum Weldment (52719305) (Used through 4-15-05)
76
Winch Performance (70570771)
77
Winch Oil Specifications
78
Hydraulic and Electrical System
79
Hydraulic Installation, Primary Configuration (99903690)
79
Hydraulic Installation, Alternate Configuration (99903699)
82
Electrical Harness, Radio Remote (77441131)
85
Electrical Schematic, Radio Remote (77441131)
86
Electrical Harness, Tethered Remote (77441164)
87
Electrical Schematic, Tethered (77441164)
87
Handle Assembly, Tethered Remote W/Engine Start (51719470)
88
Controls
90
Controls Installation, Tethered (Kit 90719399/Dwg. 99903697)
90
Controls Installation / Radio Remote (Kit 90719400/Dwg. 99903697)
91
Auxiliary Outrigger Assemblies and Valvebanks
92
Outrigger, Power Out/Power Down, 7X5 (31712739)
93
Outrigger, Manual Out/Power Down, 7X5 (31712740)
95
Outrigger, Manual Out/Crank Down, 7X5 (31712741)
97
Outrigger, Manual Out/Manual Down, 7X5 (31712902)
98
Cylinder, Power down (3B205010)
99
Cylinder, Power out (71411797) (Used 9-05 to 1-07)
100
Cylinder, Power out (3B142860) (Effective 2-07, Prior to 8-05)
102
Valve Bank, 2-Section (51714813)
103
Valve Bank, 3-Section (51714812)
104
Miscellaneous
105
Installation Kit (93719174)
105
Decal Kits & Installation (99903698)
106
Boom Support, Adjustable, 3820-5020-5525-6025 (51718848)
109
Chassis Wiring Harness (99903340)
110
General Reference
111
Inspection Checklist
112
Deficiency / Recommendation / Corrective Action Report
116
Wire Rope Inspection & Replacement
118
Hook Inspection
119
Holding Valve Inspection
120
Anti-Two-Block Device Inspection
120
Thread Torques
121
Turntable Bearing Thread Tightening Sequence
124
Turntable Bearing Inspection for Replacement
125
Turntable Bearing Tilt Test
125
