2 opEration
Service Manual
Yate Production Dryers
Edition
2006.09.21
2. OPERATING LOGIC:
2
1
3
4
5
6
7
8
9

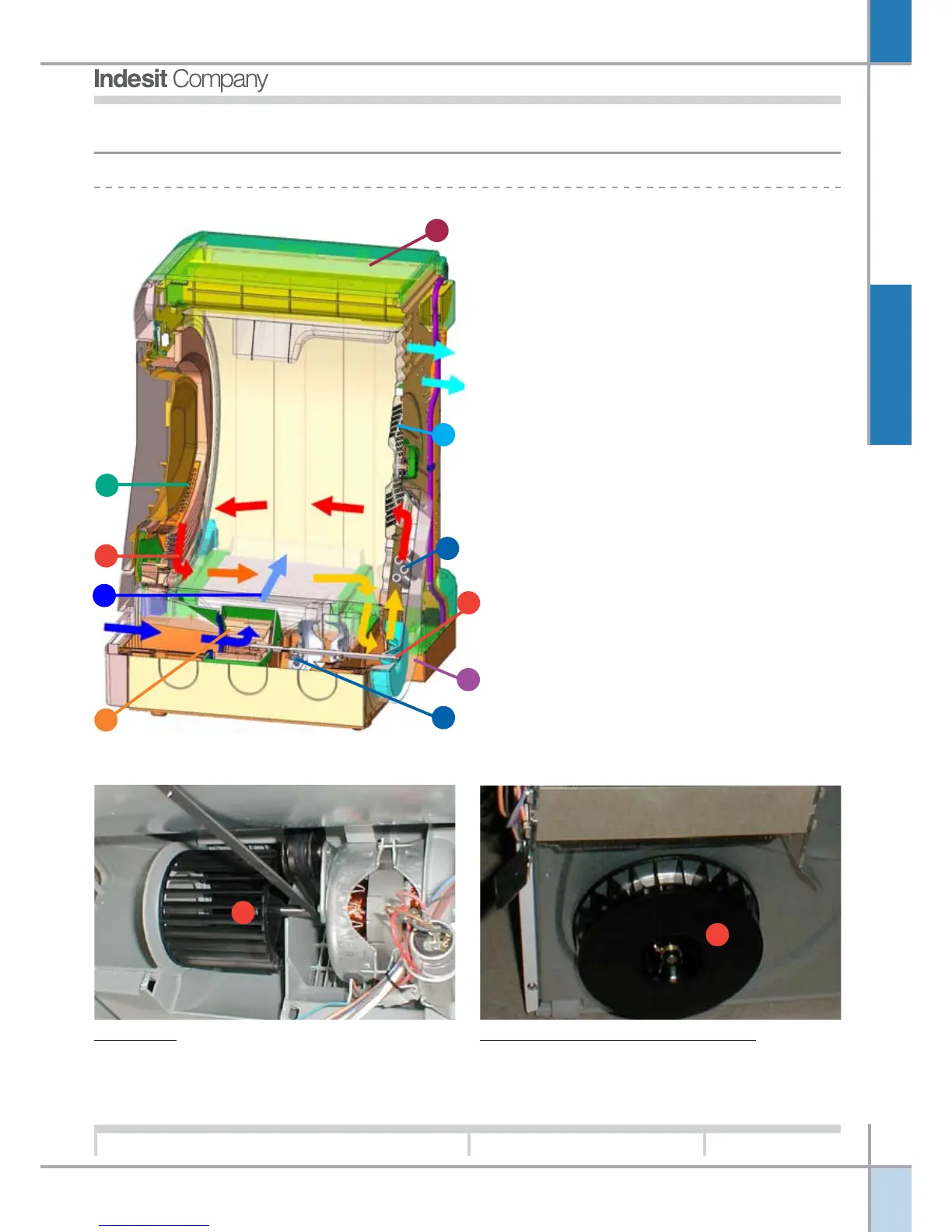

2.1 CONDENSER DRYING CYCLE AND CIRCULATION OF EXTERNAL AIR - STEAM - WATER
1 Filter
2 Condenser steam inlet
3 Condenser
4 Front fan
5 Tray collecting water produced by condensation
of steam
6 Heating elements
7
Holes admitting hot air to drum
8 Pump and hoses
9 Motor
10 Rear fan
The motor sets the drum in rotation, as well as driving
two fans mounted coaxially with the motor shaft.
The front fan draws in cold air from outside the ma-
chine and directs it into the condenser.
The rear fan blows air through the heating elements
and into the drum.
The drum rotates clockwise and counterclockwise in
alternation; the alternating sequence is programmed
electronically or timed electromechanically.
When the drum rotates counterclockwise to di-
sentangle the clothes, the heating elements are
deactivated.
Front fan Rear fan and heating elements
Hot air blown by the fan enters the drum through the holes in the rear, causing the moisture in the fabrics
to turn to steam.
10
10
4
