4.2 ARISTON ELECTROMECHANICAL VENTED MODELS
13
SWITCH RATINGS TIMER

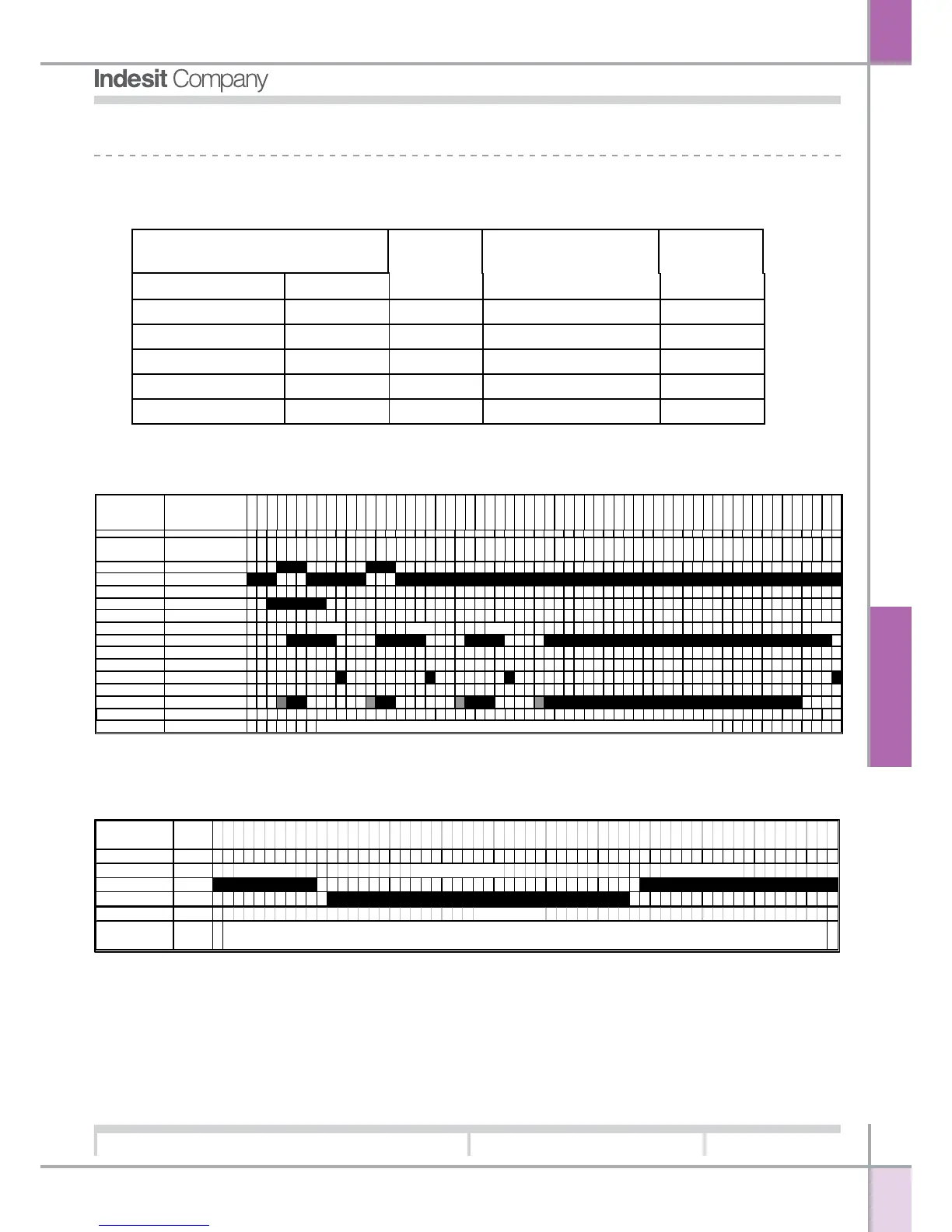

MAIN TIMER SEQUENCE CHART
CONTACT / TERMINAL RATING COMPONENT
SWITCHED
MAX.
CURRENT
Invensys EC Elbi 5000
C3 – C2 C3 –C4 16(4)A TIMER MOTOR <1A
C3 – C1 C3 – C5 16(4)A TIMER MOTOR <1A
A1 – A3/A4 B3 – B4 16(4)A MOTOR & HEATER 10A
B3/B4 – B1 A4 – A5 16(4)A HEATER 9.2A
B9/B10 – B11 B1 – B2 16(4)A BUZZER < 1A
3
140 min s 130 min s 120 min s 110 min s 100 min s 90 mins 80 mins 70 mins 60 mins 50 mins 40 mins 30 mins 20 mins 7.5 min s
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60
2.5 min 2.5 min 2.5 min 2.5 min 2.5 min 2.5 min 2.5 min 2.5 min 2.5 min 2.5 min 2.5 min 2.5 min 2.5 min 2.5 min
5 min 5 min 5 min 5 min 5 min 5 min 5 min 5 min 5 min 5 min 5 min 5 min 5 min 5 min 5 min 5 min 5 min 5 min 5 min 5 min 5 min 5 min 5 min 5 min 5 min 5 min
2.5 min 2.5 min 2.5 min
Auto
C 3 - C 1 (C 3 - C 4)
Timed
C 3 - C 2 (C 3 -C 5 )
stat select
A 9 - A 11 (A 1 - A 2)
*1 *1 *1
*1
Timer & Motor
A 1 - A 3 (B 3 - B 4 )
Buzzer
B 1 0 - B 1 1 (B 2 - B 1)
Heater
B 3 - B 1 (A4 - A5 )
Note *1: the programme cam should advance to the next step before the timer stops
13
SWITCH RATINGS TIMER
MAIN TIMER SEQUENCE CHART
CONTACT / TERMINAL RATING COMPONENT
SWITCHED
MAX.
CURRENT
Invensys EC Elbi 5000
C3 – C2 C3 –C4 16(4)A TIMER MOTOR <1A
C3 – C1 C3 – C5 16(4)A TIMER MOTOR <1A
A1 – A3/A4 B3 – B4 16(4)A MOTOR & HEATER 10A
B3/B4 – B1 A4 – A5 16(4)A HEATER 9.2A
B9/B10 – B11 B1 – B2 16(4)A BUZZER < 1A
3
140 mins 130 mins 120 mins 110 mins 100 mins 90 mins 80 mins 70 mins 60 mins 50 mins 40 mins 30 mins 20 mins 7.5 mins
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 5 0 51 52 53 54 55 56 57 58 59 6 0
2.5 min 2.5 min 2.5 min 2.5 min 2.5 min 2.5 min 2.5 min 2.5 min 2.5 min 2.5 min 2.5 min 2.5 min 2.5 min 2.5 min
5 min 5 min 5 min 5 min 5 min 5 min 5 min 5 min 5 min 5 min 5 min 5 min 5 min 5 min 5 min 5 min 5 min 5 min 5 min 5 min 5 min 5 min 5 min 5 min 5 min 5 min
2.5 min 2.5 min 2.5 min
Auto
C 3 - C 1 (C 3 - C 4 )
Timed
C 3 - C 2 (C 3 -C 5 )
stat select
A 9 - A 1 1 (A 1 - A 2 )
*1 *1 *1
*1
Timer & Motor
A 1 - A 3 (B 3 - B 4 )
Buzzer
B 1 0 - B 1 1 (B2 - B1)
Heater
B 3 - B 1 (A4 - A 5 )
Note *1: the program me cam should advance to the next step before the timer stops
14
REVERSING TIMER SEQUENCE CHART
switch
switch
no.
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 4 3 44 45 46 47 48 49 50 51 52 53 5 4 55 5 6 57 5 8 59 6 0
1 to 2 secs - > < - - - - - - - 148 seconds +/-2 - - - - - - - - - - - >: < - 1 to 2 seconds
motor cw a - a1
motor acw a - a0
< - - - - - - - - - - - - - - - - - - - - - - - - 300 seconds - - - - - - - - - - - - - - - - - - - - - - - - - - - >
