5 sErvicEability
Service Manual
Yate Production Dryers
Edition
2006.09.21

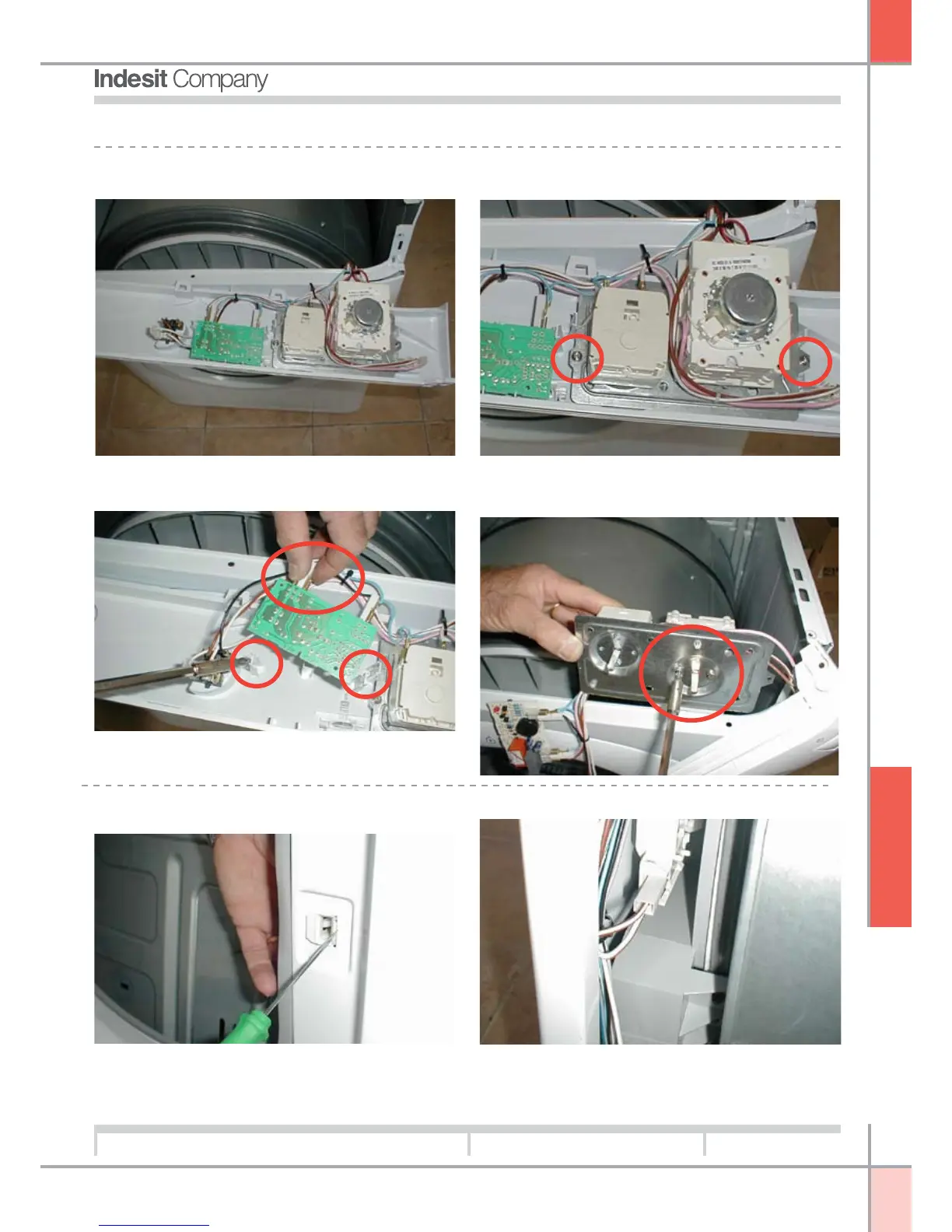

5.5.2 DISASSEMBLY OF VENTED DRYER COMPONENTS
a) Removal of timer, programmer - door interlock
relay and switches
1. Detach the control panel and remove the two
screws securing the angle bracket
3. Detach the two timers, undoing the screws that
secure them to the bracket
b) Removal of door microswitch
1. Remove the left hand side panel
3. Remove the switch from the inside of the front
panel
2. Release the clip holding the switch block to the
front panel
2. Release the two clips on the PCB and unplug the
connectors
