Indesit ISL70CEX - CONDENSER MODELS with Sensing Brush

En
38
Language
English
4 wiring diagrams
Service Manual
Yate Production Dryers
Edition
2006.09.21

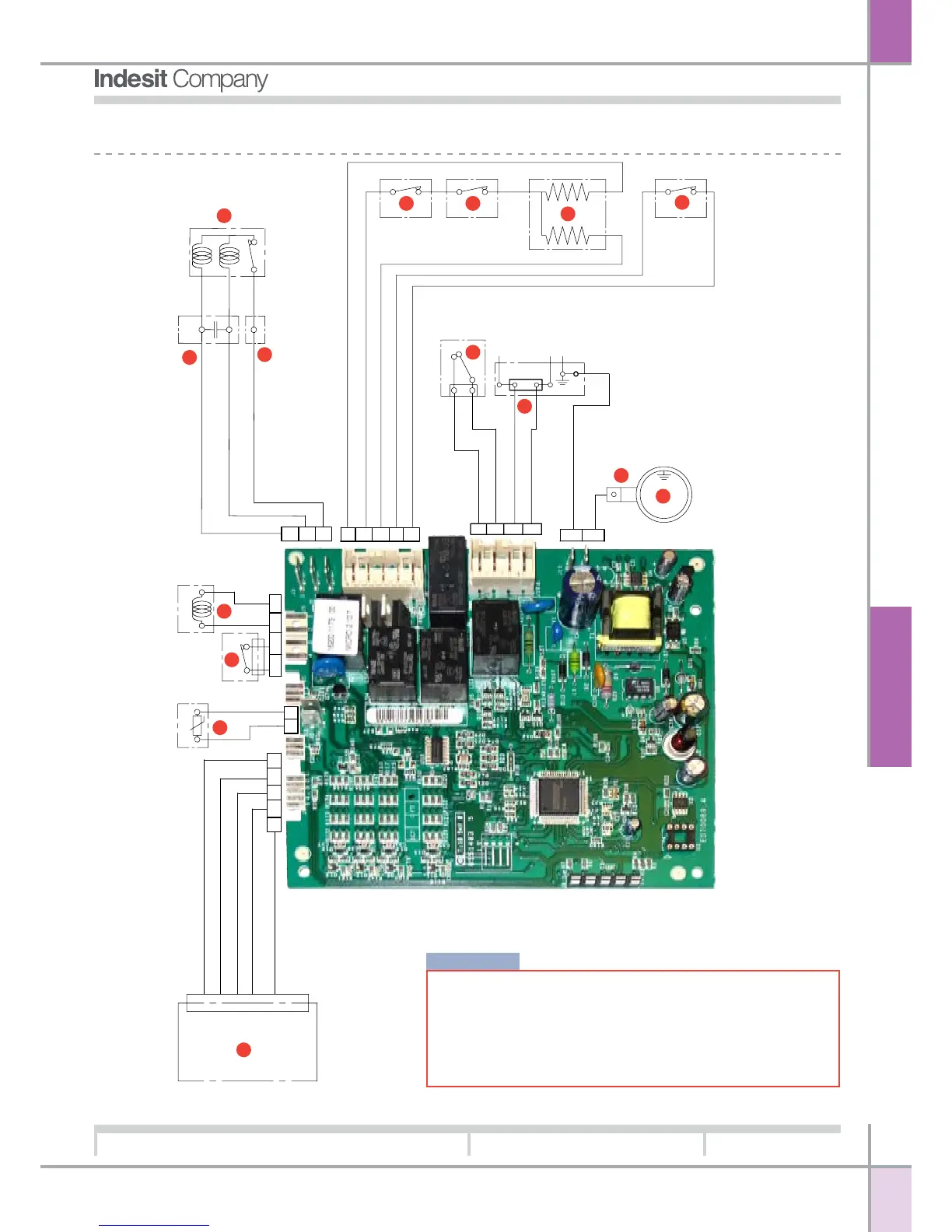

4.5 CONDENSER MODELS WITH SENSING BRUSH
Legend:
A User interface PCB
B Front NTC sensor
C Float switch
D Pump
E Capacitor
F Motor with overload cutout
G Spade terminal
H One-shot thermostat
I Resettable thermostat
J Upper and lower heating elements
K NTC sensor
L Connection to a.c. supply with sup-
pressor
M Door switch
N Sensing brush
O Drum assembly
5 4 3 2
1
2
1
2
1
43
2
1
543
2
1 3
2
1
J11
J12
J10
J4
J3
J9
J5
4 3
2
1
J12
A
B
C
F
G
D
H I
L
J
E
E
N
L
K
N
O
M
