5 sErvicEability
Service Manual
Yate Production Dryers
Edition
2006.09.21

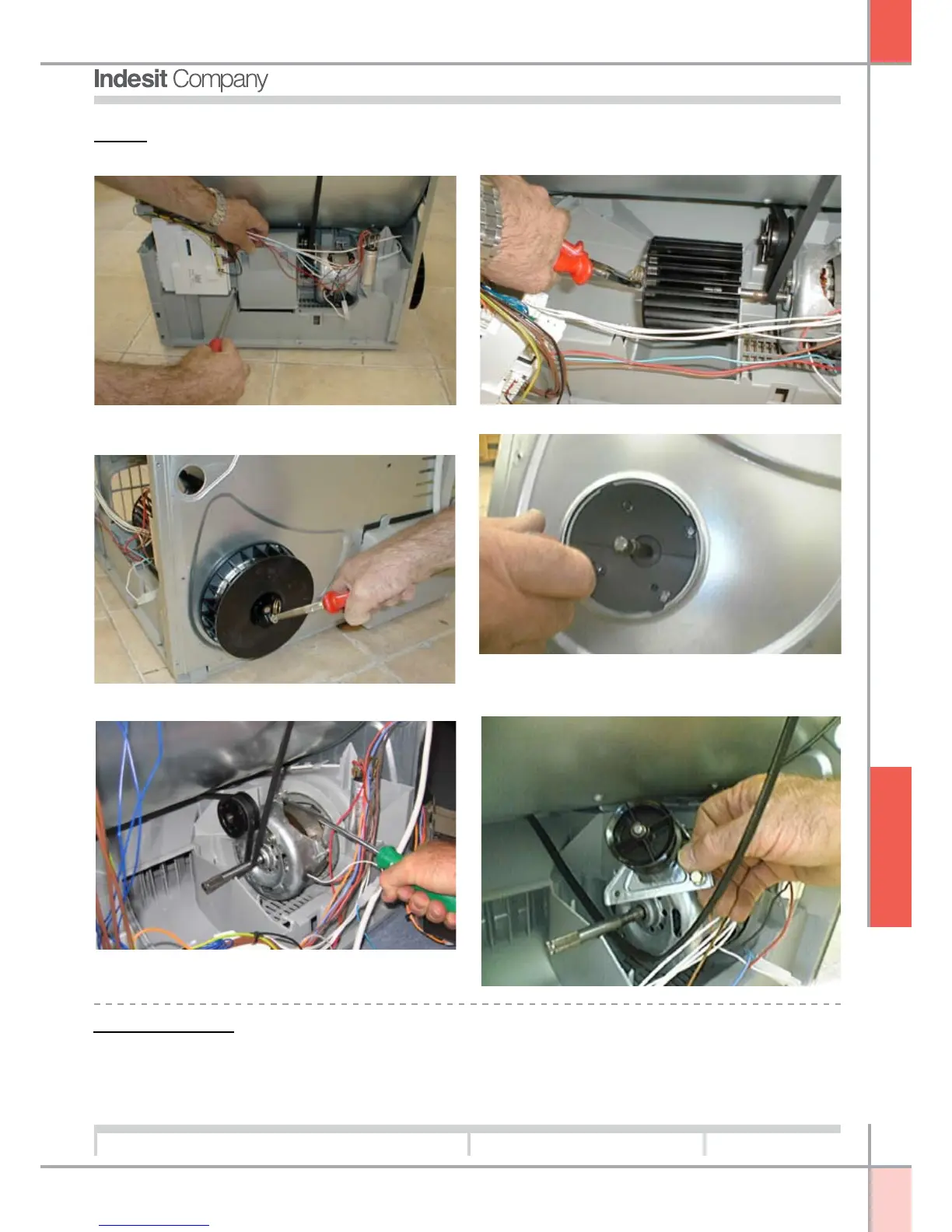

Motor
1. Detach the Rx SIDE PANEL
4. Release the motor from the panel, removing the
4 bolts
2. Detach the front fans, removing the relative guard (the
mainboard must be removed)
3. Detach the rear fan
5. Lift the motor from the base, slip off the belt and
remove the tension idler
Drum assembly
Disassembly:
1. Top
2. Side panels
3. Control panel
4. Front panel
5. Air duct
6. Rear bearing
7. Detach motor
8. Remove drive belt
9. The drum can now be separated
from the rear panel
