3 componEnts
Service Manual
Yate Production Dryers
Edition
2006.09.21
The function of the front thermostats is to discon-
nect a heating element when the temperature set
point is reached
•
Indesit condenser dryers - thermostat opens at
78 °C
•
Ariston vented dryers - equipped with 2 ECO
thermostats; in effect, the machine operates 3
automatic programmes. The setting for the half
load thermostat is 60 °C; the setting for the full
load thermostat is 55 °C. The third automatic
programme is controlled by the timer
•
Indesit vented dryer - This has just one thermo-
stat that opens at 58 °C to deactivate one heating
element, then closes to reactivate the element
when the temperature drops

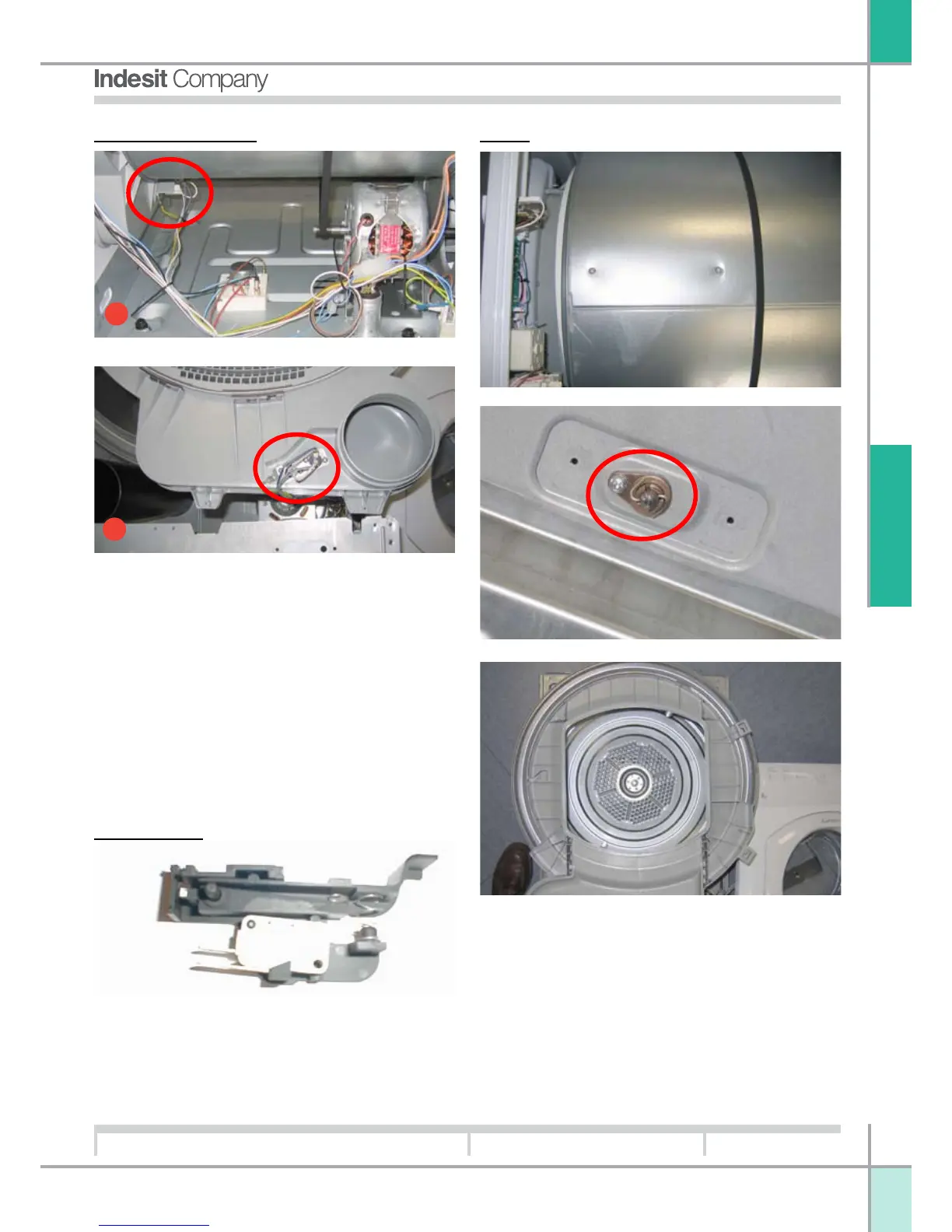

Front thermostats
Location of ECO/Energy Save thermostats
The drum is composed of a galvanized front
section, a rear section, and two removable plastic
paddles. The rear section of drum is pierced to admit
the flow of air. The back of the drum is carried by a
shaft that turns in a friction bearing incorporated into
the rear panel of the dryer. A collar and locking pin
on the shaft of the drum combine to prevent forward
axial movement during operation.
This is a normally open single pole microswitch ac-
tivated by a catch when the door is closed. It is the
first switch in the electrical circuit, and accordingly,
rated to match the full load current of the product
(10 ampères approx).
Drum
Door switch
1
2
