Indesit ISL70CEX - VENTED MODELS with Sensing Brush

En
36
Language
English
4 wiring diagrams
Service Manual
Yate Production Dryers
Edition
2006.09.21
Legend:
A User interface PCB
B Front NTC sensor
C Capacitor
D Spade terminal
E Motor with overload cutout
F One-shot thermostat
G Resettable thermostat
H Upper and lower heating elements
I NTC sensor
J Door switch
K Connection to a.c. supply with suppressor
L Sensing brush
M Drum assembly

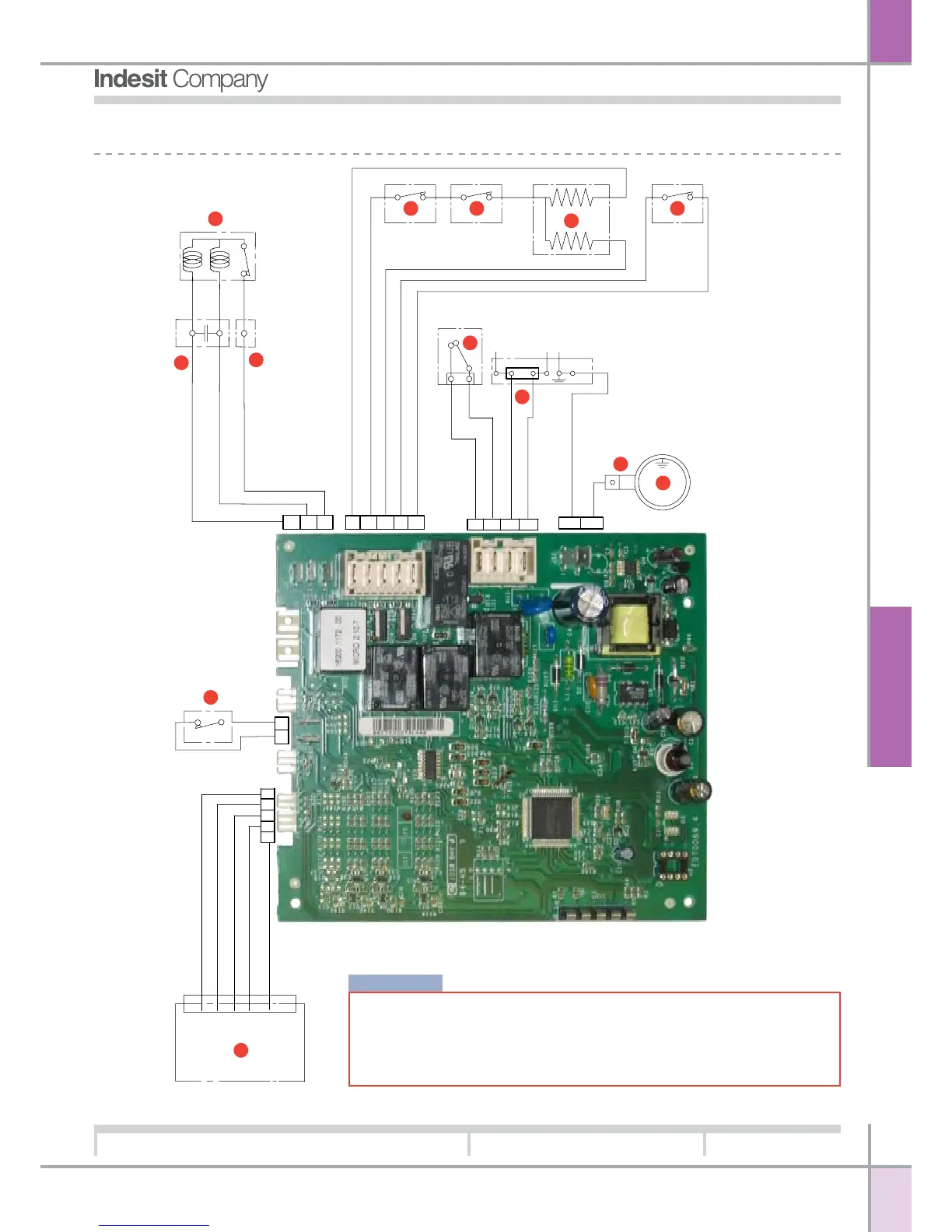

4.3 VENTED MODELS WITH SENSING BRUSH
5
4 3 2
1
2
1
3
2
1
J12
J3
J9
43
2
1
543
2
1
J11
J10
J4
2
1
A
B
C
F
G
D
H
M
I
L
J
E
K
E
N
L
