5 sErvicEability
Service Manual
Yate Production Dryers
Edition
2006.09.21

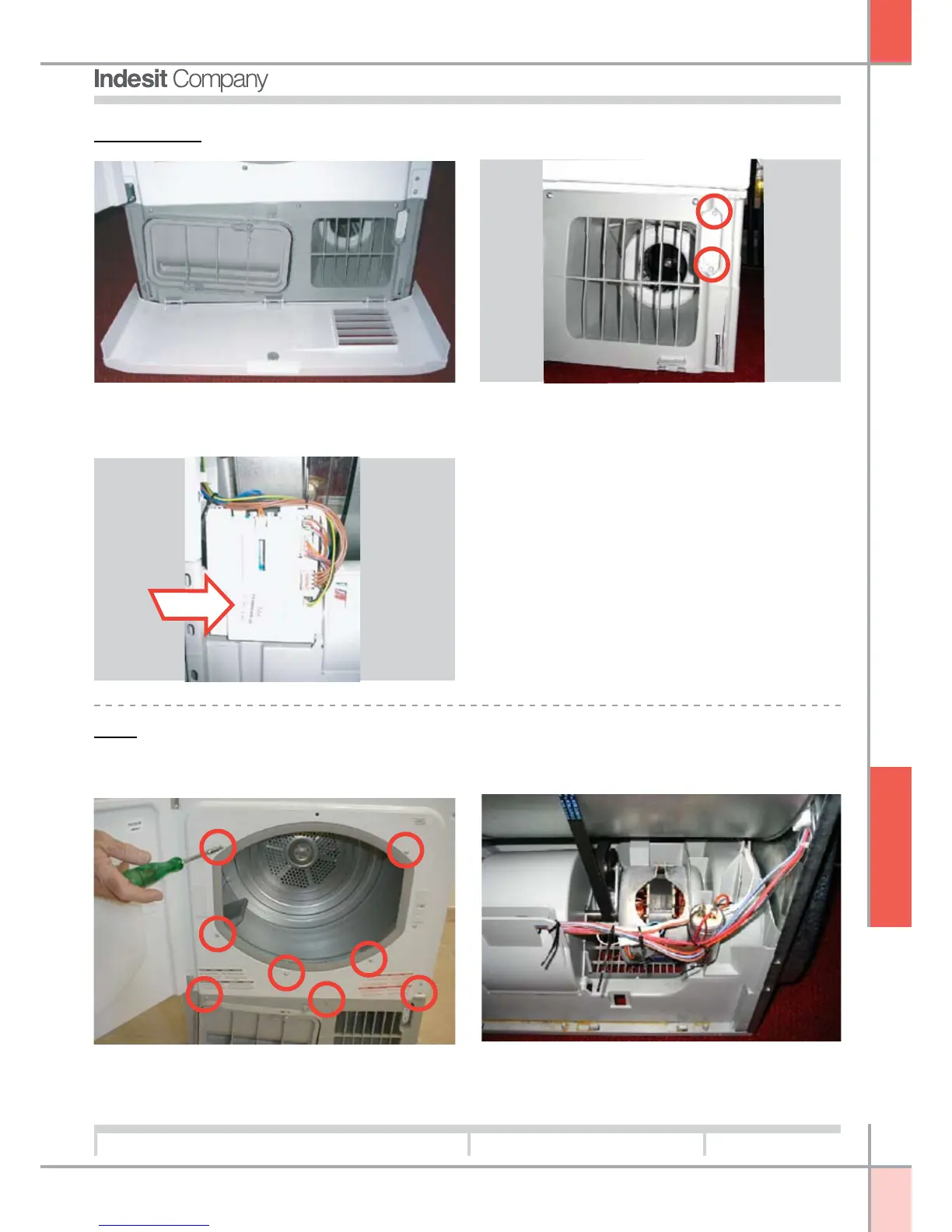

Power PCB:
2. Remove the Rx panel
Detach the cowl from the front fan so that the PCB
is able to pass
Remove the 2 fixing screws at the front
1. Remove the top
Lower the plinth, and remove.
2. Detach the front panel, undoing the screws as
illustrated
3. Detach the front fan, freeing it from the guard
Belt:
1. Detach the top, sides and control panel
To Next Page
