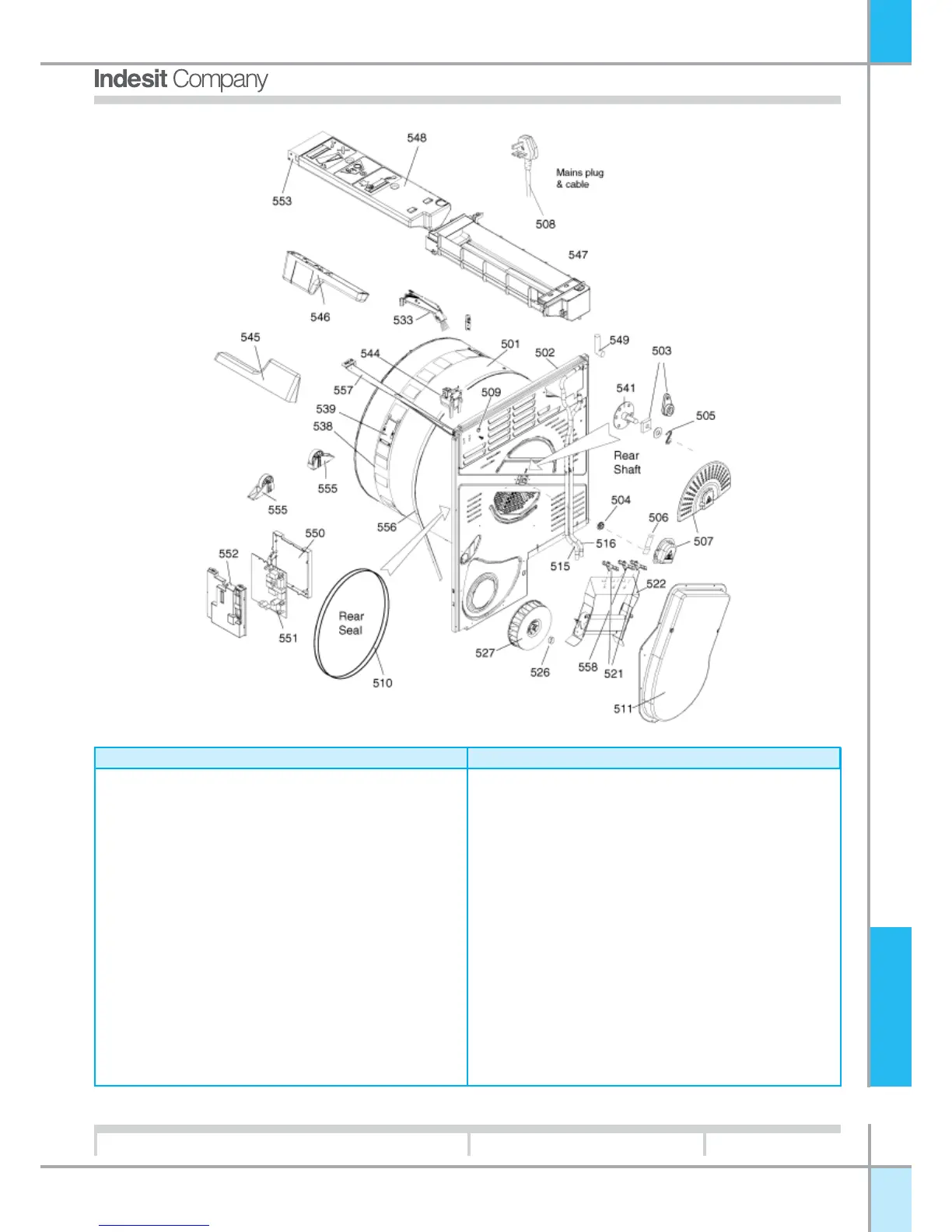

6 ExplodEd drawings
PRG,6/&(;SDJH
%7DYROH
ISL70CEX
Ref. Description
Ref. Description
501 DRUM, ALE70CFR DRYER
501 DRUM, CONDENSER DRYER
502 REAR PANEL SEAL
502 REAR PANEL, CONDENSER DRYER
502 PAD, REAR PANEL
502 REAR PANEL+BEARING, CONDENSER DRYER
503 REAR BEARING
503 REAR BEARING
504 COLLAR
505 LOCKING PIN
506 EARTH CLIP
506 M3X6 SCREW
507 COVER, REAR BEARING
507 PLASTIC COVER, REAR BEARING
508 POWER CABLE
509 CABLE GLAND
510 DRUM REAR SEAL
510 DRUM REAR SEAL 16MM
511 HEATER HOUSING
515 HOSE, PUMP/WATER TRAY
515 HOSE CLIP
516 DRAIN HOSE
521 THERMOSTAT KIT (ONE SHOT+CYCLING)
522 HEATER UNIT (ELTH ONE SHOT+CYCLING+NTC)
522 HEATER UNIT (TOD ONE SHOT+CYCLING+NTC)
522 HEATER UNIT (TOD ONE SHOT+CYCLING+NTC)
526 CLIP
527 ALE70CFR FAN
533 BRUSH MOUNTING
533 SENSING BRUSH
538 SENSING STRIP INSULATION
539 SENSING STRIP
541 DRUM SHAFT
544 SCREW
544 NOISE FILTER
545 CRADLE, DRYER DRUM
545 CRADLE, DRYER DRUM
546 SENSING BRUSH MOUNT
547 ALE70CFR WATER TRAY HOLDER
548 ALE70CFR WATER TRAY
549 ELBOW, ALE70CFR WATER TRAY
551 MAGNETIC CONNECTION KIT
551 NO EEPROM PCB, CONDENSER DRYER
551 EEPROM, ISL70CEX EVOII SW 28306240010
551 EEPROM, ISL70CEX EVOII SW 28306240009
551 EEPROM, ISL70CEX EVOII SW 28306240011
551 EEPROM, ISL70CEX EVOII SW 28306240008
553 ALE70CFR WATER TRAY ADAPTER
555 DRUM WHEEL - SEE N1040358
556 BELT
556 BELT
557 RX SIDE MEMBER
558 ELTH NTC THERMOSTAT
558 TOD NTC THERMOSTAT
