InFocus IN3136a - Projector Controls and Indicators; Top View Controls and LEDs

— 3 —

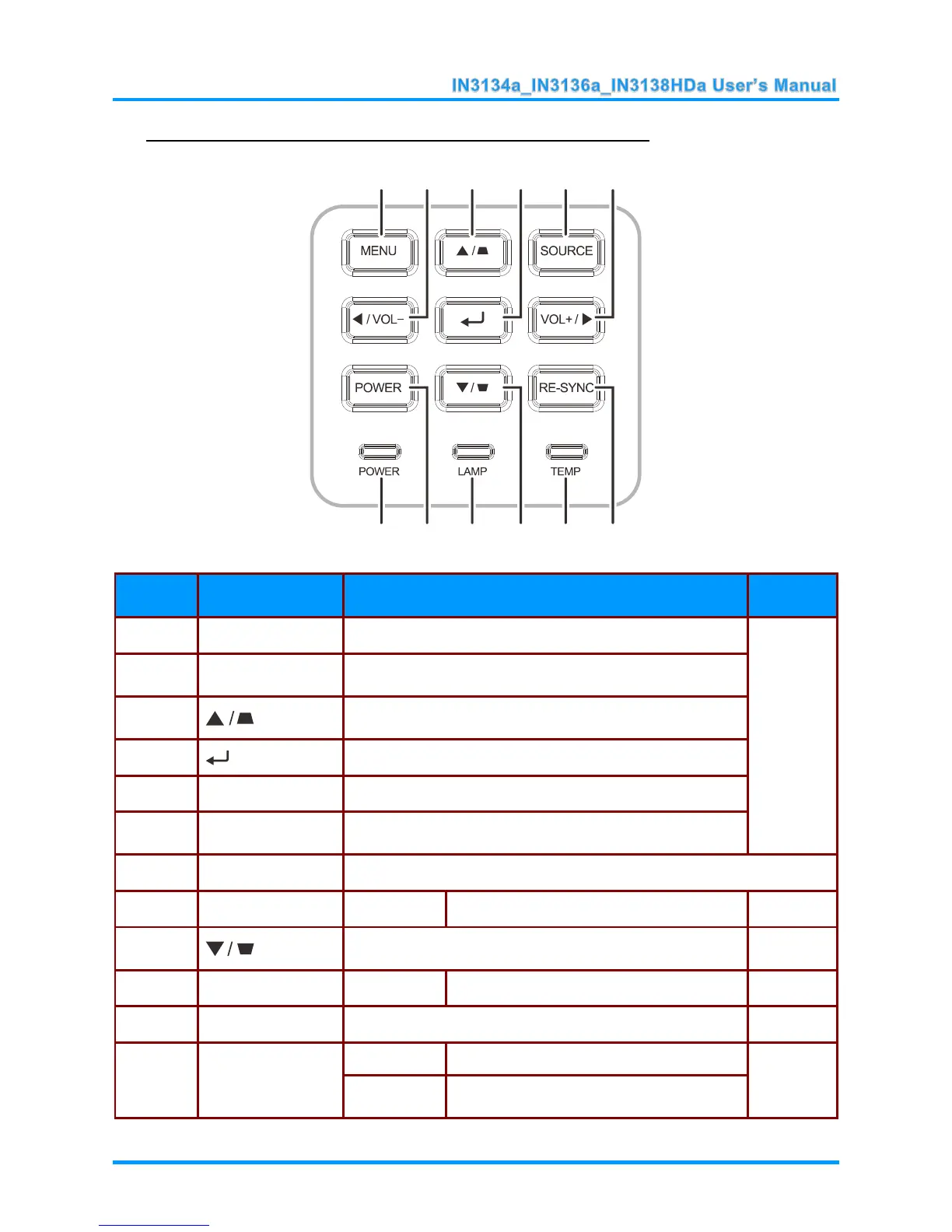

Top view—On-screen Display (OSD) buttons and LEDs
ITEM
LABEL
DESCRIPTION
SEE PAGE
1.
Menu
Open and exit OSD menus.
16
2.
◄ / VOL-
Navigate and change settings in the OSD.
Quick Menu – For Volume
3.
Navigates the OSD.
Quick Menu – For Keystone
4.
Enter or confirm highlighted OSD menu item.
5.
SOURCE
Enter the Source menu.
6.
VOL+ / ►
Navigate and change settings in the OSD.
Quick Menu – For Volume
7.
RE-SYNC
Automatically synchronizes the projector to the input source.
8.
TEMP LED
Red
Overheating
49
9.
Navigates the OSD.
Quick Menu – For Keystone
16
10.
LAMP LED
Blinking Red
Error code
49
11.
POWER
Turns the projector On or Off.
16
12.
POWER LED
Green
Lamp On
49
Blinking
Green
Powering up, powering down or error code.
3
1 2
6
4 5
1012 11 79
8
