InFocus IN3136a - Projector Rear Connections; Rear Panel Ports

— 4 —

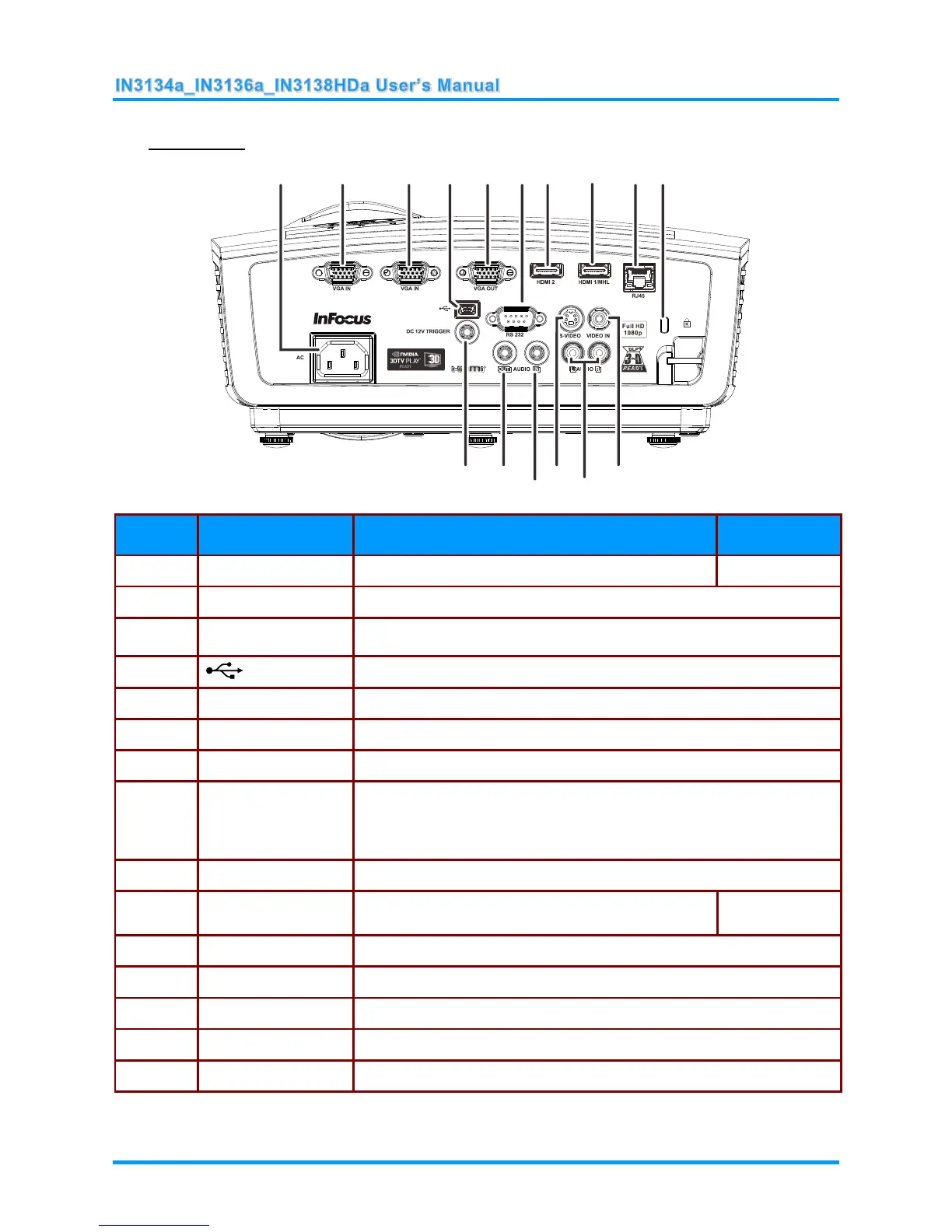

Rear view
ITEM
LABEL
DESCRIPTION
SEE PAGE
1.
AC IN
Connect a POWER cable.
10
2.
VGA IN
Connect a RGB cable from a computer.
3.
VGA IN
Connect a RGB cable from a computer.
4.
(USB)
Service use only.
5.
VGA OUT
Connect a RGB cable to an external monitor/display.
6.
RS-232C
Connect a RS-232 serial port cable for remote control.
7.
HDMI2
Connect an HDMI cable from a HDMI device.
8.
HDMI1/MHL
Connect the HDMI cable from a HDMI device.
Connect the MHL cable from a MHL-compatible device.
Note: For some MHL compatible devices, whose output is not thru
micro-USB, an extra cable adaptor may be required.
9.
RJ45
Connect a LAN cable from Ethernet.
10.
Kensington Lock
Secure to a permanent object with a Kensington®
Lock system.
47
11.
VIDEO IN
Connect a COMPOSITE cable from a video device.
12.
AUDIO IN (L and R)
Connect an AUDIO cable from an audio device.
13.
S-VIDEO
Connect a S-VIDEO cable from a video device.
14.
AUDIO IN
Connect an AUDIO cable from an audio device.
15.
AUDIO OUT
Connect an AUDIO cable to an audio amplifier.
1 2
10
3
4 5 6 7 8 9
11
12
13
14
1516
