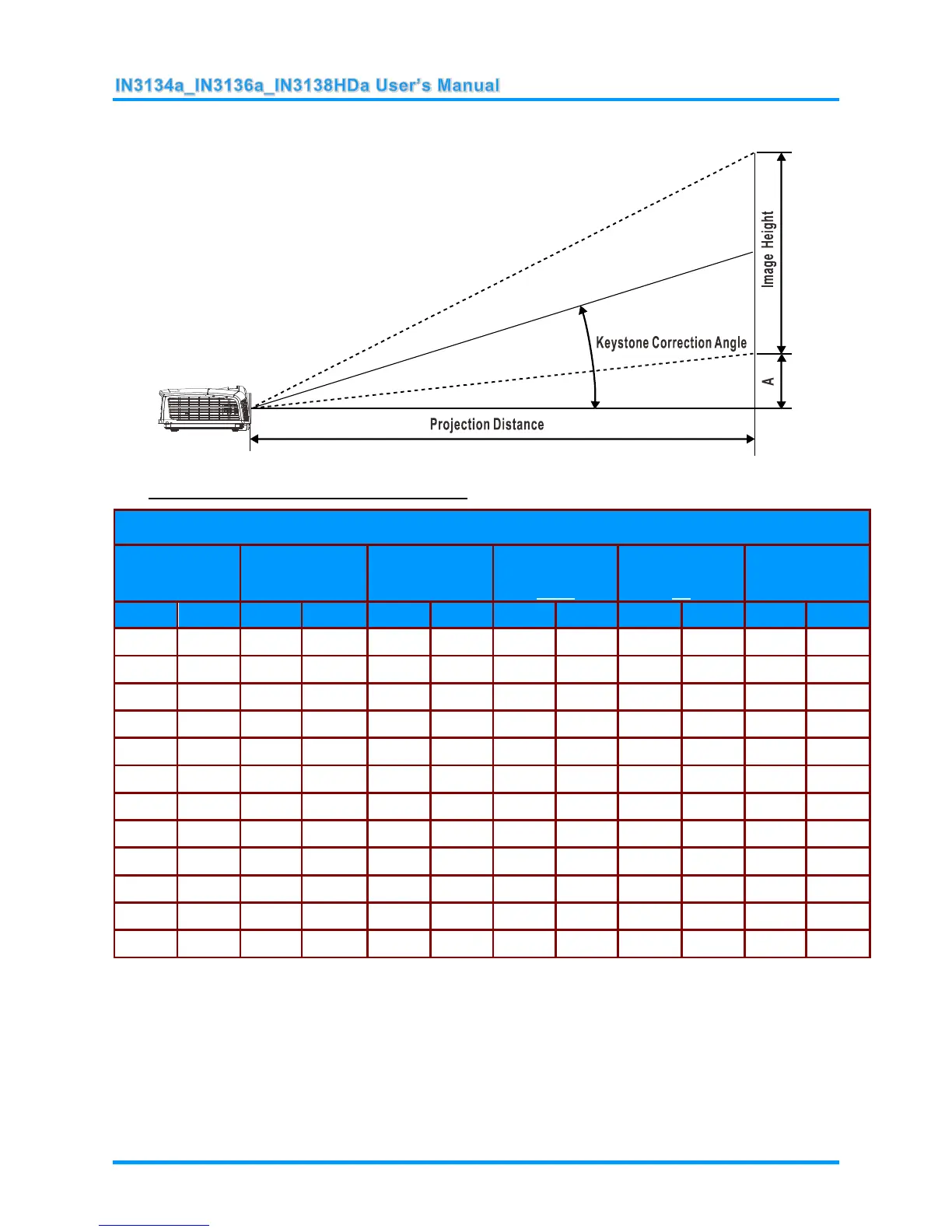

Projection Distance vs. Projection Size (XGA)
Projection Distance and Size Table
IN3134a
IMAGE DIAGONAL
IMAGE WIDTH
IMAGE HEIGHT
PROJECTION
DISTANCE
FROM
PROJECTION
DISTANCE
TO
OFFSET-A
MM
INCH
MM
INCH
MM
INCH
MM
INCH
MM
INCH
MM
INCH
1,524
60
1,219.2
48.0
914.4
36.0
2,231.1
87.8
3,352.8
132.0
128.0
5.0
1,778
70
1,422.4
56.0
1,066.8
42.0
2,603.0
102.5
3,911.6
154.0
149.4
5.9
1,829
72
1,463.0
57.6
1,097.3
43.2
2,677.4
105.4
4,023.4
158.4
153.6
6.0
2,032
80
1,625.6
64.0
1,219.2
48.0
2,974.8
117.1
4,470.4
176.0
170.7
6.7
2,134
84
1,706.9
67.2
1,280.2
50.4
3,123.6
123.0
4,693.9
184.8
179.2
7.1
2,286
90
1,828.8
72.0
1,371.6
54.0
3,346.7
131.8
5,029.2
198.0
192.0
7.6
2,438
96
1,950.7
76.8
1,463.0
57.6
3,569.8
140.5
5,364.5
211.2
204.8
8.1
2,540
100
2,032.0
80.0
1,524.0
60.0
3,718.6
146.4
5,588.0
220.0
213.4
8.4
3,048
120
2,438.4
96.0
1,828.8
72.0
4,462.3
175.7
6,705.6
264.0
256.0
10.1
3,429
135
2,743.2
108.0
2,057.4
81.0
5,020.1
197.6
7,543.8
297.0
288.0
11.3
3,810
150
3,048.0
120.0
2,286.0
90.0
5,577.8
219.6
8,382.0
330.0
320.0
12.6
5,080
200
4,064.0
160.0
3,048.0
120.0
7,437.1
292.8
11,176.0
440.0
426.7
16.8
