InFocus IN3136a - Projector Bottom View; Mounting and Tilt Adjustor

— 6 —

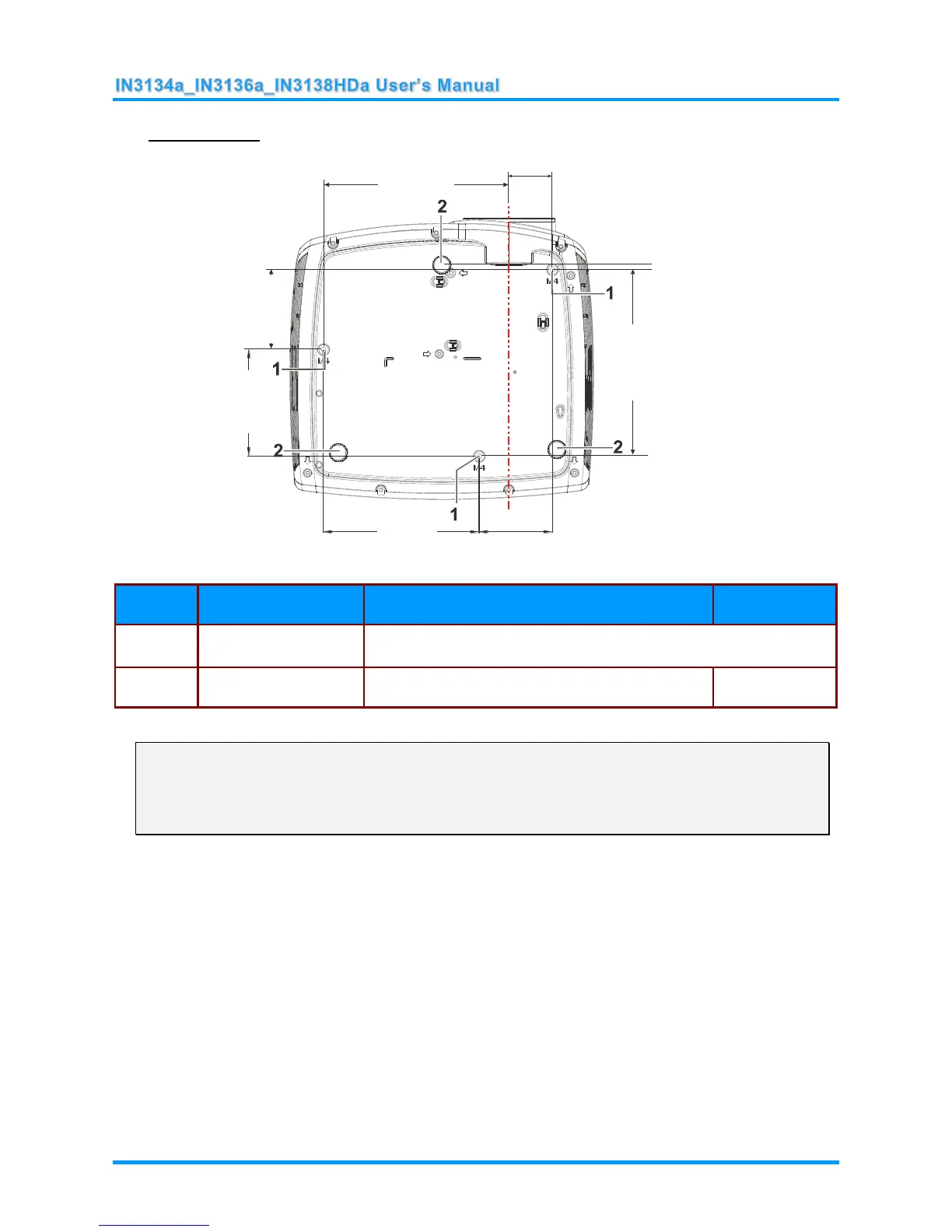

Bottom view
ITEM
LABEL
DESCRIPTION
SEE PAGE
1.
Ceiling support holes
Contact your dealer for information on mounting the projector on a
ceiling.
2.
Tilt adjustor
Rotate adjuster lever to adjust angle position.
14
Note:
If you are installing the projector on the ceiling, we strongly recommend using InFocus approved
ceiling mounts for proper fitting, ventilation and installation. Refer to the installation guide that
comes with the InFocus Ceiling Mount kit for more information. The warranty does not cover any
damage caused by use of non-approved ceiling mount kits or by installing in an improper location.
100.0mm
146.0mm
68.7mm
75.0mm
175.0mm
173.9mm
40.8mm
4.5mm
(6.89inch)
(3.94inch)
(2.95inch)
(0.18inch)
(5.75inch)
(2.70inch)
(6.85inch)
(1.61inch)
