X1 Service Guide 11
Assembly Notes
♦ Make sure the shield isn't bent and that the fingers on the shield will contact the bottom housing on
the optical engine when it's replaced.

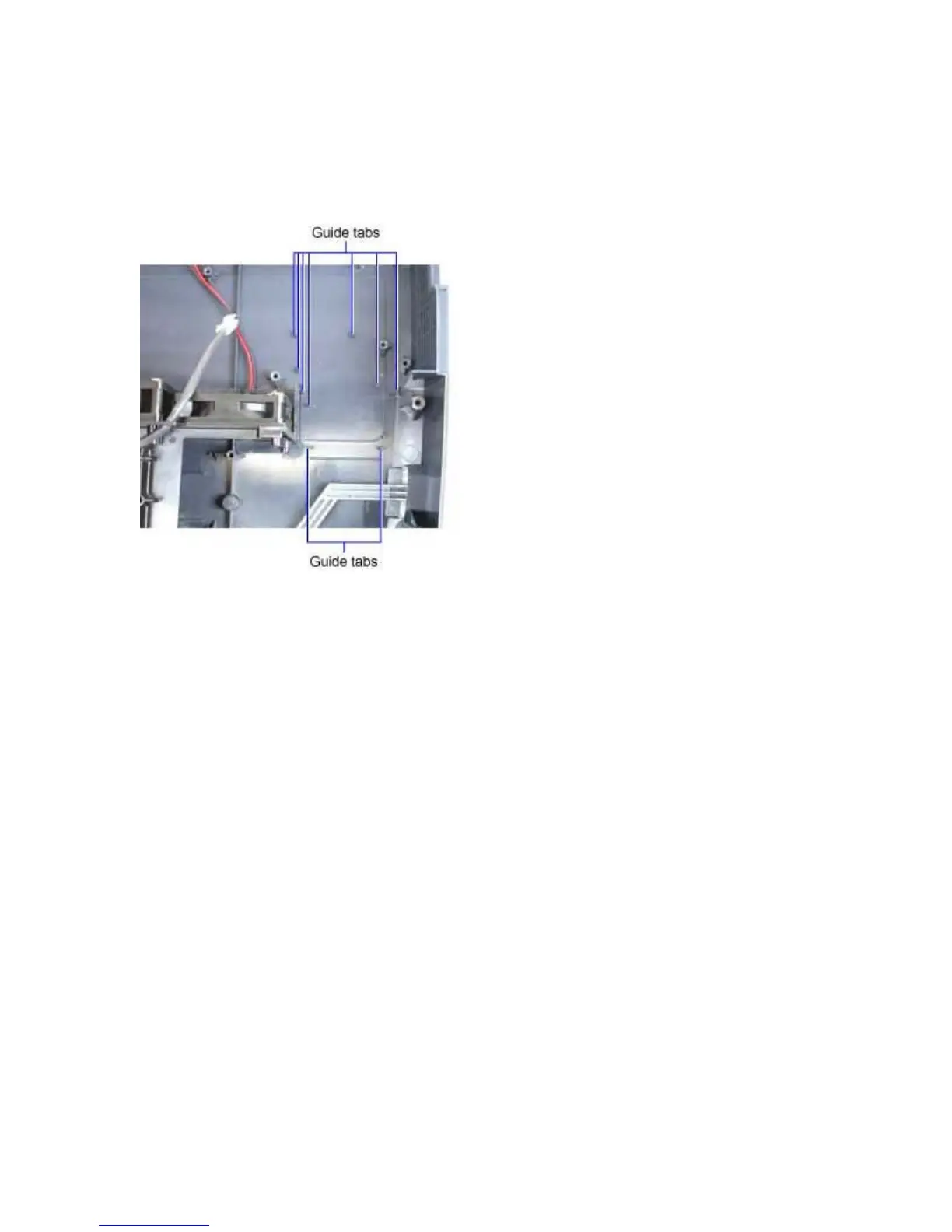

♦ Position the bottom EMI shield between the guide tabs on the bottom case. Then press the shield into
position to secure it in the bottom case.
